Product Details:
|
| Material: | Carbon Steel,Carbide | Use: | Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing Drilling Bit, Overburden Casing Drilling System | Machine Type: | Drilling Equipment |
| Processing Type: | Forging,Machining Process | Product Name: | Odex Drilling System |
| Color: | Gold,Required,Yellow,Red | Application: | Construction |
| Usage: | Hole Drilling,Mining&Construction&Water Well Drilling | Advantage: | High Performance,High-efficiency |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | Concentric Overburden Casing Drilling System |
| Item: | Overburden Casing Drilling System | Hammer Type: | DHD3.5 DHD340 DHD350 DHD360 DHD380 DHD110 DHD112,SD-6,QL60 |
| Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat | Advantages: | High Strength,High Performance |
| High Light: | 125mm Symmetrix Casing Drilling System, MSX Overburden Casing Drilling System, Eccentric Casing Drilling System | ||

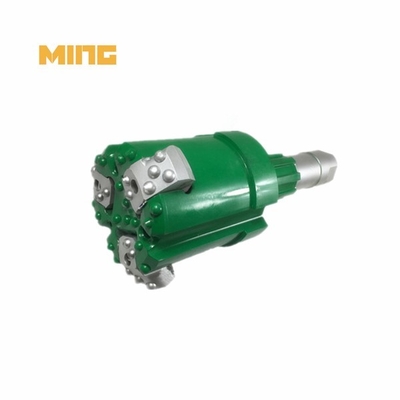

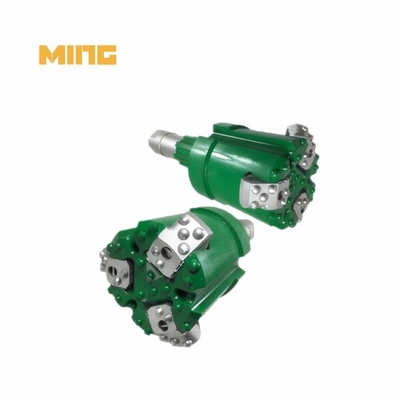

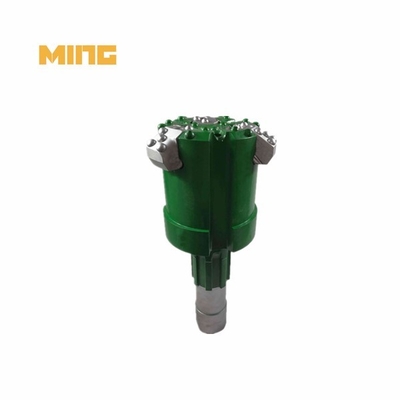

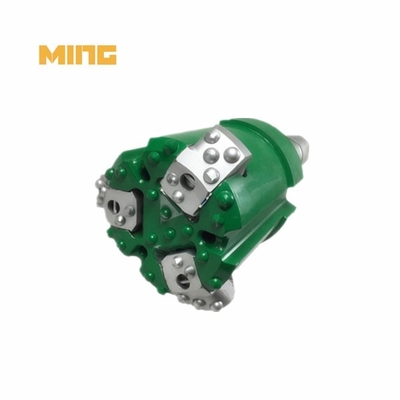

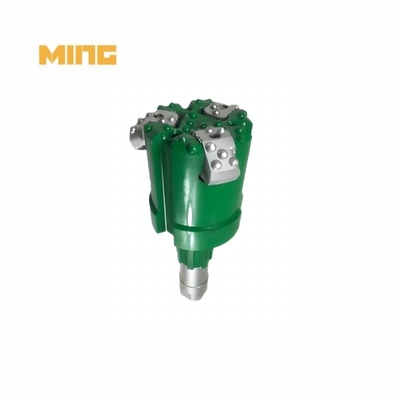

Product name: 125mm MSX90 Overburden Symmetrix Casing Drilling System Bit with slide block For Drilling Rig Equipment
Product category: Concentric casing drilling tools
Matched hammer: Hammer DHD3.5
Matched casing pipe OD: 90mm
Kingdrilling MSX slide block under reaming drilling system details:
Rock drill tools factory KINGDRILLING professionally produce Concentric drilling systems such as slide block drilling bit by down the hole hammer which are designed to drill and case a hole simultaneously through unstable ground conditions. Wing Block casing drilling system is consists of pilot bit and slider blocks.
Before drilling, the system press down, and the slider bit open to carry casing tube into the hole to protect wall. After finished, the wings will be closed trough lifting system. This system is efficient for casing tube from 114-273mm in diameter.
Perhaps the most impressive attribute of the MSX overburden casing drilling system bit is its superior performance. It boasts an outstanding drilling speed, guaranteeing efficient and swift drilling operations. With this MSX bit at your disposal, you can complete your projects in record time while maintaining a consistently high level of performance.
Technical date:
| Model | Hole dia (mm) | Weight(KG) | Closed dia. (mm) | Pilot dia. (mm) | length (mm) | Case dia. (OD*ID) | Spline |
| MK-MSX90 | 125 | 16 | 90 | 100 | 360 | 114*102 | MACH33,DHD3.5 |
| MK-MSX115 | 155 | 30 | 115 | 125 | 510 | 139*127 | DHD340,SD4.QL4 |
| MK-MSX140 | 188 | 52 | 140 | 151 | 570 | 168*153 | DHD350,SD5,QL5 |
| MK-MSX165 | 215 | 95 | 166 | 178 | 690 | 194*181 | DHD360,SD6,QL6 |
| MK-MSX190 | 238 | 108 | 190 | 203 | 690 | 219*206 | DHD360,SD6,QL6 |
| MK-MSX215 | 276 | 140 | 215 | 236 | 720 | 254*240 | DHD380,SD8,QL8 |
| MK-MSX235 | 293 | 160 | 236 | 251 | 730 | 273*254 | DHD380,SD8,QL8 |
| MK-MSX240 | 293 | 168 | 241 | 256 | 730 | 273*260 | DHD380,SD8,QL8 |
How to order:
Casing Tube OD + Casing Tube ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style.
Application:
Mining, Quarrying, Tunneling, Construction, Geological Exploration, Water-well Drilling, Oilfield & Gas Industries.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
3. What is the general delivery time?
15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
4. Competitive price:
A:KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor!
5. How to choose the suitable head face of the DTH drill bit?
a. Concave:
Suitable for all kinds of formation, especially for deep well drilling, perpendicularity of the hole is wonderful.
b. Convex:
Suitable for the formation of moderate hardness stratum, drilling efficiency is good, borehole perpendicularity is moderate.
c. Flat:
Suitable for special hard formation stratum, especially for fracture, crack spacing and complex formation drilling effect is very good, has the good perpendicularity of the borehole.
