Product Details:
|
| Material: | Carbon Steel,Carbide | Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Drilling Equipment |
| Processing Type: | Machining Process | Product Name: | Concentric Casing System |
| Color: | Gold,Required,Yellow,Red | Application: | Construction,water Well Drilling |
| Usage: | Hole Drilling,Mining&Construction&Water Well Drilling | Advantage: | High Performance,Widely Used Hard Rocks And Have Good Penetration |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | ODEX System (Overburden Casing System) |
| Item: | Drilling Hammer Bit Eccentric Overburden Systems,Overburden Drilling Casing System | Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat |
| Advantages: | High Performance,High Quality And Factory Prices | ||
| High Light: | OEM Dth Drilling Tools, 610MM Dth Drilling Tools, 610MM Ring Bit Drilling System | ||

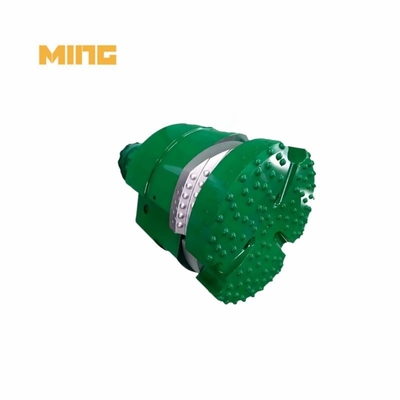

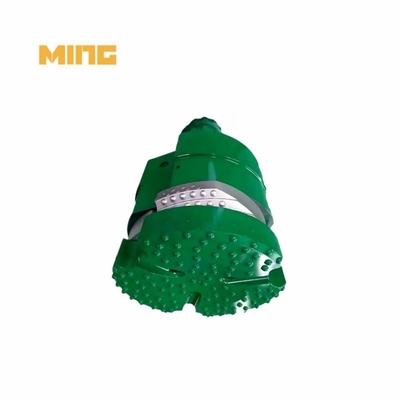

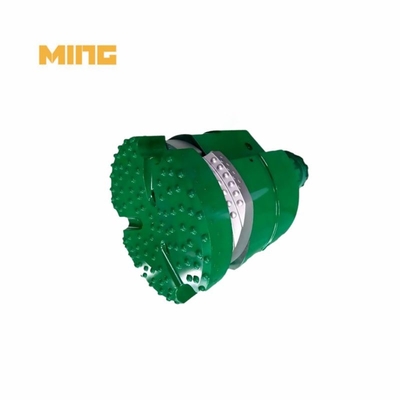

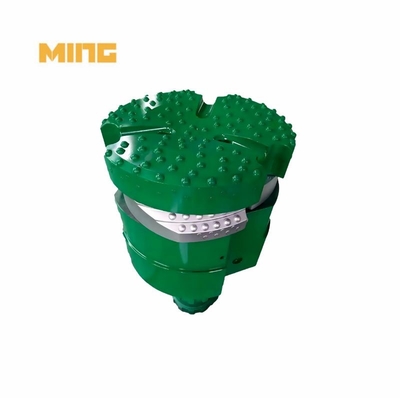

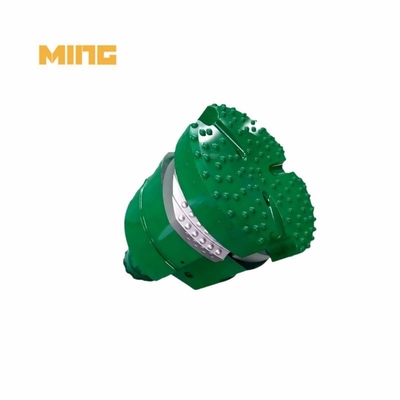

Product name: 610mm MXH Horizontal Casing Drilling System Bit With Slide Block For Tunneling
Product category: horizontal casing drilling bit
Matched hammer: Hammer N180
Matched casing pipe OD: 610mm
MXH horizontal casing drilling bit are designed for economic cost of drilling in simultaneous casing advancement.
MXH Bit - the ultimate companion for your drilling needs. Featuring a surface with hardening treatment, MXH bit offers an extended operating life and exceptional anti-wear properties. Its structural optimization not only enhances the strength of the bit but also ensures effortless operation.
With superior performance at its core, MXH Bit guarantees high drilling speed, enabling you to complete your tasks efficiently. Its stable and reliable performance empowers you to tackle any drilling project with confidence.
Invest in the MXH Bit, and experience the difference it brings to your drilling endeavors. Its hardened surface, extended longevity, and excellent anti-wear properties make it a truly dependable tool. The structural optimization not only ensures enhanced strength but also makes operating the drill bit a breeze.
Achieve outstanding results with the MXH Bit's superior performance. Benefit from its high drilling speed and the stability it offers, allowing you to complete your projects swiftly and consistently.
NMXH horizontal casing drilling bit advantage:
1. Save Time and Cost.
2. Reduce Formation Exposure Time.
3. Overcome Challenging Drilling Zones.
4. Improve Hole Cleaning.
5. Wellbore Strengthening.
MXH horizontal casing drilling bit technical parameters:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MXH610/560-N180 | 635 | 610*584 | N180 |
| MXH813/750-N240 | 838 | 813*780 | N240 |
| MXH1020/940-N240 | 1090 | 1020*994 | N240 |
How to order:
Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Other size of MXH system is available upon customer's request
NMXH horizontal casing drilling bit instruction:
1. Pilot bit
2. 3 wings
3. shank bit
FAQ:
1. What is horizontal directional drilling method?
Horizontal Directional Drilling (HDD) is a construction technique whereby a tunnel is drilled under a waterway or other designated area, and a pipeline or other utility is pulled through the drilled underground tunnel.
2. What are the different types of horizontal directional drilling?
Horizontal directional drilling machines are divided into three categories large-diameter HDD (maxi-HDD), medium-diameter HDD (midi-HDD), and small-diameter HDD (mini-HDD). There is no significant difference in the operation of these systems.
3. How far can you drill horizontally?
Maximum lengths and hole diameters are determined by project specific geotechnical conditions however effective outside range for heavy rig horizontal directional drilling is 3,000 m (9,843 ft).
4. How accurate is horizontal directional drilling?
The accuracy of the tool is 0.01° in pitch and 0.04° in azimuth. At the same time the tool is not affected by magnetic fields from for example railways and cables.
5. How does horizontal drilling do less damage to landscape?
Horizontal directional drilling is a trenchless option that is increasingly being used to reduce environmental impact. You can preserve lawns and landscaping intact by using horizontal drilling. This is ideal for more sensitive, well-kept areas, such as golf courses.
