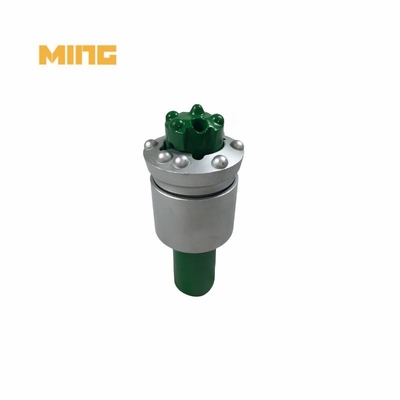

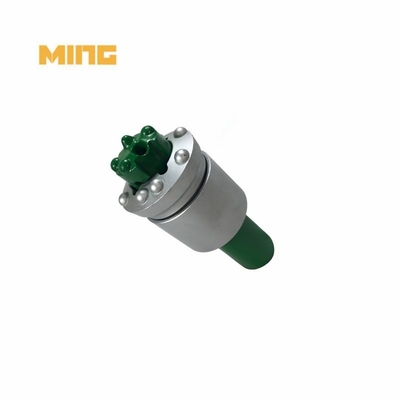

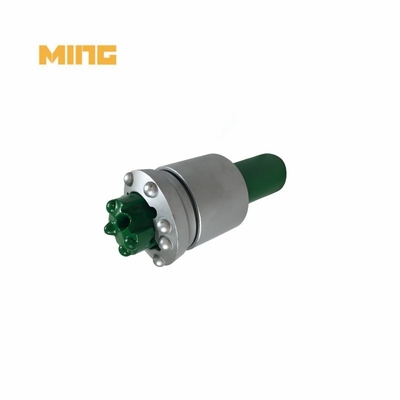

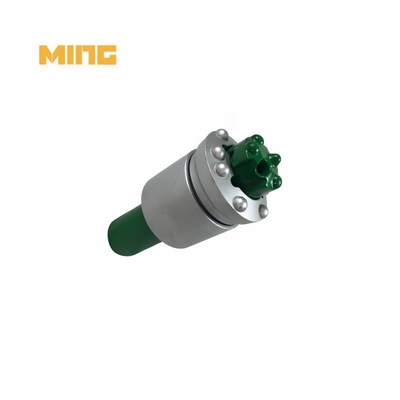

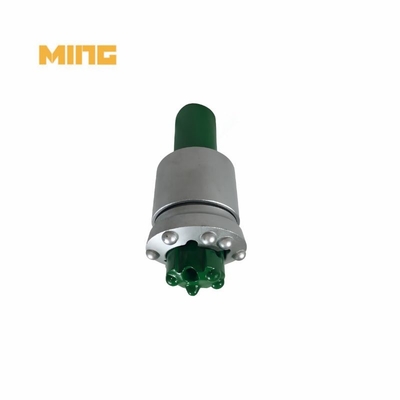

89mm Mring Overburden Symmetric Casing Drilling System Bits With Casing Shoe For Mining

Product name: 89mm Mring Overburden Symmetric Casing Drilling System Bits With Casing Shoe For Mining

Product category: Symmetric casing drilling tools

MRING-XD integral multi-use symmetric caisng drilling ringbit is designed to case a hole simultaneously through unstable ground conditions. It is the economical pneumatic ring bit system.

With its hardened surface treatment, this Mring bit offers a longer operating life and excellent anti-wear properties. You can count on its durability and reliability, making it a valuable addition to your toolbox. Not only is this drill bit tough, but it is also optimized for structural strength and ease of operation. The structural optimization ensures that you can drill through various materials effortlessly, saving you time and effort on your projects.

MRING-XD integral multi-use symmetric caisng drilling ringbit are made up of:

1. A pilot bits with large internal flushing holes and external flushing grooves

2. Symmetrical ring bit (reamer) with internal bayonet coupling

3. Casing shoe for driving of casing.

The Pilot bits is attached to any common DTH hammer shank.

MRING symmetric caisng drilling ringbit technical parameters.

How to order:

Casing Tube OD & ID + Ring Bit Diameter + Hammer Shank + Maximal Normal Bit Diameter +

Casings and Casing Shoes Installation Method (if by threads, threads standard must be offered)

Other size of MRING system is available upon customer's request

FAQ:

1. What is Symmetrix drilling?

Previously known in our industry as Concentrix, the updated Symmetrix system allows for the simultaneous casing and drilling of a hole. The system consists of three main components: pilot bit, ring bit (reamer) and casing shoe

2. What is drill casing in mining?
In underground mining, steel casing or steel pipe is used to line holes that have been bored or drilled for rising mains water, utility lines and paste fill, protecting the contents from damage and loss into open voids or broken ground.

3. Why is overburden important?

In a petroleum system, the overburden rock overlies the source rock and contributes to its thermal maturation because of higher temperatures at greater depths. The age and thickness of the overburden rock determines the burial rate and thereby influences the heating rat.

4. Where does overburden go during a mining operation?

Reprocessing and contouring land are two uses for overburden, in addition to being utilized as an aggregate for building and road construction. Reclaimed mine tailings are used to make concrete, glass, tiles, and clay. After being cleaned, mine water is used as a coolant, in industry and agriculture, and to control dust and particulates.
