Product Details:
|
| Product Category: | Drilling Tools | Machine Type: | Drilling Equipment |
|---|---|---|---|
| Processing Type: | Forging | Type: | Overburden Casing Drilling System |
| Application: | Water Well Drilling | Color: | Red, Green, Required |
| Key Word: | Overburden Casing Drilling | HS: | 82071990 |
| High Light: | Overburden Eccentric Casing Drilling Bit,110 CIR Shank Casing Drilling Bit,133mm Concentric Drilling System Bit |
||

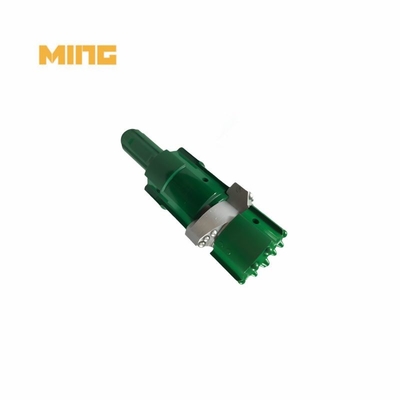

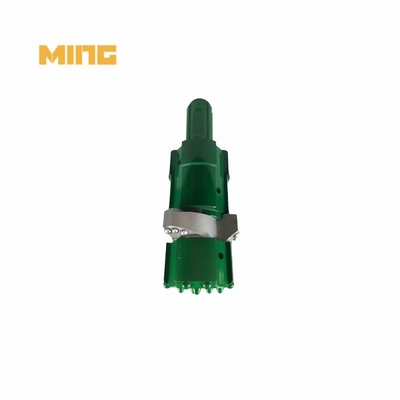

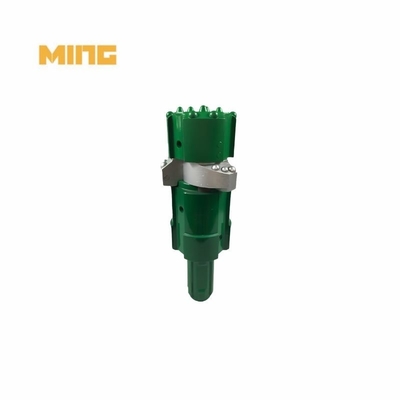

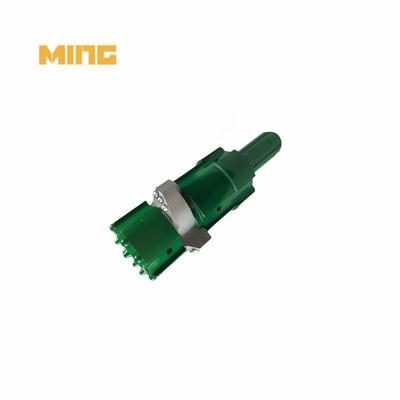

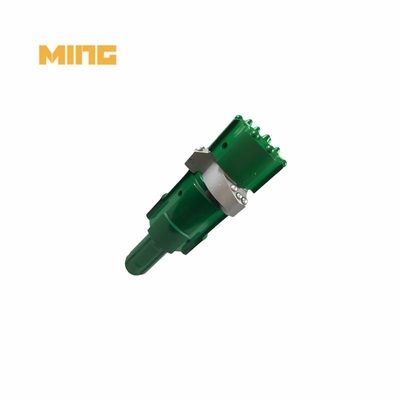

Product name: 236mm MK5E219 Overburden Eccentric Casing Drilling Bit With DHD360 Shank For Mining Well Drilling
Product Category: Overburden casing bit
Casing pipe OD: 219mm
When drilling in soft and loose ground with scattered boulders, the soil and clay are caved in, which creates drilling difficulty to withdraw the DTH drilling equipment and lowers the drilling speed.
To address this issue, KINGDRILLING Eccentric Type Overburden Casing Drilling System allows for simultaneous drilling and casing lowering. This keeps the earth from collapsing into the hole.The systems are intended to drill holes with sizes greater than the casing diameter. When the required drilled depth is reached, the DTH hammer and Overburden Drill System can be removed from the hole. If the bedrock level is reached and more drilling is required, just switch to a normal DTH bit.
With careful attention to both drilling wear life and efficiency, this drill bit is a reliable tool for all your drilling needs. The hardened surface treatment enhances its durability, allowing it to withstand demanding drilling applications. It offers exceptional anti-wear properties, ensuring a consistent performance over an extended period of time. The MK5E Bit boasts a simple yet effective design, making it easy to use even for beginners. Its convenient operation allows for precise and efficient drilling, saving you time and effort. You can rely on this drill bit to deliver consistent and accurate results.
MK5E Casing bit technical data:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MK5E108 | 115 | 93-99 | 90 |
| MK5E127 | 130 | 115-117 | 110 |
| MK5E146 | 155 | 130-134 | 110/340 |
| MK5E168 | 185 | 148-156 | 110/340 |
| MK5E178 | 195 | 158-166 | 150/340 |
| MK5E183 | 196 | 168-176 | 350/360 |
| MK5E193 | 206 | 176-182 | 360 |
| MK5E219 | 236 | 199-207 | 360 |
Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
MK5E Casing bit features:
1. Surface hardening treatment: provides a longer operational life and strong anti-wear qualities.
2. Structural optimization: Increase structural strength while making it simple to operate.
3. Outstanding performance: Consistent and dependable performance, fast drilling speed
FAQ:
1. How to order the products?
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union.
