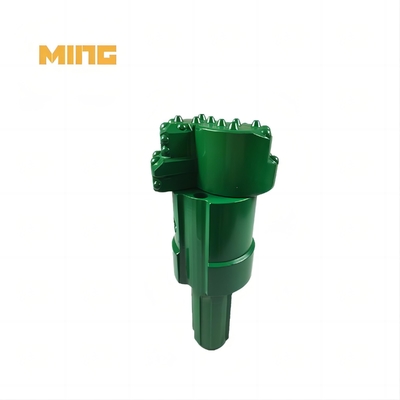

155mm MRE115 Overburden Concentric Casing Drilling System With DHD340 Hammer Shank For Well Drilling

Product Name: 155mm MRE115 Overburden Concentric Casing Drilling System With DHD340 Hammer Shank For Well Drilling

Matched hammer: Hammer DHD340

Matched casing pipe OD: 115mm

MRE Concentric under reaming drilling system

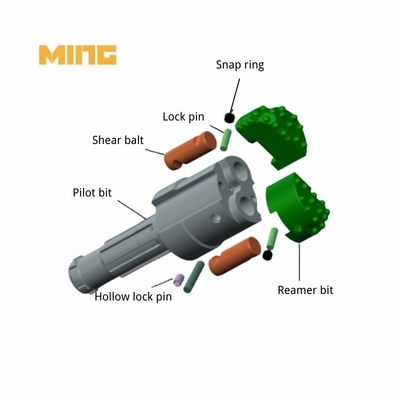

MRE Concentric under reaming drilling system is designed for unstable ground conditions. In the process of drilling, it could carry down the casing pipe to the hole to protect wall to achieve drilling work. At clockwise condition, eccentric part expanded to bring the casing tube into hole. After finished, eccentric bit closed anticlockwise and then can be lift up by the drilling machine. This type is especially suitable for diameter 114-273mm.

Advantages :

1.Improved steel grade for better fatigue properties
2.Five basic front designs
3.Designs for all rock types

Product Application:

It is suitable for drilling water wells, geothermal wells, short micro piles,medium mini-type grouting hole of building, demand harbor project.

What we can do for you:

1. High quality: We are the partners with a lot of big factories in China. We can provide the best quality products to you.
2. Competitive price: Competitive price because of direct factory price.
3. Fast delivery time:usually it takes 20 days for production.only 3 or 5 days if we have stock of your request size.
4. Best quality control:We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
5. Problems solve ability:This ability comes from rich experiences of drill bits industry and reliable sales..
6. OEM,ODM service:your own request about product will be served well.
7. Best after service:We will go to your place to check and solve the problems if you need.

Feature:
1.High quality steels materials.
2.Kingdrilling DTH tools are forged by advanced electron-hydraulic forging hammer.
3.Advanced heat-treatment equipment: multipurpose furnace heat treatment.
4.Completed moulding (tooling ) departments with many molds available.
5.Professional R&D team,completed quality system, strict quality check systems.


FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.

2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.

4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.

5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.

7. Shipping way:
A: Sample order: we suggest Courier express delivery such as DHL/UPS/TNT/FEDEX or by air
Bulk order: by air or by sea we suggest.

8. Competitive price:
A:KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor!
