Product Details:
|
| Machine Type: | Drilling Tool, Drilling Equipment, DTH Hammer | Use: | Water Well Drilling |
|---|---|---|---|
| Material: | Alloy, Carbon Steel | Type: | Concentric Casing Drilling Bit |
| Processing Type: | Forging | Product Name: | Conentric Casing Drilling System |
| Application: | Construction, Geothermal Wells | Color: | Green |
| Advantage: | High Performance, Direct Manufacturer | Usage: | Underground Mining, Well Drilling |
| Name: | Symmetrc Overburden Casing Drlling System | Item: | Overburden Casing Drilling System |
| Quality: | 90% Quality Similarity World Top Class Brands | Shank Type: | Cop, DHD, Mission,Numa, QL |
| High Light: | Symmetric Concentric Casing Drilling System,Slide Blocks Odex Drill Bit,Construction Odex Drill Bit |
||

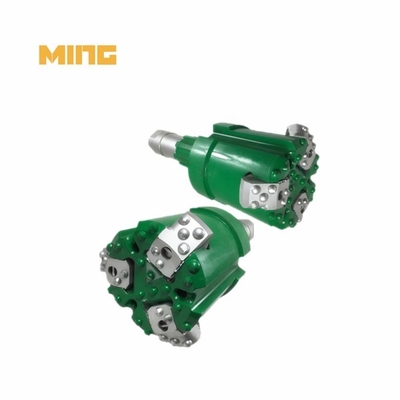

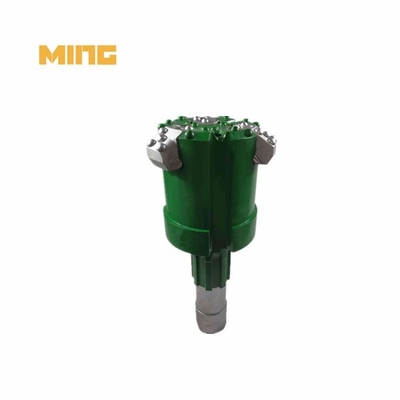

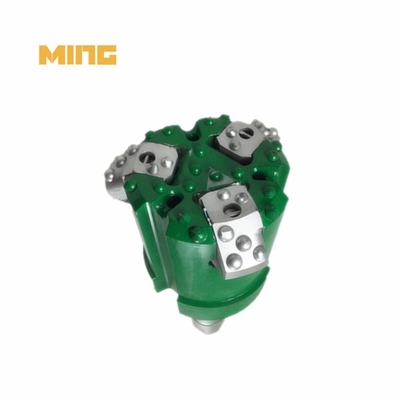

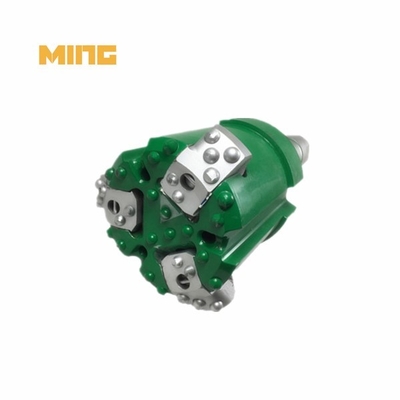

Product name: 155mm MSX115 Symmetric Concentric Casing Drilling System Odex Drill Bit With Slide Blocks For Construction
Product model: MSX Slide block casing bit
Color: Green, Blue, Red, Gold, Black, Custom Colors.
Choose the MSX Bit for its exceptional quality, reliable performance, and unmatched customer service. Experience the difference and unlock the full potential of your projects.
We take immense pride in our full production chain, meticulously optimized to secure stable and prompt production lead-time. This ensures that you receive your order without any delays, allowing you to continue your drilling operations with minimal downtime.

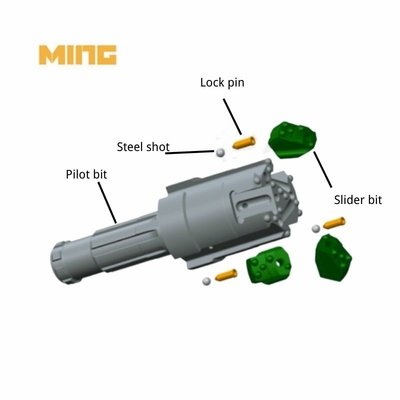

Product components:
1. Pilot bit+2PCS Slide blocks+casing shoe
2. Pilot bit+3PCS Slide blocks+casing shoe
3. Pilot bit+4PCS Slide blocks+casing shoe
Production details:
Model |
Hole dia(mm) |
Weight (KG) |
Pilot dia.(mm) |
length (mm) |
Case dia.(OD*ID) |
Spline |
MK-MSX90 |
125 |
16 |
100 |
360 |
114*102 |
MACH33,DHD3.5 |
MK-MSX115 |
155 |
30 |
125 |
510 |
139*127 |
DHD340,SD4.QL4 |
MK-MSX140 |
188 |
52 |
151 |
570 |
168*153 |
DHD350,SD5,QL5 |
MK-MSX165 |
215 |
95 |
178 |
690 |
194*181 |
DHD360,SD6,QL6 |
MK-MSX190 |
238 |
108 |
203 |
690 |
219*206 |
DHD360,SD6,QL6 |
MK-MSX215 |
276 |
140 |
236 |
720 |
254*240 |
DHD380,SD8,QL8 |
MK-MSX235 |
293 |
160 |
251 |
730 |
273*254 |
DHD380,SD8,QL8 |
MK-MSX240 |
293 |
168 |
256 |
730 |
273*260 |
DHD380,SD8,QL8 |
How to order:
Casing Tube OD + Casing Tube ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style.
Products application:
It can be used in foundation construction, Piling, Water Well and Geothermal, Tunneling and Horizontal drilling. Specially the rock formation is not stable with fractures.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Shipping way:
A: Sample order: we suggest Courier express delivery such as DHL/UPS/TNT/FEDEX or by air
Bulk order: by air or by sea we suggest.
Package and Delivery:
Packed by Carton or Wooden cases.
1. Goods in stock can be delivered within 5 days.
2. DTH Bits production time is about 15 days.
3. DTH Hammer product time is about 30 days.
