Product Details:
|
| Application: | Ground Engineering | Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization |
|---|---|---|---|
| Product Name: | Down The Hole Hammer | Hammer Material: | High Carbon Steel |
| Hammer Type: | Down The Hole Hammers | After-sales Service: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available |
| Warranty: | 1 Year | Material: | Carbon Steel |
| Type: | Deep Hole Drilling Tools | Certification: | ISO9001 |
| Processing Type: | Forging | Usage: | Quarry |
| Quality: | Top Brand China | Air Consumption: | 0.5-2.5Mpa |
| Oem: | YES | ||
| High Light: | 10inch Down Hole DTH Hammer,SD10 Shank DTH Hammer |
||

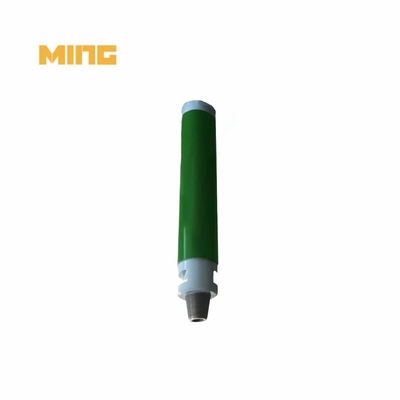

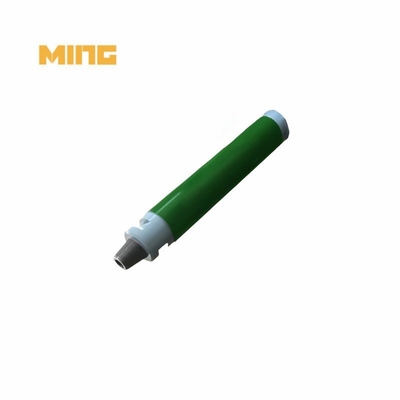

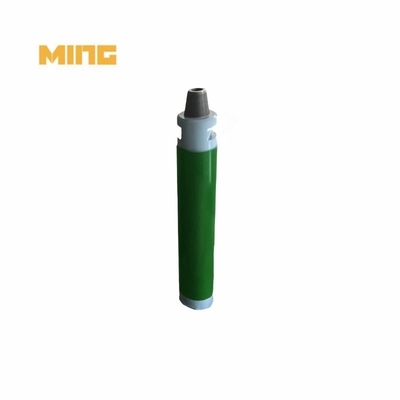

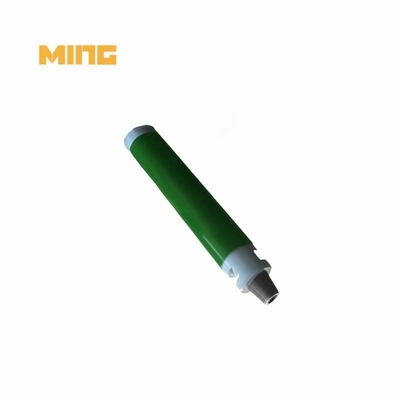

Product name: 10inch Down Hole DTH Hammer With SD10 Shank For Coal Mining Rock Drilling
Product category: Drilling rig accessories
Matched hammer: Hammer SD10
Connection thread: API6-5/8"REG
Working pressure(bar): 10~25
Outer diameter(mm): 226
Weight(KGS): 316
Bit diameter recommend(mm): 254~305
High air pressure DTH hammer with SD shank details:
Rock drilling tools manufacturer KINGDRILLING DTH hammers are available in sizes from 2" to 33" for Down The Hole hammer bits are available in sizes from 2" to 48", with all shanks, multiple face, and with a variety of tungsten carbide button styles to suit a wide variety of drilling conditions and rock formation.
High air pressure DTH hammer has been meticulously crafted from high-quality raw materials to ensure superior durability and longevity. Premium hardened procedures have been implemented to enhance the bit's lifespan, making it a reliable choice.
Our full production chain guarantees a stable and prompt production lead-time, ensuring you receive your order quickly and efficiently. With our experienced senior technicians and a team of skilled workers and engineers, you can trust in the precision and high performance of our Bit.
Moreover, customization is not only accepted but encouraged. We understand that every project is unique, and we are dedicated to providing tailored solutions to meet your specific requirements. Our quick and efficient service aims to exceed your expectations, ensuring a seamless experience from start to finish.
High air pressure DTH hammer with SD shank technical parameters:
| Model |
OD (mm) |
Hole range (mm) |
Length (mm) |
Connection Thread |
Working pressure (Mpa) |
Air Consumption | Weight (Kg) |
||
| MH40SD | 99 | 110~135 | 1012 | API2-3/8"REG | 1.2~2.0 |
1.0Mpa- 6m3/min |
1.8Mpa- 9m3/min |
2.4Mpa- 14m3/min |
40 |
| MH50SD | 125 | 155~190 | 1090 | API2-3/8"REG/API2-7/8"IF/API3-1/2"REG | 1.3~2.3 |
1.0Mpa- 7m3/min |
1.8Mpa- 14m3/min |
2.4Mpa- 19m3/min |
70 |
| MH60SD | 146 | 155~203 | 1182 | API3-1/2"REG | 1.5~2.5 |
1.0Mpa- 9m3/min |
1.8Mpa- 18m3/min |
2.4Mpa -26m3/min |
90 |
| MH80SD | 180 | 195~254 | 1330 | API4-1/2"REG | 1.5~3.0 |
1.0Mpa- 12m3/min |
1.8Mpa- 22m3/min |
2.4Mpa- 28m3/min |
174 |
| MH100SD | 226 | 254~311 | 1525 | API6-5/8"REG | 2.0~3.5 |
1.0Mpa- 22m3/min |
1.8Mpa- 40m3/min |
2.4Mpa- 65m3/min |
316 |
| MH120SD | 275 | 305~445 | 1860 | API6-5/8"REG | 2.0~3.5 |
1.0Mpa- 28m3/min |
1.8Mpa- 50m3/min |
2.4Mpa- 71m3/min |
480 |
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
FAQ:
1. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
2. What is the hardest rock to drill?
Diamond is the hardest (readily available) naturally occurring substance in the world, and so finds itself an invaluable material in the process of drilling through extremely strong rocks such as granite and basalt.
3. Should I use water when drilling rocks?
Using water keeps both the drill bits and the rock cool while drilling. This will help to extend the life of diamond-tipped bits. It will also prevent the rock that you're drilling holes in from cracking due to heat expansion.
