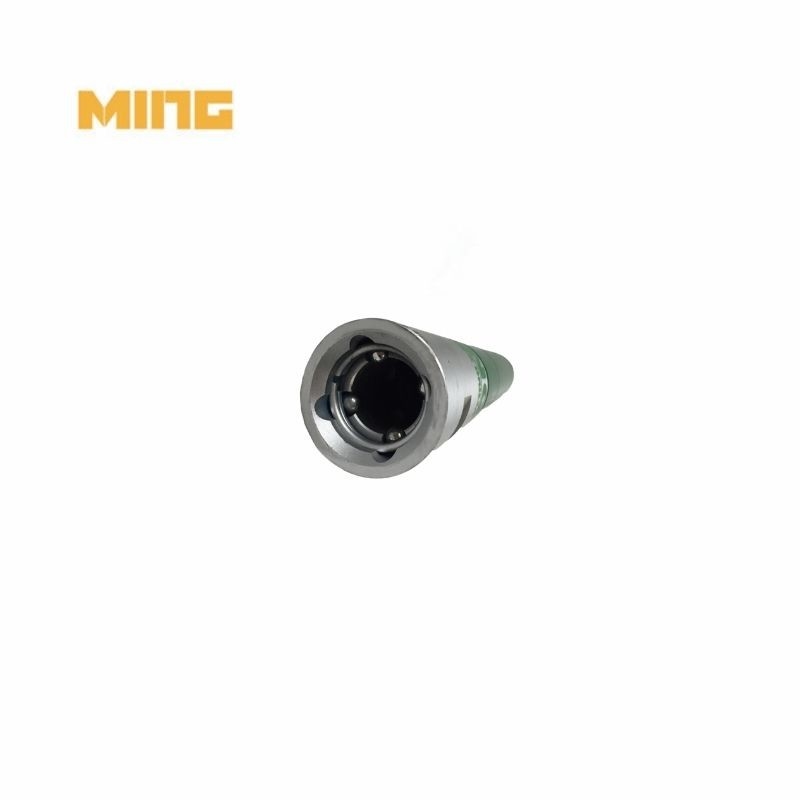

Product name: 2.8P Russian Bayonet DTH Hammer Bits For Mining Quarrying Drilling Tools
Product category: Quarrying drilling tools
Matched hammer: Hammer 110PB
Connection thread: Bayonet
Impact power: 2.8
Working pressure(bar): 7~11
Outer diameter(mm): 98
Weight(KGS): 24.5
Bit diameter recommend(mm): 110~140
DTH Hammer - a powerful drilling tool designed to enhance drilling efficiency and reduce costs. Made from high-quality cemented carbide, this bit exhibits exceptional hardness and excellent abrasion resistance. With its wide application, it is specifically designed for drilling medium to hard strata.
Russian bayonet 130PB shank DTH drilling hammer instruction:
3” – 33” DTH Hammers for mining, quarrying, exploration, water-well, geothermal, construction and geotechnical
drilling projects.
Every KINGDRDILLING DTH hammer is produced in our own factories equipped with advanced production facility. All components are precision-manufactured using high-quality raw materials and undergo proprietary heat-treatment processes at our own facilities to guarantee durability and quality.
Russian bayonet DTH rock drill hammer technical parameter:
| Model |
OD
(mm)
|
Length (mm) |
Impact power
horse
|
Connection Thread |
Working pressure
(Bar)
|
Air consumption
(M3/min)
|
Weight
(KG)
|
Bit diameter
recommend (mm)
|
| MH110PB |
98 |
662 |
2.8 |
F72*10 BOX |
7~11 |
7~12 |
24.5 |
110-140 |
| MH 130PB |
116 |
681 |
4 |
F72*10 BOX |
7~11 |
8~14 |
35.1 |
130-160 |
| MH PS110 |
103 |
670 |
3.2 |
F72*10 BOX |
7~11 |
7~12 |
25.6 |
110-140 |
How to order:
Shank Type + Top Sub Thread
FAQ:
1. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
2. What is hole hammer?
A pneumatic down-the-hole (DTH) hammer is a pneumatic drilling tool that is powered by compressed air. It can be used to drill in pebble, gravel, and hard rock layers. It is frequently employed in the construction of building pile foundations, bridges, mining, geological research, hydrological wells, and other fields.
3. Is top hammer drilling vs down-the-hole drilling?
The fundamental distinction between top hammer and down-the-hole drilling methods is the location of the hammer. During the down-the-hole drilling method, the hammer in the industrial equipment makes contact with the bit. The action of the top hammer drilling method is concentrated at the very top of the drill string.
