Product Details:
|
| Application: | Quarrying | Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization |
|---|---|---|---|
| Product Name: | Propower 8 Inch Down The Hole Hammer For India | Hammer Material: | High Carbon Steel |
| Hammer Type: | Down The Hole Hammers | After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available |
| Warranty: | 1 Year | Material: | Carbon Steel |
| Type: | Deep Hole Drilling Tools | Certification: | ISO9001 |
| Processing Type: | Forging | Usage: | Quarry |
| Quality: | Top Brand China | Air Consumption: | 0.5-2.5Mpa |
| Oem: | YES | ||
| High Light: | 130PB Low Pressure Drill Hammer,Quarrying Drilling DTH Hammer |
||

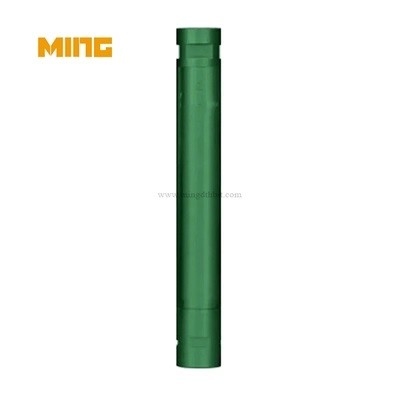

Product name: 130PB Shank DTH Russian Bayonet Low Pressure Drill Hammer For Quarrying Drilling
Product category: Quarrying drilling bit
Matched hammer: Hammer 130PB
Connection thread: Bayonet
Impact power: 4.0
Working pressure(bar): 7~11
Outer diameter(mm): 116
Weight(KGS): 35.1
Bit diameter recommend(mm): 130~160
With our commitment to customization, we welcome your specific requirements and offer quick and efficient service, tailored to your needs. Our competitive pricing is coupled with the best quality in the market, giving you great value for your investment.
Above Retract Thread Bit, we believe in offering professional service with a competitive edge. Trust us to provide you with superior products and outstanding customer support. Choose us for your drilling needs and experience the difference.
Russian bayonet 130PB shank DTH drilling hammer feature:
1. Patented innovation to ensure maximum energy transfer
2. Simplified design for easier servicing and higher reliability
3. high-frequency design for smoother operation
4. Hardened wear sleeve for wear resistance even in abrasive conditions
5. Multi-start threads on backhead and chuck for easy coupling/uncoupling
Russian bayonet 130PB shank DTH drilling hammer technical parameter:
| Model |
OD (mm) |
Length(mm) | Impact power horse |
Connection Thread |
Working pressure (Bar) |
Air consumption (M3/min) |
Weight (KG) |
Bit diameter recommend(mm) |
| MH110PB | 98 | 662 | 2.8 | F72*10 BOX | 7~11 | 7~12 | 24.5 | 110-140 |
| MH 130PB | 116 | 681 | 4 | F72*10 BOX | 7~11 | 8~14 | 35.1 | 130-160 |
| MH PS110 | 103 | 670 | 3.2 | F72*10 BOX | 7~11 | 7~12 | 25.6 | 110-140 |
How to order:
Shank Type + Top Sub Thread
FAQ:
1. What is percussion drilling method?
Percussion drilling is the manual drilling technique that was used in the first well drilled. In this drilling technique, a hammering bit is attached to a long cable that is then lowered into a wide open hole.
2. How does DTH system work?
DTH is an encrypted transmission that travels to the consumer directly through a satellite. DTH transmission is received directly by the consumer at his end through the small dish antenna. A set-top box, unlike the regular cable connection, decodes the encrypted transmission
3. Can you directional bore through rock?
One of the most significant milestones in the evolution of HDD, however, was the development of the technology. As technology has advanced, midsize drilling equipment now has the capability of effectively drilling and steering in rock.
4. Why is horizontal drilling better?
Compared to vertical drilling, directional or horizontal drilling gives producers greater flexibility and precision in reaching and extracting oil and gas. Because horizontal drilling drills in multiple directions from a single well pad, it also lessens the ecological footprint of above-ground drilling operations.
