Product Details:
|
| Application: | Ore Mining, Underground Drilling | Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization |
|---|---|---|---|
| Product Name: | Dth Hammers | Hammer Material: | Steel,High Carbon Stee |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Overseas Service Center Available | Warranty: | 1 Year |
| Material: | Carbon Steel,high Quality Alloy Steel | Type: | Deep Hole Drilling Tools,Down The Hole Hammers /DTH Hammers For Sale |
| Certification: | ISO9001 | Processing Type: | Forging |
| Usage: | Bored Pile,construction Machine Parts | Quality: | Top Brand China |
| Air Consumption: | 0.5-2.5Mpa | Oem: | YES |
| High Light: | SD Shank DTH Hammer,6 Inch DTH Hammer |
||

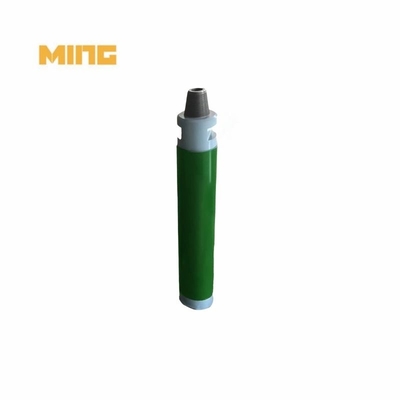

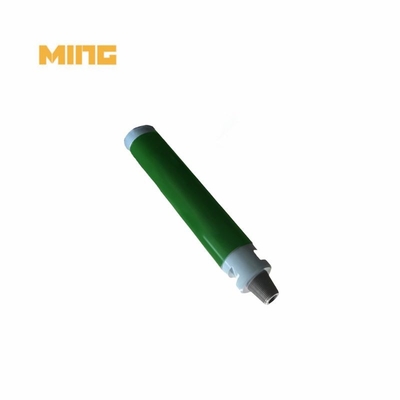

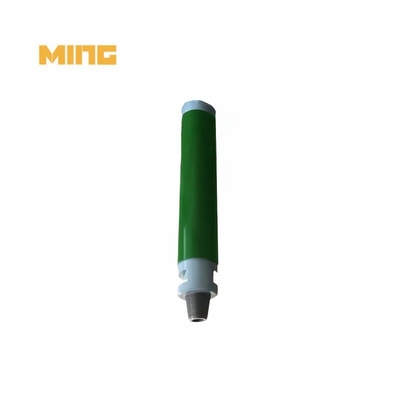

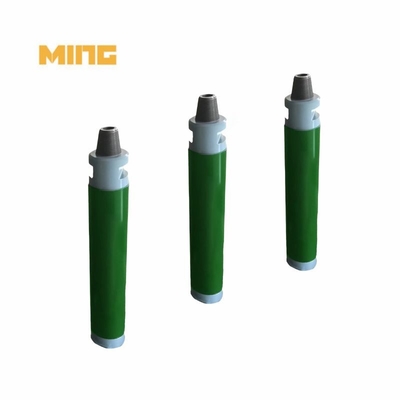

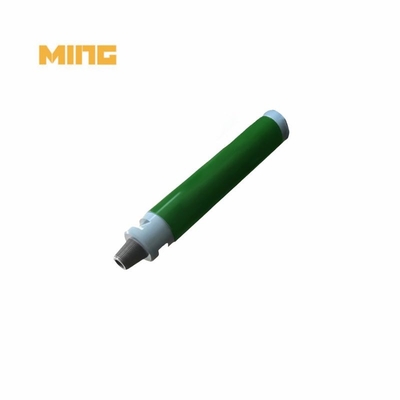

Product Name: 6 Inch SD Shank High Air Pressure DTH Hammer For Gold Exploration
Model : MH60SD
Ref. Type :SD6
OD(mm):146mm
Hole range(mm): 155-203mm
Length(mm): 1182mm
Connection Thread: API3-1/2"REG
Working pressure(Mpa): 1.5~2.5
Recommended Rotation Speed(r/min): 20~30
Air Consumption : 1.0Mpa-9m3/min 1.8Mpa-18m3/min 2.4Mpa-26m3/min
Weight(Kg): 90 kgs
KINGDRILLING DTH hammer products offers a wide range of quality, versatile DTH hammers to interchangeable, or replace a number of leading industry manufacturers. Hammers are available for down hole and blast hole, water well, gas, mining applications and use in nearly all ground conditions. Most DTH hammers are designed for use with the industry's most common rock drill bits shank types such as DHD, QL, Cop, Mission, SD, NUMA shank and so on.
Kingdrilling’s DTH hammer support a wide variety of popular drill bit shank designs and are available with all common drive chuck connections. API Reg pin connectors are standard. Get in touch today for help choosing the right hammer for your drill project.
Trust in the SD DTH hammer for its high-quality raw materials, reliable production chain, skilled technicians, and customizable options. Experience the difference with our exceptional service and competitive prices. Elevate your drilling operations with our SD DTH hammer - the tool of choice for professionals in the industry.
| Model | Spline | OD(mm) | Hole range(mm) | Length(mm) | Connection Thread | Working pressure(Bar) | Air Consumption | Weight (Kg) |
||||
| SD SHANK HAMMER | ||||||||||||
| MH40SD | SD4 | 99 | 110~135 | 1012 | API2-3/8"REG | 12~20 | 10BAR/145PSI-212CFM | 18BAR/261PSI-318CFM | 24BAR/348PSI-494CFM | 40 | ||
| MH50SD | SD5 | 125 | 155~190 | 1090 | API2-3/8"REG/API2-7/8"IF/API3-1/2"REG | 13~23 | 10BAR/145PSI-247CFM | 18BAR/261PSI-494CFM | 24BAR/348PSI-671CFM | 70 | ||
| MH60SD | SD6 | 146 | 155~203 | 1182 | API3-1/2"REG | 15~25 | 10BAR/145PSI-318CFM | 18BAR/261PSI-635CFM | 24BAR/348PSI-918CFM | 90 | ||
| MH80SD | SD8 | 180 | 195~254 | 1330 | API4-1/2"REG | 15~30 | 10BAR/145PSI-424CFM | 18BAR/261PSI-777CFM | 24BAR/348PSI-988CFM | 174 | ||
| MH100SD | SD10 | 226 | 254~311 | 1525 | API6-5/8"REG | 20~35 | 10BAR/145PSI-777CFM | 18BAR/261PSI-1412CFM | 24BAR/348PSI-2295CFM | 316 | ||
| MH120SD | SD12 | 275 | 305~445 | 1860 | API6-5/8"REG | 20~35 | 10BAR/145PSI-988CFM | 18BAR/261PSI-1765CFM | 24BAR/348PSI-2506CFM | 480 | ||
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
How to choose the suitable Pneumatic DTH hammer?
It is better for you to choose the one which the outside diameter is nearest to the hole diameter. This will reduce the hole collapse, and the hole cleaning is easier.
You must consider about the consumption of compressed air when you use the Pneumatic DTH hammer. Generally speaking, with the raising of the size of hammer, peak performance requires higher compressed gas consumption and lower pressure. In order to make sure each hammer will be used in the proper consumption of compressed air and pressure, please refer to the attachment.
The larger bit and hammer will need the drilling rig to provide greater torque and promoting force, but do not exceed the maximum load of the drill. As for the other questions about drill ability, please consult your sales representative.
How does DTH drilling hammer work?
A down-the-hole drill hammer, usually called DTH hammer by most professionals, is basically a DTH hammer screwed on the bottom of a drill string. The fast hammer action breaks hard rock into small cuttings and dust that are evacuated by a fluid (air, water or drilling mud).
