Product Details:
|
| Processing Type: | Forging | Machine Type: | Downhole Tools |
|---|---|---|---|
| Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling | Type: | Drill Bit |
| Material: | Tungsten Carbide & Steel | Certification: | ISO9001 |
| Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization | Product Name: | Factory Hot Selling DTH Drill Bits |
| Application: | Construction,water Well Drilling | Advantage: | Widely Used Hard Rocks And Have Good Penetration |
| Packing: | Wooden Case | Usage: | Hole Drilling,Mining&Construction&Water Well Drilling |
| Face: | Flat / Convex / Concave | Standard: | ISO-9001 |
| High Light: | COP32 Shank DTH Drill Bit,Piling DTH Drill Bit |
||

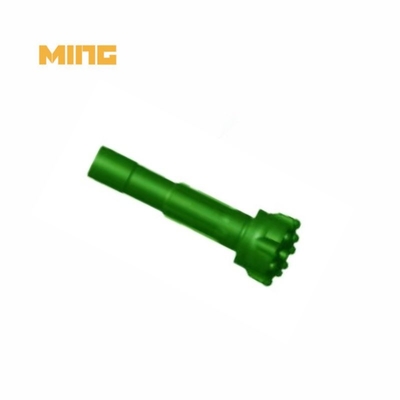

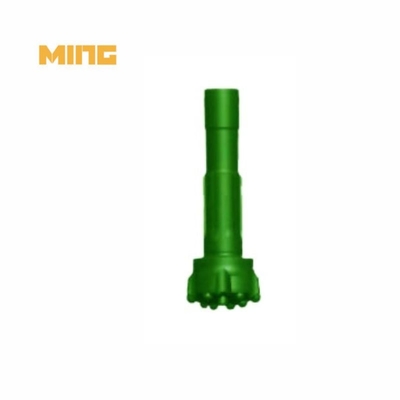

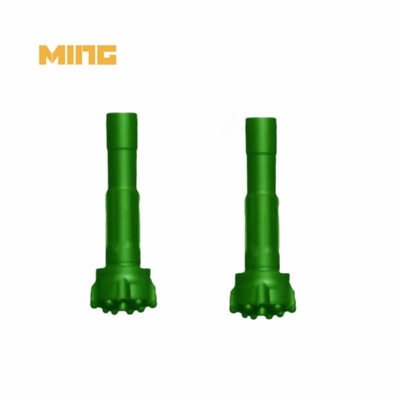

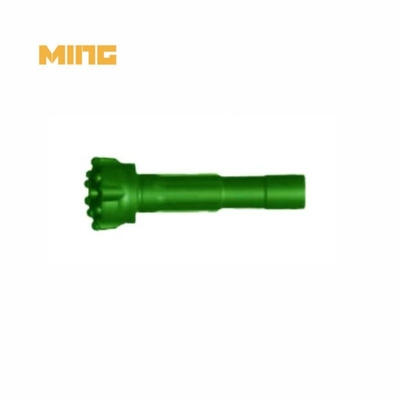

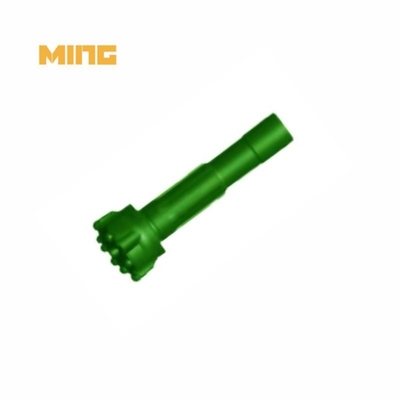

Product name: 105mm Down The Hole DTH Drill Bit With COP32 Shank For Piling And Foundation Drilling
Product category: DTH drill tools
Matched hammer: Hammer COP32
Diameter: 105mm
KINGDRILLING high air pressure DTH button bit description:
Kingdrilling has become The Driller’s Choice for some of the world’s small and middle mining projects, thanks to a reliable quality and high cost performance that can supply and service Kingdrilling products in even the most remote and inaccessible parts of the world.
For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mining, DTH, Piling, water well drilling and blasting operations.
This strong supply chain is backed up by Kingdrilling’s dedication to its AIM principle: reliable, implement and responsibility. Using this, we are able to meet the drilling needs of our Mining and Quarrying customers, while ensuring maximum efficiency and productivity.
COP32 Shank DTH Drill Bit - the ultimate drilling tool for professionals seeking structural optimization, improved strength, and effortless operation. Designed to deliver superior performance, this product ensures high drilling speed along with stable and reliable performance.
KINGDRILLING 3 inch high air pressure DTH button bit with COP32 shank technical parameters:
| 3 inch Middle air pressure DTH bits | |||||
| Model | Bit Dia.(mm) | NO. X Button Dia. | NO.Air Holes(PCS) | Weight(KG) | |
| Gauge | Front | ||||
| MDCOP32-85 | 85 | 6*Φ13 | 4*Φ12 | 2 | 4.2 |
| MDCOP32-90 | 90 | 6*Φ14 | 4*Φ12 | 2 | 4.5 |
| MDCOP32-95 | 95 | 6*Φ14 | 4*Φ13 | 2 | 4.7 |
| MDCOP32-100 | 100 | 6*Φ14 | 5*Φ12 | 2 | 5.0 |
| MDCOP32-105 | 105 | 6*Φ14 | 5*Φ13 | 2 | 5.3 |
Kingdrilling DTH bit advantage:
1. Available with all major drill bit shank designs
2. Three drill bit face designs: concave, flat, convex
3. Multiple carbide designs and grades for operation in a variety of ground conditions
4. Proprietary heat-treatment process for superior hardness and wear resistance
5. Regional manufacturing for lower lead times.
FAQ:
1. How about plain packing?
A: If there is no special packing requirement, we will take it as our normal packing. Put small cartons first, then large cartons to ensure that the goods are complete.
2. Can I expect quality products?
A. Yes. The mature production process ensures that the quality meets the international requirements.
3. How to control the quality?
A: We have our own experienced QC team who will strictly inspect and test each order before shipping.
4. Fast delivery time:
A: It usually takes 25 days to produce. If we have your requested size in stock, it only takes 3 or 5 days.
5. What are DTH bits?
DTH hammer heads are used with DTH hammers to drill holes in a variety of rock types. Used in conjunction with the drill hammer, the drill hammer bit is designed with a spline driver for rotating the bit underground.
6. What is a drill hammer?
Underhole drilling (DTH) essentially involves a drill hammer at the bottom of the drill string. It relies on three elements for drilling: bit load (weight), rotation, and air. These active elements combine to effectively break up rock.
7. How does subhole drilling work?
A submerged-hole drill, often referred to by most professionals as a DTH, is basically a jackhammer screwed into the bottom of the drill string. Rapid hammering action breaks the hard rock into small chips and dust, which are discharged by fluid (air, water, or drilling mud).
