Product Details:
|
| Processing Type: | Forging | Machine Type: | Downhole Tools |
|---|---|---|---|
| Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling | Type: | Drill Bit |
| Material: | Tungsten Carbide & Steel | Certification: | ISO9001 |
| Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization | Product Name: | Factory Hot Selling DTH Drill Bits |
| Application: | Construction,water Well Drilling | Advantage: | Widely Used Hard Rocks And Have Good Penetration |
| Packing: | Wooden Case | Usage: | Hole Drilling,Mining&Construction&Water Well Drilling |
| Face: | Flat / Convex / Concave | Standard: | ISO-9001 |
| High Light: | 105mm DTH Drill Bit,COP34 Shank DTH Drill Bit,Rock Mining Dth Hammer Bit |
||

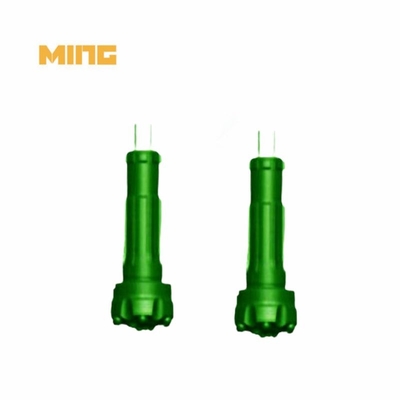

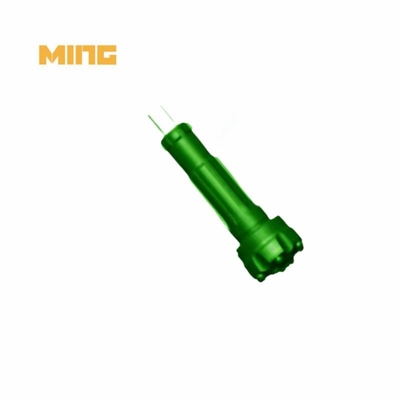

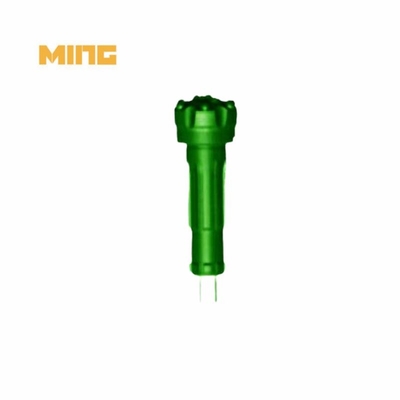

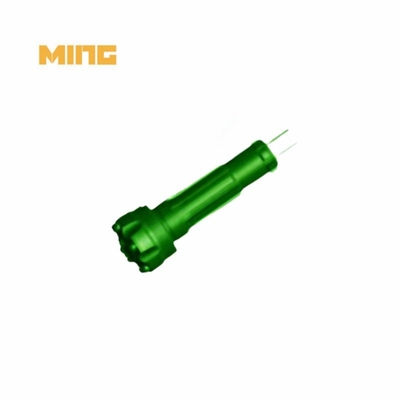

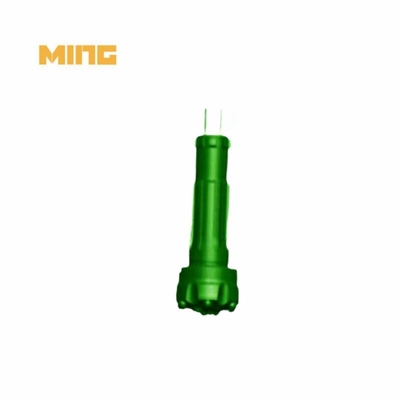

Product name: 105mm High Air Pressure Down The Hole DTH Drill Bit With COP34 Shank For Rock Mining Drilling
Product category: DTH drill tools
Matched hammer: Hammer COP34
Diameter: 105mm
KINGDRILLING high air pressure DTH button bit description:
Kingdrilling has become The Driller’s Choice for some of the world’s small and middle mining projects, thanks to a reliable quality and high cost performance that can supply and service Kingdrilling products in even the most remote and inaccessible parts of the world.
For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mining, DTH, Piling, water well drilling and blasting operations.
This strong supply chain is backed up by Kingdrilling’s dedication to its AIM principle: reliable, implement and responsibility. Using this, we are able to meet the drilling needs of our Mining and Quarrying customers, while ensuring maximum efficiency and productivity.
Our DTH Drill Bit With COP34 Shank features structural optimization, enhancing its strength and durability. The robust construction guarantees long-lasting use, even in demanding drilling applications. Engineered with precision, this tool ensures minimal deflection and maximum efficiency, resulting in precise and accurate drilling.
KINGDRILLING 3 inch high air pressure DTH button bit with COP34 shank technical parameters:
| 3 inch Middle air pressure DTH bits | |||||
| Model | Bit Dia.(mm) | NO. X Button Dia. | NO.Air Holes(PCS) | Weight(KG) | |
| Gauge | Front | ||||
| MDCOP34-85 | 85 | 6*Φ13 | 4*Φ12 | 2 | 4.2 |
| MDCOP34-90 | 90 | 6*Φ14 | 4*Φ12 | 2 | 4.5 |
| MDCOP34-95 | 95 | 6*Φ14 | 4*Φ13 | 2 | 4.8 |
| MDCOP34-100 | 100 | 6*Φ14 | 5*Φ12 | 2 | 5.0 |
| MDCOP34-105 | 105 | 6*Φ14 | 5*Φ13 | 2 | 5.5 |
Kingdrilling DTH bit advantage:
1. Available with all major drill bit shank designs
2. Three drill bit face designs: concave, flat, convex
3. Multiple carbide designs and grades for operation in a variety of ground conditions
4. Proprietary heat-treatment process for superior hardness and wear resistance
5. Regional manufacturing for lower lead times.
How to choose the suitable head face of the DTH drill bit?
Concave:
Suitable for all kinds of formation, especially for deep well drilling, perpendicularity of the hole is wonderful.
Convex:
Suitable for the formation of moderate hardness stratum, drilling efficiency is good, borehole perpendicularity is moderate.
Flat:
Suitable for special hard formation stratum, especially for fracture, crack spacing and complex formation drilling effect is very good, has the good perpendicularity of the borehole.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from ourwebsite for a better understanding.
4. How to make sure the quality?
A: More than 40 Years engineer to make sure the quality, 100% inspection.
5. What is the general delivery time?
A: 15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
6. Methods of Payment
A: T/T (Telegraphic Transfer) or Western Union.
