Product Details:
|
| Material: | Tungsten Carbide & Steel | Use: | Blasting |
|---|---|---|---|
| Type: | Drill Bit | Machine Type: | Downhole Tools |
| Processing Type: | Forging | Product Name: | Factory Hot Selling DTH Drill Bits |
| Color: | Blue,Golden,other Color Available,Blue And Yellow | Application: | Rock Drilling |
| Usage: | Hole Drilling | Advantage: | High Performance Rock Drill Bit |
| Standard: | ISO-9001 | Face: | Flat / Convex / Concave |
| Key Words: | Dth Bit | ||
| High Light: | DHD340 Shank DTH Drill Bit,Exploration Drilling DTH Bit |
||

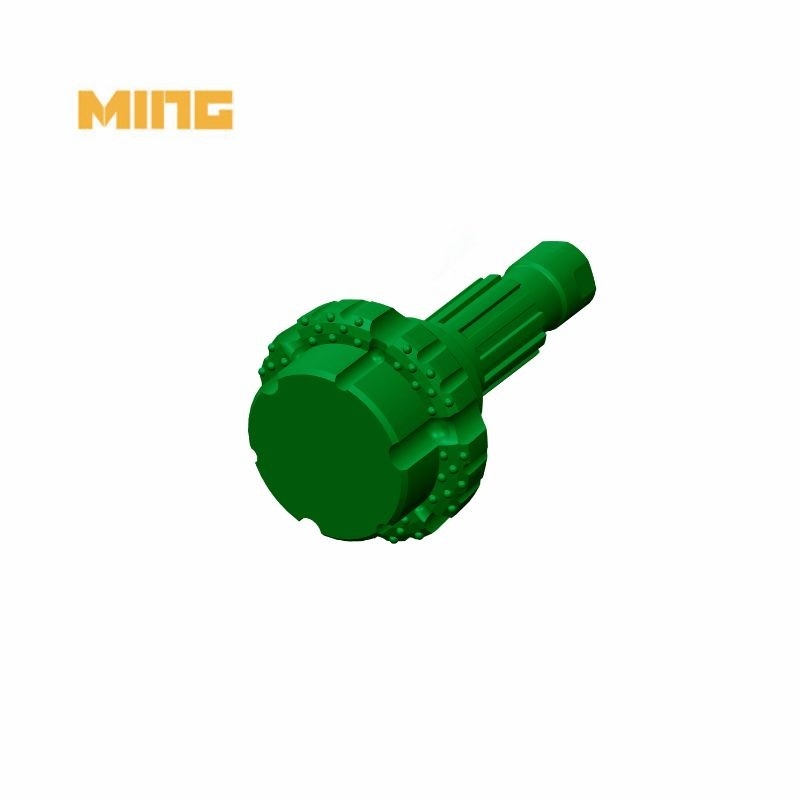

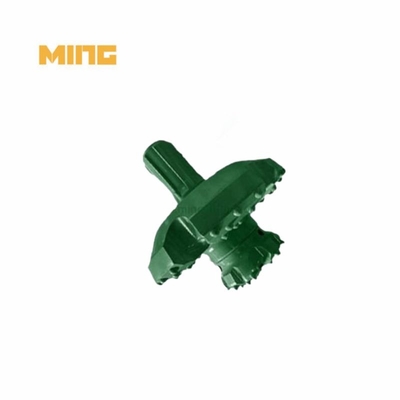

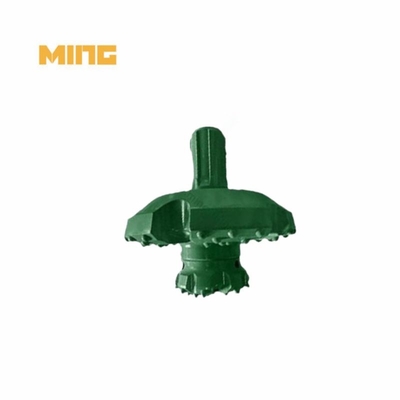

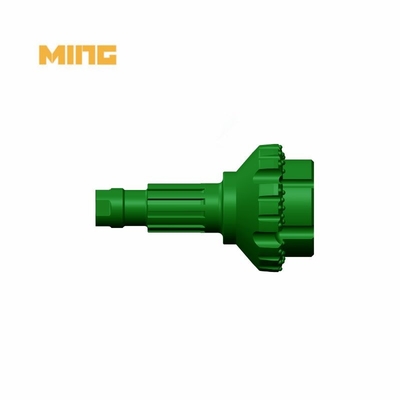

Product name: 165mm DHD340 Shank DTH Hole Opener Drill Bit For Exploration Drilling
Product category: DTH drill bit
Matched connection: DHD340 Shank
Reamer Dia: 165mm
KINGDRILLING DTH thread button bit description:
KINGDRILLLING offers a wide size of DTH hole opener bits, Guide diameter scope from 95mm to 311mm, Reamed diameter scope from 130mm to 444.5mm, DTH hammer size from 3.5”, 5”, 6”, 8”, 12” with all industry DTH hammer shanks for a match.
DTH hammer bit manufacturer KINGDRILLING DTH hole opener bits are manufactured from the highest quality aircraft alloy steel. Which are used to enlarge the size of a pilot hole most commonly for Blast hole drilling, Quarrying, DTH Drilling, Water Well Drilling, Oil Drilling, Construction, Foundation Drilling.
Make Structural Optimization, improved strength, and ease of operation a reality. Choose the DTH hole opener bit and unlock a new level of drilling excellence. Experience the power of superior performance, high drilling speed, and unwavering reliability – all in one exceptional product.
Invest in the future of drilling efficiency with our DTH hole opener bit. Don't settle for subpar performance when you can achieve extraordinary results. Boost your operations with this cutting-edge solution and make a lasting impact in the industry.
KINGDRILLING DTH reamer bit technical parameters:
| Model | Guide Dia.A (mm) | Reamed Dia B (mm) | Qty.× Button Dia (mm) | Shank | Weight (kg) |
|
| Gauge | Front | |||||
| MDO95D3.5 | 95 | 130 | 6×14 2×14 | 4×11 3×11 | DHD3.5 | 8.5 |
| MDO80D3.5 | 80 | 165 | 8×14 | 8×13 6×11 | 15.1 | |
| MDO100D3.5 | 100 | 165 | 8×14 | 4×13 4×12 3×12 | 14.5 | |
| MDO110D3.5 | 110 | 165 | 8×14 | 4×13 | 15.2 | |
| MDO100D4 | 100 | 165 | 8×14 | 4×13 4×12 3×12 | DHD340 | 14.5 |
| MDO115D4 | 115 | 171.5 | 9×16 | 6×14 | 16.1 | |
| MDO75D5 | 75 | 152 | 8×18 | 6×14 2×14 2×14 | DHD350R | 35.2 |
| MDO165D6 | 165 | 191 | 10×16 | 3×14 4×14 | DHD360 | 74.5 |
| MDOD108D6 | 108 | 220 | 10×18 | 12×18 2×14 2×14 | 79.3 | |
| MDO165D6S | 165 | 254 | 12×18 | 12×16 4×14 5×14 | 65.3 | |
| MDO140D8 | 140 | 200 | 10×18 | 8×12 2×14 4×14 | DHD380 | 10.6 |
| MDO188D8 | 188 | 254 | 22×18 | 2×18 | 147.4 | |
| MDO152D8 | 152 | 305 | 14×18 | 10×18 16×16 | 107.8 | |
| MDO210D8 | 210 | 381 | 16×18 | 28×18 | 12.5 | |
| MDO216D12 | 216 | 312 | 18×18 | 15×18 6×16 6×14 | DHD112 | 133.6 |
| MDO254D12 | 254 | 375 | 18×18 | 12×18 15×18 | 136.2 | |
| MDO311D12 | 311 | 444.5 | 18×19 | 15×19 21×19 | 328.5 | |
| MDO350CIR170 | 185 | 350 | 18×18 | 12×18 15×18 | CIR170 | 130 |
Order Guide: Diameter A+ Diameter B +Hammer type
Advantages:
1. High quality steels materials.
2. Kingdrilling DTH tools are forged by advanced electron-hydraulic forging hammer.
3. Advanced heat-treatment equipment: multipurpose furnace heat treatment.
4. Completed moulding (tooling ) departments with many molds available.
5. Professional R&D team,completed quality system.
6. Strict Quality-Check Systems.
Application:
1. Quarrying drilling
2. Mining exploration drilling
3. Piling and foundation drilling
4. Water well drilling
5. Geothermal drilling
6. Horizontal directional drilling
7. Rock drilling
FAQ:
1. How do I place a product order?
A detailed item description or the model number should be included with your question.
2. Can I anticipate high-quality goods?
A: In agreement. advanced production technology guaranteeing that the quality meets global standards.
3. How can you make sure the product is precisely what you want?
A: If at all possible, including a reference image or links to our website for a better understanding in order to prevent misunderstandings.
4. How can the quality be ensured?
A: Over 40 years of experience as an engineer to provide 100% quality control.
5. What is the typical time of delivery?
A: For DTH bits, allow 15 working days.
20 to 25 business days for the DTH hammer
For out-of-stock products, allow 3-5 working days.
6. Payment Options
A: Telegraphic Transfer (T/T)
