Product Details:
|
| Material: | Tungsten Carbide & Steel | Use: | Blasting |
|---|---|---|---|
| Type: | Drill Bit | Machine Type: | Downhole Tools |
| Processing Type: | Forging | Product Name: | Factory Hot Selling DTH Drill Bits |
| Color: | Blue,Golden,other Color Available,Blue And Yellow | Application: | Construction,water Well Drilling |
| Usage: | Hole Drilling | Advantage: | High Performance Rock Drill Bit |
| Standard: | ISO-9001 | Face: | Flat / Convex / Concave |
| Key Words: | Dth Bit | ||
| High Light: | DTH Hole Opener Drill Bit,165mm Hole Opener Drill Bit,DHD360 Hole Opener Bit |
||

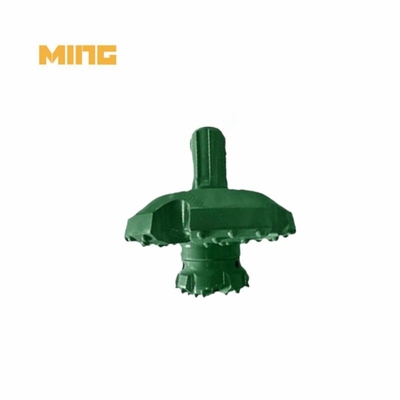

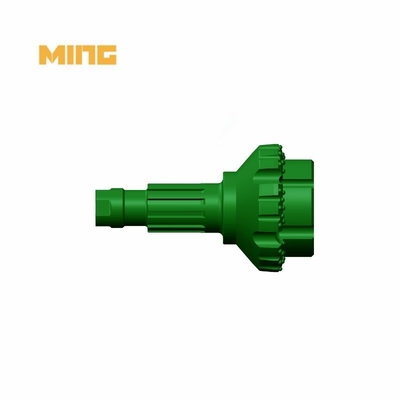

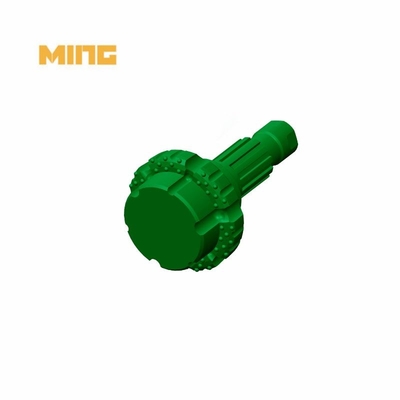

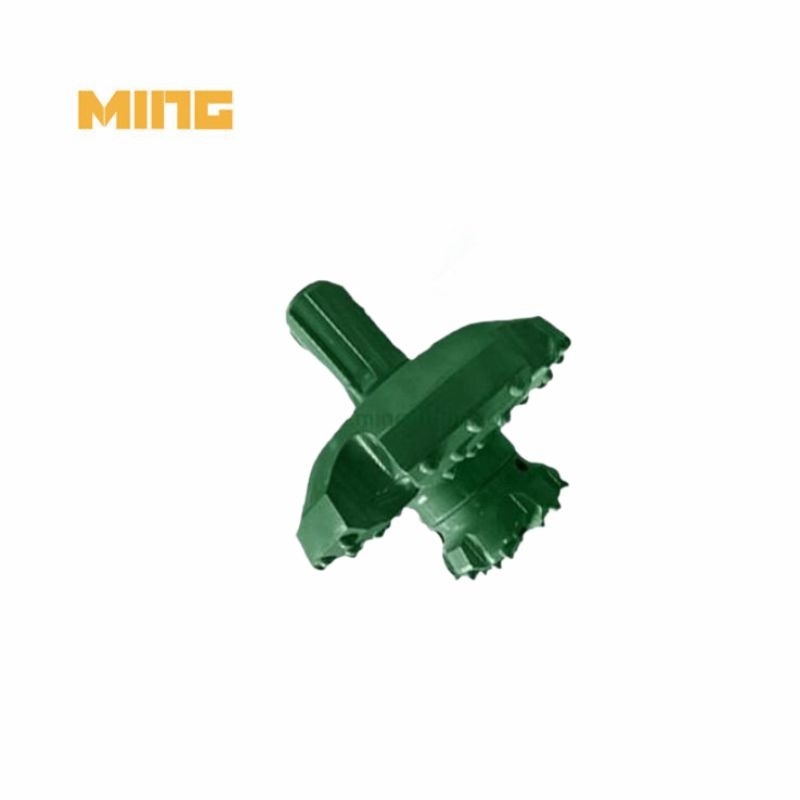

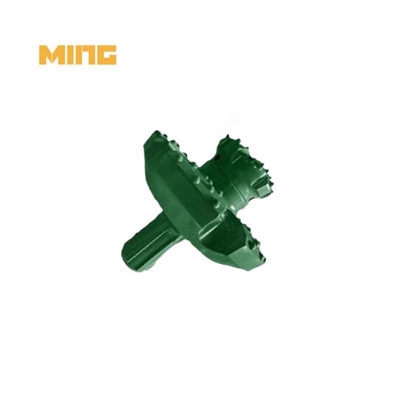

Product name: 165mm DHD360 Shank DTH Hole Opener Drill Bit For Equipment Accessories And Special Tools
Product category: DTH drill bit
Matched connection: DHD360 Shank
Reamer Dia: 165mm
KINGDRILLING DTH thread button bit description:
KINGDRILLLING offers a wide size of DTH hole opener bits, Guide diameter scope from 95mm to 311mm, Reamed diameter scope from 130mm to 444.5mm, DTH hammer size from 3.5”, 5”, 6”, 8”, 12” with all industry DTH hammer shanks for a match.
DTH hammer bit manufacturer KINGDRILLING DTH hole opener bits are manufactured from the highest quality aircraft alloy steel. Which are used to enlarge the size of a pilot hole most commonly for Blast hole drilling, Quarrying, DTH Drilling, Water Well Drilling, Oil Drilling, Construction, Foundation Drilling.
DTH hole opener bit is a superior-grade product designed to meet the demanding needs of drilling operations. Crafted with utmost precision and utilizing high-quality raw materials, this drilling tool ensures exceptional longevity and reliability in the toughest conditions.
Our commitment to excellence begins with our meticulous selection of raw materials. By using only the finest quality materials available, we guarantee the reliability and performance of our DTH hole opener bit. Additionally, our hardened procedures and rigorous quality control measures further enhance the durability of the product, extending its lifespan and reducing maintenance requirements.
KINGDRILLING DTH reamer bit technical parameters:
| Model | Guide Dia.A (mm) | Reamed Dia B (mm) | Qty.× Button Dia (mm) | Shank | Weight (kg) |
|
| Gauge | Front | |||||
| MDO95D3.5 | 95 | 130 | 6×14 2×14 | 4×11 3×11 | DHD3.5 | 8.5 |
| MDO80D3.5 | 80 | 165 | 8×14 | 8×13 6×11 | 15.1 | |
| MDO100D3.5 | 100 | 165 | 8×14 | 4×13 4×12 3×12 | 14.5 | |
| MDO110D3.5 | 110 | 165 | 8×14 | 4×13 | 15.2 | |
| MDO100D4 | 100 | 165 | 8×14 | 4×13 4×12 3×12 | DHD340 | 14.5 |
| MDO115D4 | 115 | 171.5 | 9×16 | 6×14 | 16.1 | |
| MDO75D5 | 75 | 152 | 8×18 | 6×14 2×14 2×14 | DHD350R | 35.2 |
| MDO165D6 | 165 | 191 | 10×16 | 3×14 4×14 | DHD360 | 74.5 |
| MDOD108D6 | 108 | 220 | 10×18 | 12×18 2×14 2×14 | 79.3 | |
| MDO165D6S | 165 | 254 | 12×18 | 12×16 4×14 5×14 | 65.3 | |
| MDO140D8 | 140 | 200 | 10×18 | 8×12 2×14 4×14 | DHD380 | 10.6 |
| MDO188D8 | 188 | 254 | 22×18 | 2×18 | 147.4 | |
| MDO152D8 | 152 | 305 | 14×18 | 10×18 16×16 | 107.8 | |
| MDO210D8 | 210 | 381 | 16×18 | 28×18 | 12.5 | |
| MDO216D12 | 216 | 312 | 18×18 | 15×18 6×16 6×14 | DHD112 | 133.6 |
| MDO254D12 | 254 | 375 | 18×18 | 12×18 15×18 | 136.2 | |
| MDO311D12 | 311 | 444.5 | 18×19 | 15×19 21×19 | 328.5 | |
| MDO350CIR170 | 185 | 350 | 18×18 | 12×18 15×18 | CIR170 | 130 |
Order Guide: Diameter A+ Diameter B +Hammer type
Application:
1. Quarrying drilling
2. Mining exploration drilling
3. Piling and foundation drilling
4. Water well drilling
5. Geothermal drilling
6. Horizontal directional drilling
7. Rock drilling
FAQ:
1. How do I place a product order?
A detailed item description or the model number should be included with your question.
2. What about standard packaging?
A: We will handle it as our regular packing if there isn't a need for special packaging. To ensure that the products are completed, place the tiny carton first, and then the larger carton together.
3. Can I anticipate high-quality goods?
A: In agreement. advanced production technology guaranteeing that the quality meets global standards.
4. How can you make sure the product is precisely what you want?
A: If at all feasible, kindly include a reference image to help clear up any confusion, or provide links to our website for additional information.
5. How to control the quality?
A: We have our own experienced QC team who will strictly inspect and test each order before shipping.
6. Fast delivery time:
A: Usually production takes 25 days. If we have your requested size in stock, it only takes 3 or 5 days.
7.Transportation method:
A: Sample order: We recommend express delivery such as DHL/UPS/TNT/FEDEX or air shipment
Bulk order: We recommend shipping by air or sea.
