Product Details:
|
| Material: | Tungsten Carbide & Steel | Use: | Blasting |
|---|---|---|---|
| Type: | Drill Bit | Machine Type: | Downhole Tools |
| Processing Type: | Forging | Product Name: | Factory Hot Selling DTH Drill Bits |
| Color: | Blue,Golden,other Color Available,Blue And Yellow | Application: | Construction,water Well Drilling |
| Usage: | Hole Drilling | Advantage: | High Performance Rock Drill Bit |
| Standard: | ISO-9001 | Face: | Flat / Convex / Concave |
| Key Words: | Dth Bit | ||
| High Light: | 108mm Hole Opener Drill Bit,DHD360 Hole Opener Drill Bit,Diamond Drilling Hole Opener Bit |
||

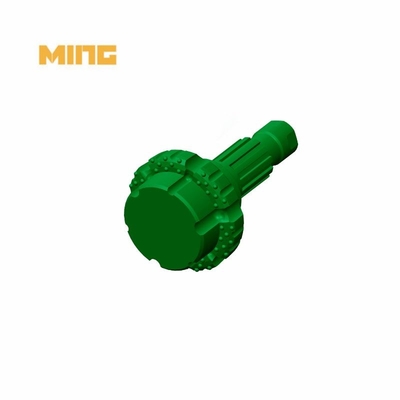

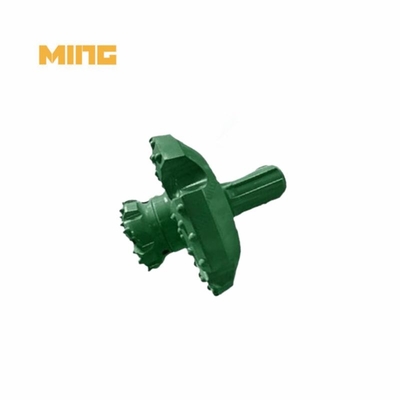

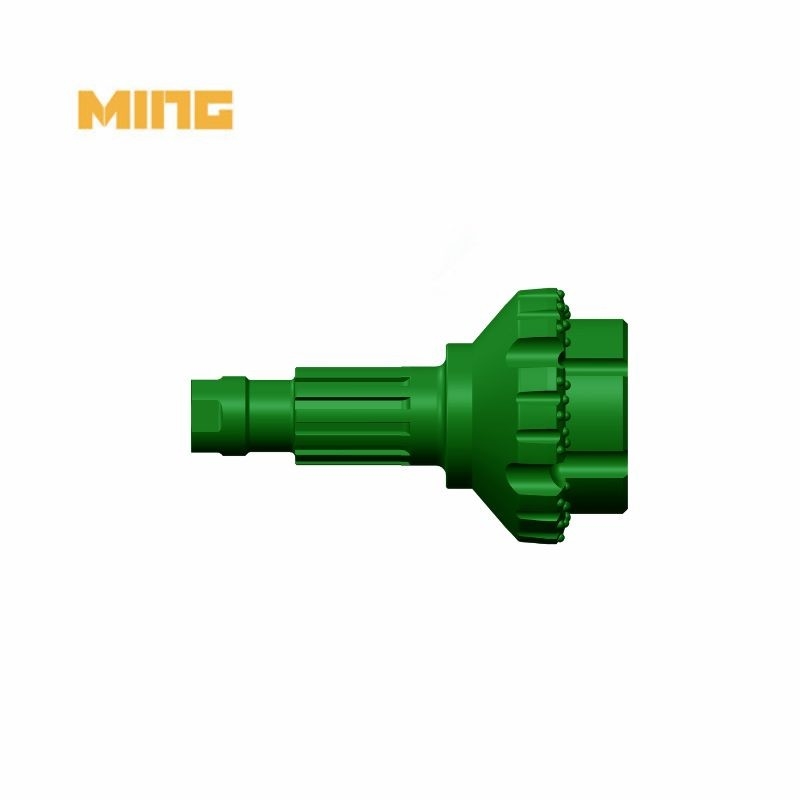

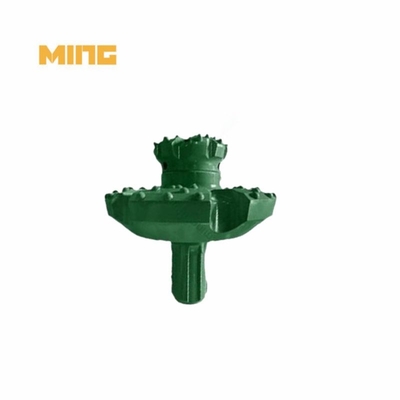

Product name: 108mm DHD360 Shank DTH Hole Opener Drill Bit For Diamond Drilling Machine
Product category: DTH drill bit
Matched connection: DHD360 Shank
Reamer Dia: 108mm
KINGDRILLING DTH thread button bit description:
KINGDRILLLING offers a wide size of DTH hole opener bits, Guide diameter scope from 95mm to 311mm, Reamed diameter scope from 130mm to 444.5mm, DTH hammer size from 3.5”, 5”, 6”, 8”, 12” with all industry DTH hammer shanks for a match.
DTH hammer bit manufacturer KINGDRILLING DTH hole opener bits are manufactured from the highest quality aircraft alloy steel. Which are used to enlarge the size of a pilot hole most commonly for Blast hole drilling, Quarrying, DTH Drilling, Water Well Drilling, Oil Drilling, Construction, Foundation Drilling.
One of the key advantages of choosing our DTH hole opener bit is our comprehensive production chain. From the sourcing of raw materials to the manufacturing process, and finally to delivery, every step is closely monitored and optimized to provide a seamless experience for our customers. This meticulous attention to detail ensures consistent quality and reliability throughout the entire manufacturing process.
Our team consists of highly skilled and experienced senior technicians, engineers, and workers who bring a wealth of knowledge and expertise to the table. With years of industry experience under their belts, our team is well-equipped to tackle any challenges that arise, ensuring that our DTH hole opener bit consistently meets and exceeds industry standards.
KINGDRILLING DTH reamer bit technical parameters:
| Model | Guide Dia.A (mm) | Reamed Dia B (mm) | Qty.× Button Dia (mm) | Shank | Weight (kg) |
|
| Gauge | Front | |||||
| MDO95D3.5 | 95 | 130 | 6×14 2×14 | 4×11 3×11 | DHD3.5 | 8.5 |
| MDO80D3.5 | 80 | 165 | 8×14 | 8×13 6×11 | 15.1 | |
| MDO100D3.5 | 100 | 165 | 8×14 | 4×13 4×12 3×12 | 14.5 | |
| MDO110D3.5 | 110 | 165 | 8×14 | 4×13 | 15.2 | |
| MDO100D4 | 100 | 165 | 8×14 | 4×13 4×12 3×12 | DHD340 | 14.5 |
| MDO115D4 | 115 | 171.5 | 9×16 | 6×14 | 16.1 | |
| MDO75D5 | 75 | 152 | 8×18 | 6×14 2×14 2×14 | DHD350R | 35.2 |
| MDO165D6 | 165 | 191 | 10×16 | 3×14 4×14 | DHD360 | 74.5 |
| MDOD108D6 | 108 | 220 | 10×18 | 12×18 2×14 2×14 | 79.3 | |
| MDO165D6S | 165 | 254 | 12×18 | 12×16 4×14 5×14 | 65.3 | |
| MDO140D8 | 140 | 200 | 10×18 | 8×12 2×14 4×14 | DHD380 | 10.6 |
| MDO188D8 | 188 | 254 | 22×18 | 2×18 | 147.4 | |
| MDO152D8 | 152 | 305 | 14×18 | 10×18 16×16 | 107.8 | |
| MDO210D8 | 210 | 381 | 16×18 | 28×18 | 12.5 | |
| MDO216D12 | 216 | 312 | 18×18 | 15×18 6×16 6×14 | DHD112 | 133.6 |
| MDO254D12 | 254 | 375 | 18×18 | 12×18 15×18 | 136.2 | |
| MDO311D12 | 311 | 444.5 | 18×19 | 15×19 21×19 | 328.5 | |
| MDO350CIR170 | 185 | 350 | 18×18 | 12×18 15×18 | CIR170 | 130 |
Order Guide: Diameter A+ Diameter B +Hammer type
Application:
1. Quarrying drilling
2. Mining exploration drilling
3. Piling and foundation drilling
4. Water well drilling
5. Geothermal drilling
6. Horizontal directional drilling
7. Rock drilling
FAQ:
1. How can I order a product?
Your question should be supported by the model number or a thorough item description.
2. How about conventional packaging?
A: If special packaging is not required, we will handle it as part of our standard packing. Place the little carton together first, followed by the larger carton, to make sure the products are finished.
3. Can I expect products of a high caliber?
A: Agreed. cutting-edge production technologies ensuring that the product satisfies international standards for quality.
4. How can you confirm that the item is exactly what you ordered?
A: If possible, please send links to our website for more information or a reference image to help clear up any misunderstandings.
5. How to control the quality?
A: We have our own experienced QC team who will strictly inspect and test each order before shipping.
6. Fast delivery time:
A: Usually production takes 25 days. If we have your requested size in stock, it only takes 3 or 5 days.
7.Transportation method:
A: Sample order: We recommend express delivery such as DHL/UPS/TNT/FEDEX or air shipment
Bulk order: We recommend shipping by air or sea.
