Product Details:
|
| Material: | Tungsten Carbide & Steel | Use: | Blasting |
|---|---|---|---|
| Type: | Drill Bit | Machine Type: | Downhole Tools |
| Processing Type: | Forging | Product Name: | Factory Hot Selling DTH Drill Bits |
| Color: | Blue,Golden,other Color Available,Blue And Yellow | Application: | Construction,water Well Drilling |
| Usage: | Hole Drilling | Advantage: | High Performance Rock Drill Bit |
| Standard: | ISO-9001 | Face: | Flat / Convex / Concave |
| Key Words: | Dth Bit | ||
| High Light: | DHD380 Hole Opener Drill Bit,140mm Hole Opener Drill Bit,Construction Equipment Hole Opener Bit |
||

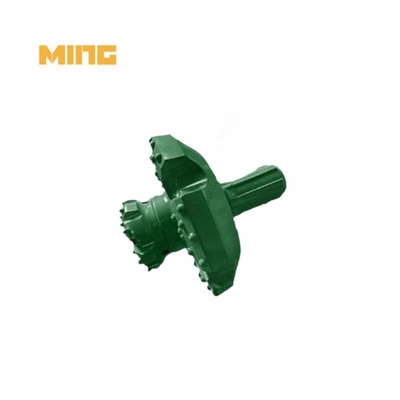

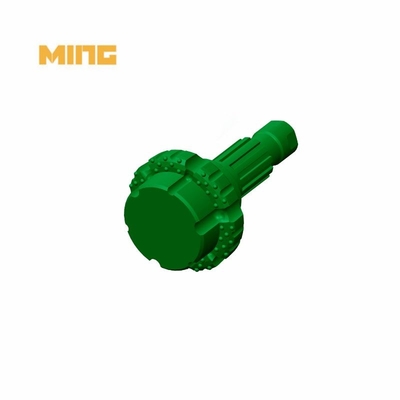

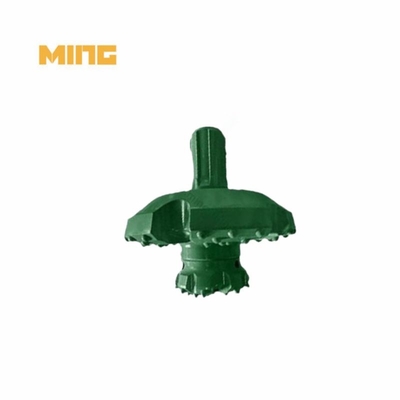

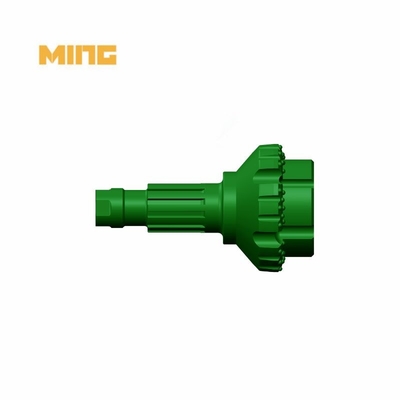

Product name: 140mm DHD380 Shank DTH Hole Opener Drill Bit For Construction Equipment
Product category: DTH drill bit
Matched connection: DHD380 Shank
Reamer Dia: 140mm
KINGDRILLING DTH thread button bit description:
KINGDRILLLING offers a wide size of DTH hole opener bits, Guide diameter scope from 95mm to 311mm, Reamed diameter scope from 130mm to 444.5mm, DTH hammer size from 3.5”, 5”, 6”, 8”, 12” with all industry DTH hammer shanks for a match.
DTH hammer bit manufacturer KINGDRILLING DTH hole opener bits are manufactured from the highest quality aircraft alloy steel. Which are used to enlarge the size of a pilot hole most commonly for Blast hole drilling, Quarrying, DTH Drilling, Water Well Drilling, Oil Drilling, Construction, Foundation Drilling.
DTH hole opener bit - your ultimate solution for high-quality drilling needs. Made with the finest raw materials and hardened procedures, this drilling tool guarantees exceptional durability for long-lasting performance.
With a full production chain in place, we have complete control over every aspect of the manufacturing process, ensuring the highest standards of quality are maintained at every step. Our team consists of experienced senior technicians, as well as long-year experienced workers and engineers, who bring their expertise to deliver the best drilling solutions.
Competitive pricing is another advantage of choosing our DTH hole opener bit. We believe in providing high-quality products at affordable prices, ensuring that you receive the best value for your investment.
KINGDRILLING DTH reamer bit technical parameters:
| Model | Guide Dia.A (mm) | Reamed Dia B (mm) | Qty.× Button Dia (mm) | Shank | Weight (kg) |
|
| Gauge | Front | |||||
| MDO95D3.5 | 95 | 130 | 6×14 2×14 | 4×11 3×11 | DHD3.5 | 8.5 |
| MDO80D3.5 | 80 | 165 | 8×14 | 8×13 6×11 | 15.1 | |
| MDO100D3.5 | 100 | 165 | 8×14 | 4×13 4×12 3×12 | 14.5 | |
| MDO110D3.5 | 110 | 165 | 8×14 | 4×13 | 15.2 | |
| MDO100D4 | 100 | 165 | 8×14 | 4×13 4×12 3×12 | DHD340 | 14.5 |
| MDO115D4 | 115 | 171.5 | 9×16 | 6×14 | 16.1 | |
| MDO75D5 | 75 | 152 | 8×18 | 6×14 2×14 2×14 | DHD350R | 35.2 |
| MDO165D6 | 165 | 191 | 10×16 | 3×14 4×14 | DHD360 | 74.5 |
| MDOD108D6 | 108 | 220 | 10×18 | 12×18 2×14 2×14 | 79.3 | |
| MDO165D6S | 165 | 254 | 12×18 | 12×16 4×14 5×14 | 65.3 | |
| MDO140D8 | 140 | 200 | 10×18 | 8×12 2×14 4×14 | DHD380 | 10.6 |
| MDO188D8 | 188 | 254 | 22×18 | 2×18 | 147.4 | |
| MDO152D8 | 152 | 305 | 14×18 | 10×18 16×16 | 107.8 | |
| MDO210D8 | 210 | 381 | 16×18 | 28×18 | 12.5 | |
| MDO216D12 | 216 | 312 | 18×18 | 15×18 6×16 6×14 | DHD112 | 133.6 |
| MDO254D12 | 254 | 375 | 18×18 | 12×18 15×18 | 136.2 | |
| MDO311D12 | 311 | 444.5 | 18×19 | 15×19 21×19 | 328.5 | |
| MDO350CIR170 | 185 | 350 | 18×18 | 12×18 15×18 | CIR170 | 130 |
Order Guide: Diameter A+ Diameter B +Hammer type
Application:
1. Quarrying drilling
2. Mining exploration drilling
3. Piling and foundation drilling
4. Water well drilling
5. Geothermal drilling
6. Horizontal directional drilling
7. Rock drilling
FAQ:
1. How can I order a product?
Your question should be supported by the model number or a thorough item description.
2. How about conventional packaging?
A: If special packaging is not required, we will handle it as part of our standard packing. Place the little carton together first, followed by the larger carton, to make sure the products are finished.
3. Can I expect products of a high caliber?
A: Agreed. cutting-edge production technologies ensuring that the product satisfies international standards for quality.
4. How can you make sure the product is precisely what you ordered?
A: To help avoid misconceptions, if at all feasible, give links to our website for further details or a reference photo.
5. How can the quality be managed?
A: Every order will be thoroughly inspected and tested by our own team of skilled quality control personnel prior to shipment.
6. Quick delivery:
A: Production typically takes 25 days. If your desired size is in stock, it will arrive in 3 or 5 days.
7. Mode of transportation:
A: An example of an order We advise air shipment or expedited delivery options like DHL, UPSS, TNT, or FEDEX.
Bulk order: Air or sea shipment is advised.
