Product Details:
|
| Material: | Carbon Steel,High Manganese Steel,Carbide | Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Overburden Casing Drilling System | Machine Type: | Drilling Tool,Drilling Equipment |
| Processing Type: | Forging,Machining Process | Product Name: | MXH Overburden Casing Drilling Bit System |
| Color: | Gold,Request,Yellow,Red | Application: | Construction,mining Or Welling Drilling |
| Usage: | Mining&Construction&Water Well Drilling | Advantage: | High Performance,High-efficiency,Widely Used Hard Rocks And Have Good Penetration |
| Model Type: | NUMA | Item: | Overburden Drilling Casing System |
| Hammer Type: | Overburden Drilling System | Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat |
| Advantages: | High Strength,High Performance,High Quality And Factory Prices | ||
| High Light: | Down The Hole Overburden Drilling System, Quarry Overburden Drilling System, 635mm Down The Hole Hammer Bits | ||

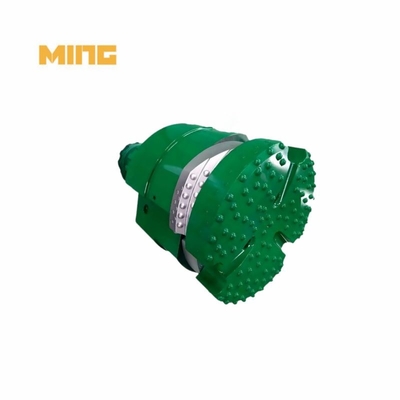

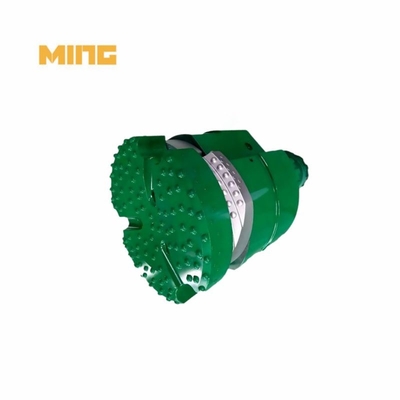

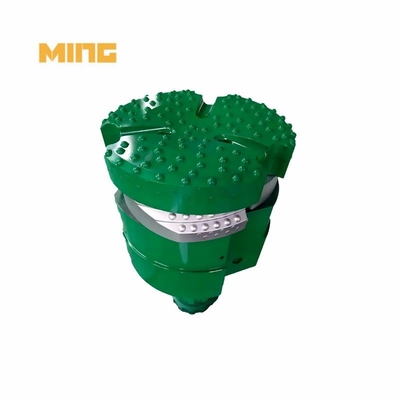

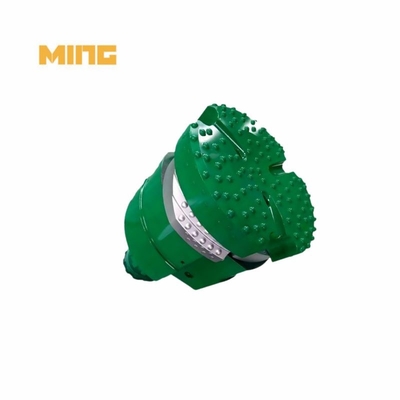

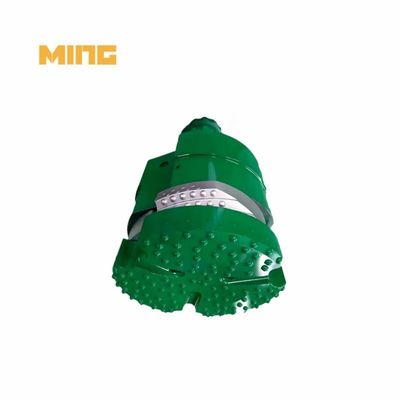

Product name: 635mm N180 Shank MXH Overburden Casing Drilling Bit System For Rock Formation Drilling
Product category: horizontal directional drilling bit
Matched hammer: Hammer N180
Matched casing pipe OD: 610mm
Kingdrilling drilling solutions are designed to deliver industry-leading returns in sample quality and drilling productivity in the exploration for gold, silver, platinum, copper, nickel, iron ore, and other base metals.
Supported by on-site support and consultation from our expert regional teams, kingdrilling systems have earned their reputation as The Driller’s Choice.
MXH Overburden Casing Drilling bit, a powerful tool designed for optimal performance and superior drilling efficiency. With its advanced structural optimization, this MXH Overburden Casing Drilling bit ensures enhanced structural strength and simplified operation, making it the perfect choice for a wide range of drilling applications.
Featuring cutting-edge technology, the MXH Overburden Casing Drilling bit excels in delivering high drilling speeds while maintaining stable and reliable performance. Its exceptional performance is attributed to its precision engineering, allowing for efficient and precise drilling in various materials.
MXH Overburden Casing Drilling Bit technical parameters:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MXH610/560-N180 | 635 | 610*584 | N180 |
| MXH813/750-N240 | 838 | 813*780 | N240 |
| MXH1020/940-N240 | 1090 | 1020*994 | N240 |
How to order:
Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Other size of MXH system is available upon customer's request
FAQ:
1. What does drilling casing mean?
A drilled oil well's casing is a network of steel pipes that are inserted into the well to stabilize it, keep impurities and water out of the oil stream, and stop oil from seeping into the groundwater. Installing casing involves layering it in portions of progressively smaller diameter that are connected to create casing strings.
2. What distinguishes microtunneling from HDD?
Microtunnelling is a pit-launched technology that is very accurate and low-risk, but it needs a substantial initial investment. However, because HDD is surface launched, it is less expensive than microtunnelling. However, the risk is higher because it's less precise and there can be flex in the pipeline.
3. What are the advantages of directional drilling?
When replacing subterranean plumbing, directional drilling is far more economical than trenching a replacement. Since it employs less machinery than a traditional method and requires significantly less time overall, there will be far less dirt to replace once the project is completed. Reduced cost equates to fewer machines.
4. How does horizontal drilling do less damage to landscape?
Horizontal directional drilling is a trenchless solution that is being used more and more to limit environmental damage. With horizontal drilling, you can keep lawns and landscaping intact. This works great for more sensitive, well-manicured spaces, such as golf courses.
