Product Details:
|
| Machine Type: | Drilling Tool,Drilling Equipment | Material: | High Manganese Steel,Tungsten Carbide And High Quality Alloy Steel |
|---|---|---|---|
| Processing Type: | Forging | Use: | Well Drilling,Mining & Water Well Drilling |
| Type: | Concentric Casing Drilling System | Color: | Golden,Request,Red,blue,Gold |
| Product Name: | Concentric Casing System,Slide Block Overburden Casing Drilling | Application: | Quarry,Well Drilling,Water Well |
| Advantage: | High Performance,High-efficiency | Packing: | Wooden Case |
| Usage: | Hole Drilling,Underground Mining,Well Drilling | Name: | Symmetrix Overburden Casing Drilling System With Ring Bits Permanent,symetrix |
| Item: | Concentric Overburden Casing Drilling System | Model Type: | DHD360 Hammer |
| High Light: | 215mm Concentric Casing Drilling System, Overburden Casing Drilling System | ||

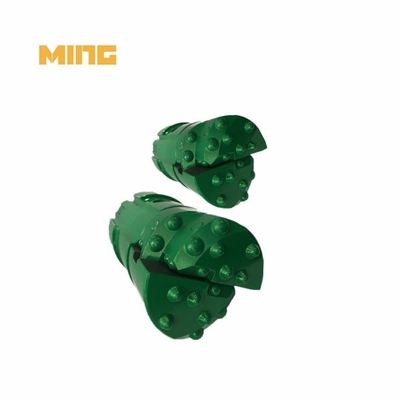

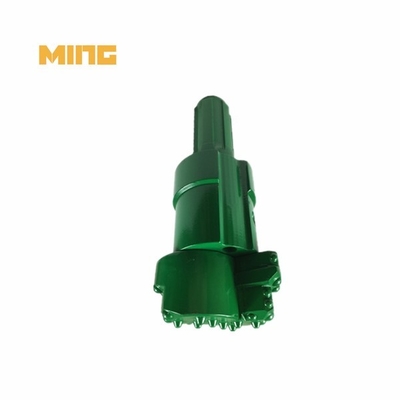

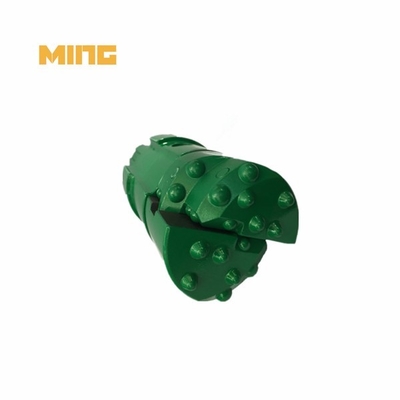

Product Name: 215mm MRE165 DHD360 Hammer Shank Symmetric Concentric Casing Drilling System For Rock Formation
Matched hammer: Hammer DHD360
Matched casing pipe OD: 165mm
MRE Concentric under reaming drilling system
MRE Concentric under Casinging Drilling System is designed for unstable ground conditions. In the process of drilling, it could carry down the casing pipe to the hole to protect wall to achieve drilling work. At clockwise condition, eccentric part expanded to bring the casing tube into hole. After finished, eccentric bit closed anticlockwise and then can be lift up by the drilling machine. This type is especially suitable for diameter 114-273mm.
One of the standout features of this MRE bit is its ability to provide a high working efficiency. The precise design and construction of the bit allow for seamless operation, minimizing downtime and maximizing output. With the MRE Bit, you can rely on its consistent performance, enabling you to tackle even the toughest drilling projects with ease.
Furthermore, customization options are available, catering to specific drilling requirements. Whether it's a specific size or a particular type of material, our team can tailor the MRE Bit to meet your individual needs. This versatility ensures optimal performance and enhances your overall drilling experience.
| Model | Hole dia (mm) | Weight (KG) | Closed dia. (mm) | Pilot dia.(mm) | Length (mm) | Case dia (OD*ID) | Spline |
| MK-MRE90 | 125 | 16 | 90 | 100 | 360 | 114*102 | MACH33,DHD3.5 |
| MK-MRE115 | 155 | 30 | 115 | 125 | 510 | 139*127 | DHD340,SD4.QL4 |
| MK-MRE140 | 188 | 52 | 140 | 151 | 570 | 168*153 | DHD350,SD5,QL5 |
| MK-MRE165 | 215 | 95 | 166 | 178 | 690 | 194*181 | DHD360,SD6,QL6 |
| MK-MRE190 | 238 | 108 | 190 | 203 | 690 | 219*206 | DHD360,SD6,QL6 |
| MK-MRE215 | 276 | 140 | 215 | 236 | 720 | 254*240 | DHD380,SD8,QL8 |
| MK-MRE235 | 293 | 160 | 236 | 251 | 730 | 273*254 | DHD380,SD8,QL8 |
| MK-MRE240 | 293 | 168 | 241 | 256 | 730 | 273*260 |
DHD380,SD8,QL8 |
Advantages :
1.Improved steel grade for better fatigue properties
2.Five basic front designs
3.Designs for all rock types
Product Application:
It is suitable for drilling water wells, geothermal wells, short micro piles,medium mini-type grouting hole of building, demand harbor project.
What we can do for you:
1. High quality: Many large Chinese factories are our partners. We are able to offer you the highest caliber merchandise.
2. Competitive pricing: Due to direct factory pricing, the price is competitive.
3. Quick delivery: the production process typically takes 20 days.merely three or five days if the size of your order is in stock.
4. The best quality control is provided by our in-house, skilled QC staff. Every order will undergo a rigorous inspection and testing process before being shipped.
5. Competence to address problems: This competence stems from dependable sales and extensive expertise in the drill bit sector.
6. OEM and OEM service: We'll take good care of your personal product inquiries.
7. Best after service: If necessary, we will visit your home to assess the situation and address any issues.
Feature:
1. Premium steel components.
2. The cutting-edge electron-hydraulic forging hammer is used to forge Kingdrilling DTH tools.
3. Multipurpose furnace heat treatment is an example of advanced heat treatment equipment.
4. Fully functional molding (tooling) departments with a large inventory of molds.
5. A skilled research and development team, a finished quality system, and stringent quality assurance procedures.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Shipping way:
A: Sample order: we suggest Courier express delivery such as DHL/UPS/TNT/FEDEX or by air
Bulk order: by air or by sea we suggest.
8. Competitive price:
A:KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor!
