Product Details:
|
| Material: | Carbon Steel,High Manganese Steel,Carbide | Use: | Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Drilling Tool,Drilling Equipment |
| Processing Type: | Forging | Product Name: | Concentric Casing System,odex Drilling System |
| Color: | Gold,Request,Yellow,Red | Application: | Quarry,construction,mining,water Well Drilling,mining Or Welling Drilling |
| Usage: | Mining&Construction&Water Well DrillingHole Drilling,Mining&Construction&Water Well Drilling | Advantage: | High Performance,High-efficiency |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | Overburden Concentric Casing Drilling System |
| Item: | Drilling Hammer Bit Eccentric Overburden Systems,Overburden Drilling Casing System | Hammer Type: | DHD3.5 DHD340 DHD350 DHD360 DHD380 DHD110 DHD112,SD-6,QL60 |
| Button Shape: | Domed Buttons,Spherical/Ballistic/Parabolic/Sharp/Flat,and Ballistic Shapes Buttons | Advantages:: | High Strength,hign Abrasion Risistance,High Performance,High Quality And Factory Prices |
| High Light: | 373mm Overburden Casing Drilling System, MRS Overburden Casing Drilling System, Symmetric Casing Drilling Bit | ||

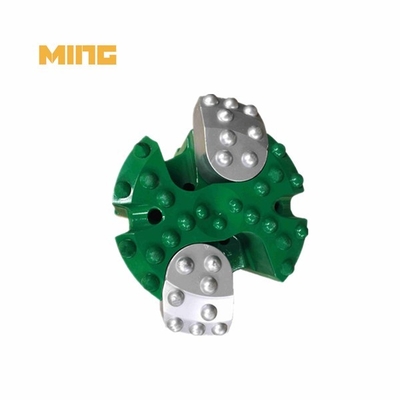

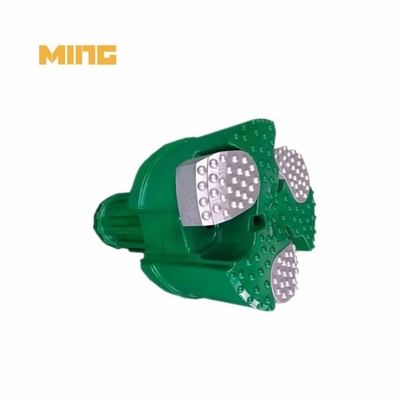

Product name: 373mm MRS315 Overburden Concentric Casing Drilling System Bit With N120 Shank For Quarry
OD of casing pipe: 315mm
MRS Concentric Casing Drilling Bit – The Ultimate Solution for High Performance Drilling. Experience the cutting-edge technology and precision engineering with our MRS Drill Bit. Designed with structural optimization and high strength, this powerful tool ensures superior performance, exceptional reliability, and high drilling speed for all your drilling needs.
The MRS Drill Bit is built with structural optimization in mind, resulting in a product that delivers exceptional strength and durability. Its robust design enables it to withstand even the toughest drilling conditions, making it perfect for a wide range of applications.

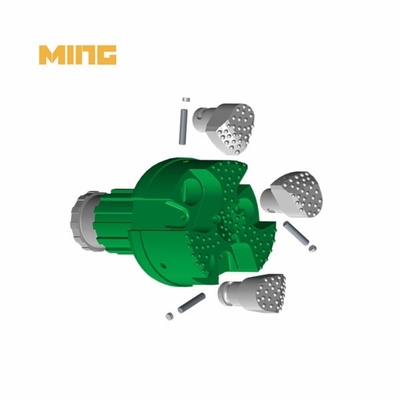

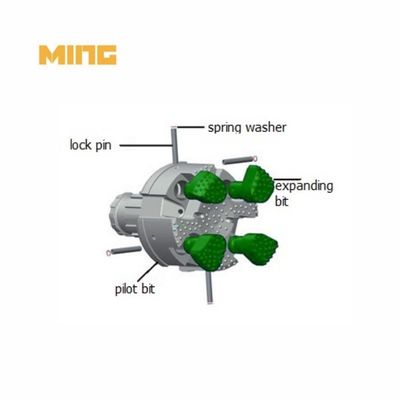

Product components:
1. Pilot bit+3PCS wiggle wings+casing shoe
2. Pilot bit+4PCS wiggle wings+casing shoe
Production details:
| Model | Hole dia.(mm) | Weight (KG) | Closed dia(mm) | Pilot dia (mm) | Total length (mm) | Case Dia (OD*ID) | Spline |
| MK-MRS190 | 238 | 80 | 190 | 203 | 550 | 219*206 | DHD360,QL6,SD6 |
| MK-MRS215 | 276 | 100 | 215 | 236 | 590 | 254*240 | DHD380,QL8,SD8 |
| MK-MRS235 | 293 | 110 | 236 | 251 | 590 | 273*254 | DHD380,QL8,SD8 |
| MK-MRS240 | 293 | 115 | 241 | 256 | 590 | 273*260 | DHD380,QL8,SD8 |
| MK-MRS280 | 345 | 180 | 280 | 300 | 740 | 323*302 | SD10 |
| MK-MRS315 | 373 | 240 | 315 | 336 | 1050 | 356*337 | N120 |
| MK-MRS365 | 432 | 350 | 365 | 381 | 1100 | 406*387 | N120,N125 |
| MK-MRS410 | 478 | 460 | 412 | 430 | 1100 | 457*435 | N125 |
| MK-MRS460 | 530 | 585 | 460 | 475 | 1100 | 508*483 | N125,SD18 |
| MK-MRS510 | 580 | 860 | 509 | 527 | 1180 | 559*533 | N180,SD18 |
| MK-MRS560 | 635 | 910 | 560 | 581 | 1180 | 610*584 | N180,SD18 |
| MK-MRS610 | 695 | 1100 | 600 | 630 | 1200 | 660*632 | N240 |
| MK-MRS660 | 735 | 1200 | 656 | 681 | 1207 | 711*685 | N240 |
| MK-MRS710 | 785 | 1480 | 710 | 730 | 1207 | 762*736 | N240 |
| MK-MRS745 | 838 | 1650 | 745 | 776 | 1207 | 813*780 | N240 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Other size of MRS system is available upon customer's request
Product Application:
It is suitable for drilling water wells , geothermal wells , short micro piles ,medium mini-type grouting hole of building , dam and harbour project.
RFQ:
1. What is drilling with odex?
The air-operated down-the-hole hammer is adapted as ODEX. It reams the bottom of the casing with a swing-out eccentric bit. Cuttings emerge via the casing annulus and drive sub, passing through a swivel and onto the ground or a sample collector. Quick removal of the cuttings.
2. What PSI is required for air tools?
In the range of 70 to 90 PSI
The majority of air tools require 70–90 PSI. Ninety PSI can be easily reached by any light-to-medium duty air compressor, but you should always have the compressor producing more flow than is required. Expert Advice: Never disregard a PSI rating. Insufficient air volume will cause the tool to function improperly.
3. How does a casing advancer Work?
The Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation. This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.
