Product Details:
|
| Material: | High Manganese Steel | Use: | Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Eccentic Casing Drilling System, Overburden Casing Drilling System | Machine Type: | Drilling Tool |
| Product Name: | Eccentric Drill Bits | Color: | Gold,Request,Yellow,Red |
| Application: | Construction, Water Well Drilling | Usage: | Mining&Construction&Water Well DrillingHole Drilling,Mining&Construction&Water Well Drilling |
| Advantage: | High Performance,Widely Used Hard Rocks And Have Good Penetration | Model Type: | Cop,Halco,DHD,Mission,NUMA |
| Name: | Eccentric Casing Drilling System | Item: | Eccentric Casing Drilling System, Overburden Casing Drilling System |
| Hammer Type: | Overburden Casing Drilling System | Standard: | ISO 9000 |
| Advantages: | High Strength,High Quality And Factory Prices | ||
| High Light: | 195mm Overburden Casing Drilling System, MK3E Eccentric Casing Drilling System | ||

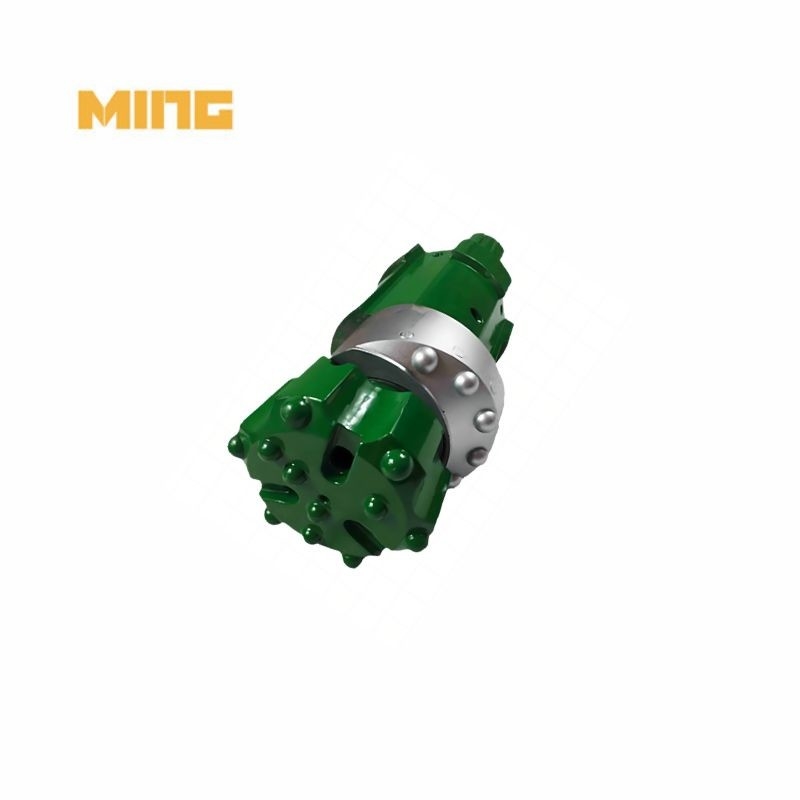

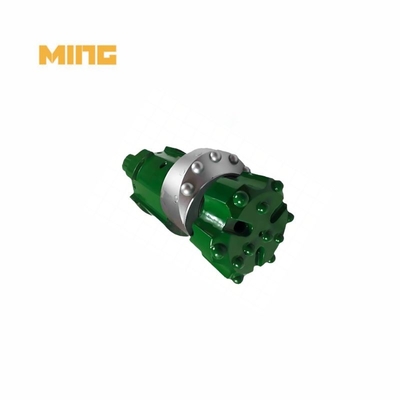

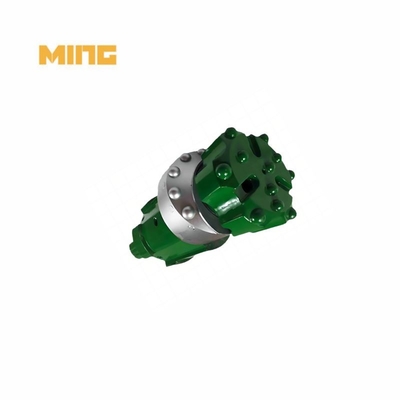

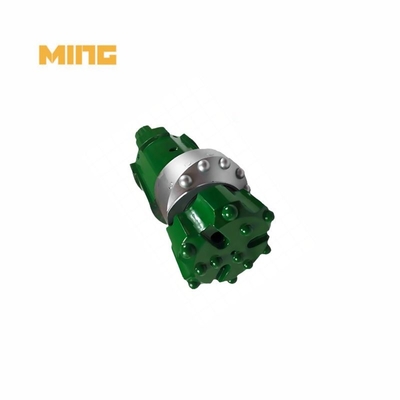

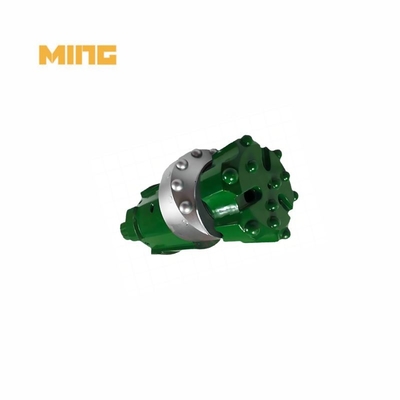

Product name: 195mm MK3E178 Eccentric Overburden Casing Drilling System Bit For Exploration Drilling
Casing pipe OD: 178mm
MK3E Casing Drilling Bit has a positive pilot design which helps guide the eccentric bit and produce a straighter hole. When they has been drilled to the required depth, the eccentric bit can be closed to its concentric position by pulling up against the casing shoe and counter rotating the bit holder is fitted into the hammer in the same way as a conventional.
MK3E Overburden Casing Drilling Bit - a superior drilling tool designed to deliver outstanding performance and durability. Crafted from high-quality raw materials, this drill bit undergoes premium hardened procedures to ensure an extended lifespan, making it an ideal choice for your drilling needs.
MK3E Drill Bit - the ultimate choice for all your drilling needs. With its unmatched structural optimization, this drill bit is designed to deliver exceptional performance, ensuring fast driving speed and superior results.
The key to the MK3E Drill Bit's success lies in its advanced structural optimization. Through meticulous engineering, this drill bit is precisely crafted to maximize efficiency and durability. This means you can rely on its stable and reliable performance even in the toughest drilling conditions.
Product components:
Pilot bit + middle reamer bit + casing shoe
Production details:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MK3E108 | 118 | 93-99 | 90 |
| MK3E127 | 136 | 115-117 | 110 |
| MK3E146 | 152 | 130-134 | 110/340 |
| MK3E168 | 185 | 148-156 | 110/340 |
| MK3E178 | 195 | 158-166 | 150/340 |
| MK3E183 | 196 | 168-176 | 350/360 |
| MK3E193 | 206 | 176-182 | 360 |
| MK3E219 | 236 | 199-207 | 360 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Products application:
It can be used in foundation construction, Piling, Water Well and Geothermal, Tunneling and Horizontal drilling. Specially the rock formation is not stable with fractures.
RFQ:
1. What does surface casing serve as?
The purpose of the surface casing is to prevent lost circulation, segregate water sands, and guard against blowouts. Additionally, it typically offers enough shoe strength to drill into transition zones with high pressure.
2. Explain what a burden mine is.
The material that lies above a region that lends itself to economically viable exploitation, such as the rock, soil, and ecology that lies above a coal seam or ore body, is referred to in the mining industry as overburden (sometimes called trash or spoil).
3. Shipping way.
Example order: We recommend courier express delivery via air or train, such as DHL, UPS, or FEDEX.
Bulk order: We recommend shipping by sea or air.
4. Following the services.
1. Our sales staff will respond to your inquiry in a day (excluding holidays).
2. Technical Support will be available in any time.
Products manufacturing:
