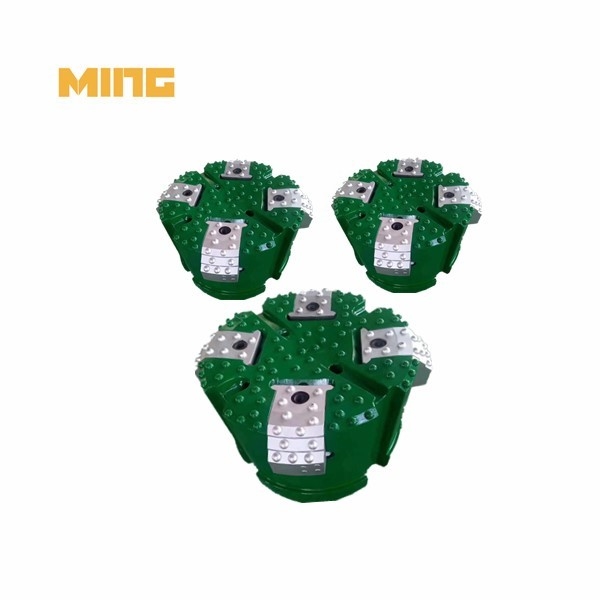

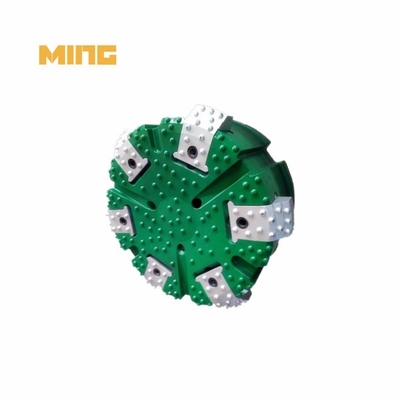

635mm MNX560 Concentric Symmetric Casing Drilling System Bits For Diamond Drilling Tools

Product name: 635mm MNX560 Concentric Symmetric Casing Drilling System Bits For Diamond Drilling Tools

Product category: Concentric Casing Drilling Bit

Matched hammer: Hammer N180

Matched casing pipe OD: 560mm

MNX concentric casing drilling system consists of pilot bits and slider bits. The principle as below: pilot bits press down, at the same time, wings opened to carry casing tube into a hole. After finished, lift up the pilot bit then the wings will be closed. It is suitable for 406-813mm tube in diameter.

Durability is the backbone of any reliable tool, and the MNX System exceeds expectations. Crafted from top-notch materials and subjected to rigorous testing, it boasts a long service life to accompany you through many projects to come. Invest in quality that lasts – this drill bit is ready to withstand the test of time.

Choose the MNX System and experience a whole new level of drilling excellence. With its high drilling quality, fast driving speed, high working efficiency, and long service life, this professional-grade tool is a must-have for every discerning craftsman. Elevate your drilling game today!

MNX overburden symmetric casing drilling bit features:

1. High quality steels materials.

2. Kingdrilling DTH tools are forged by advanced electron-hydraulic forging hammer.

3. Advanced heat-treatment equipment: multipurpose furnace heat treatment.

4. Completed moulding (tooling ) departments with many molds available.

5. Professional R&D team,completed quality system. Strict Quality-Check Systems.

MNX overburden symmetric casing drilling bit components:

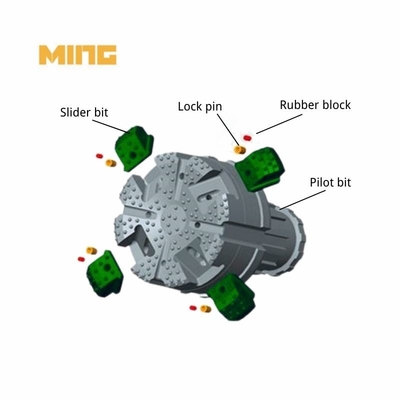

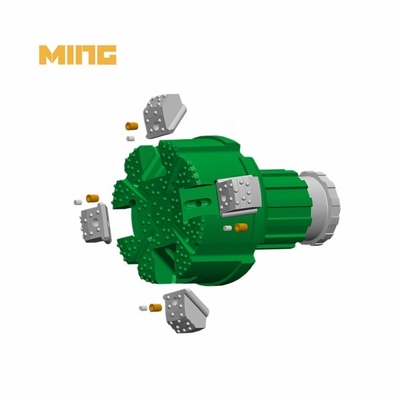

Pilot bit+4PCS Slide blocks+casing shoe

MNX overburden symmetric casing drilling bit technical parameters:

Order Guide: Casing Tube OD + Casing Tube ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style

Other size of MRS system is available upon customer's request

MNX overburden symmetric casing drilling bit Applications:
1. Water well drilling (consolidation of well heads, polluted groundwaters exclusion, ...)
2. Geothermal drilling
3. Civil engineering (anchorages, injections, road crossing, ...)
4. Mining exploration(pilot hole for core drilling, study of groundwaters

FAQ:

1. What is drill casing?
A big diameter pipe called a casing is built and fitted into a borehole's recently dug segment. Comparable to the vertebrae shielding the spinal cord, casing is inserted into the bored hole to support and shield the wellstream.

2. What is the significance of overburden?
In a petroleum system, overburden rock rests on top of source rock and helps with thermal maturation because deeper depths have greater temperatures. The age and thickness of the overlaying rock impact the burial rate, which in turn affects the heating rat.

3. Where is the overburden placed?
Massive volumes of overburden produced by surface mines are typically used to remediate and restore the area from which they were originally extracted. Restoring the natural positions of the sand, rock, and clay aids in leveling the soil and promotes the resurgence of plant life.

Product Manufacturing:
