Product Details:
|
| Application: | Ground Engineering | Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization |
|---|---|---|---|
| Product Name: | Rical Engineering Low Pressure Dth Hammers Down The Hole Drill Pdc Bit | Hammer Material: | Carboon Steel,High Carbon Steel |
| Hammer Type: | DTH HAMMER, Down The Hole Hammers | After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available |
| Warranty: | 1 Year | Material: | Carbon Steel,high Quality Alloy Steel |
| Type: | Deep Hole Drilling Tools | Certification: | ISO9001 |
| Processing Type: | Forging | Usage: | Quarry |
| Quality: | Top Brand China | Air Consumption: | 0.5-2.5Mpa |
| Oem: | YES | ||
| High Light: | CIR170 DTH Drill Hammer,CIR170 Down The Hole Hammer,Forging Down The Hole Hammer |
||

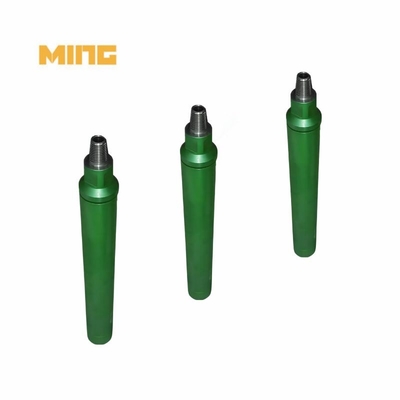

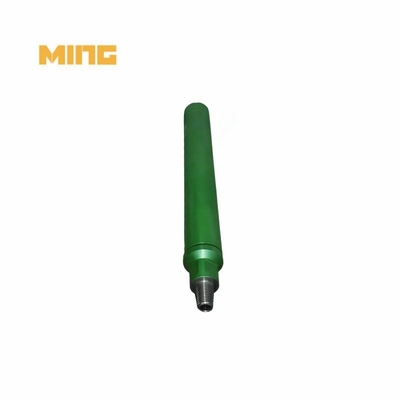

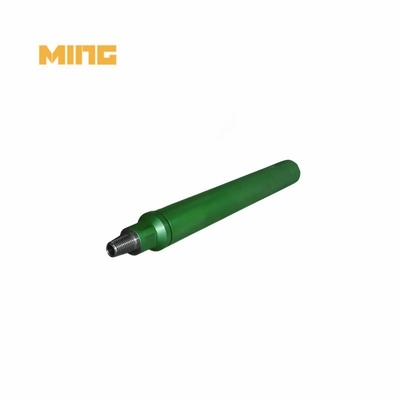

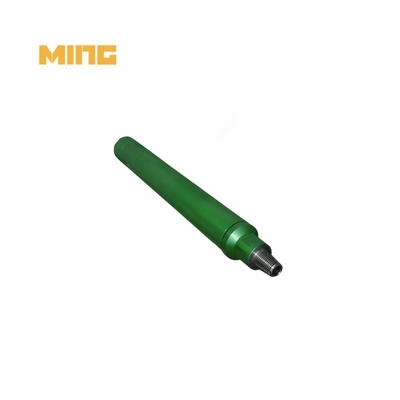

Product name: CIR170 Down The Hole Low Air Pressure DTH Drill Hammer For Medium Mini-Type Grouting Hole Of Building
Product category: Down The Hole Hammer
Connection thread: F70*10BOX
Working pressure(bar): F100*28PIN
Hole range(mm): 170~250
Outer diameter: 156
Weight(KGS): 96kg
CIR170 Low Air Pressure DTH Drill Hammer - the epitome of structural optimization and superior performance in drilling equipment. Engineered with precision and designed for professionals, this drill bit sets a benchmark for reliable and efficient drilling.
CIR shank low air pressure DTH hammer details:
For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mineral, DTH, Piling, water well drilling and blasting operations.
| Model | OD (mm) | Hole range (mm) | Length (mm) | Connection Thread | Working pressure (Bar) | Air Consumption (CFM) | Weight (KG) |
| MHCIR65 | 61 | 70 | 745 | F42*10PIN | 4~10 | 212~353 | 13 |
| MHCIR70 | 65 | 76 | 750 | F48*10PIN | 4~10 | 212~353 | 13.5 |
| MHCIR90 | 80 | 90~120 | 460 | F48*10PIN | 4~12 | 282~424 | 21 |
| MHCIR110 | 98 | 110~150 | 870 | PIN2-3/8"REG BOX | 6~12 | 282~424 | 33 |
| MHCIR130 | 112 | 130~175 | 890 | PIN2-3/8"REG BOX | 6~12 | 282~424 | 46 |
| MHCIR150 | 136 | 150~200 | 904 | F70*10BOX | 6~12 | 353~565 | 70 |
| MHCIR170 | 156 | 170~250 | 1030 | F100*28PIN | 8~14 | 424~635 | 96 |
| MHCIR200 | 182 | 200~250 | 1058 | F100*28PIN | 8~14 | 565~706 | 130 |
How to order:
Shank Type + Top Sub Thread
DTH Hammer advantages:
1. A hammer with a high frequency design for quicker penetration,
2. Enhanced steadiness
3. a more straightforward structure
4. Less damage to delicate electronics
5. Prefabricated kingdrilling heat treatment techniques
FAQ:
1. What exactly is a hole hammer?
A pneumatic down-the-hole (DTH) hammer is a pneumatic drilling tool that is powered by compressed air. It can be used to drill in pebble, gravel, and hard rock layers. It is frequently employed in the construction of building pile foundations, bridges, mineral, geological research, hydrological wells, and other fields.
2. What is the distinction between top hammer and down-the-hole drilling?
The major distinction between top hammer and down-the-hole drilling methods is the position of the hammer. During the down-the-hole drilling technique, the hammer in the industrial equipment makes contact with the bit. Top hammer drilling focuses the action at the very top of the drill string.
3.Can you bore through rock in a directed manner?
The creation of the technology, on the other hand, was one of the most crucial milestones in the growth of HDD. As technology has improved, midsize drilling equipment is now capable of drilling and guiding in rock.
More information:
| 170~250 |
