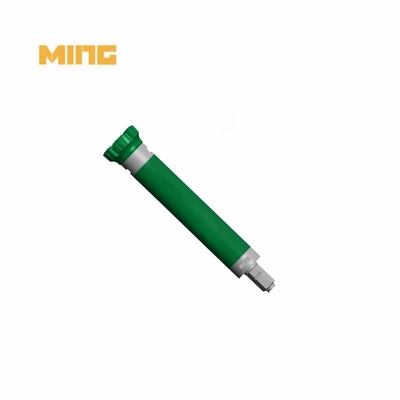

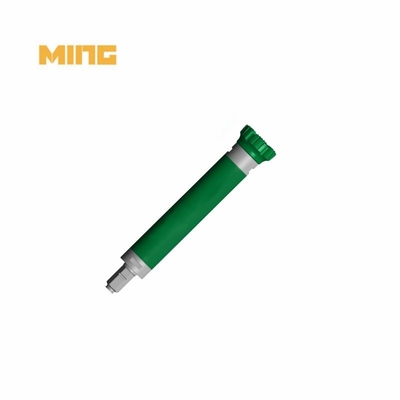

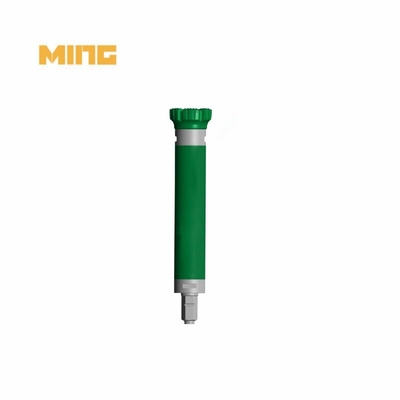

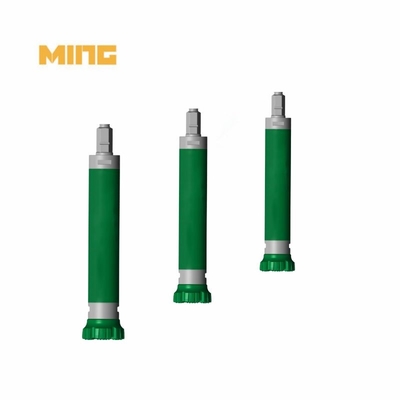

4 Inch QL Down The Hole High Air Pressure DTH Drill Hammer For Rock Formation

Product Name: 4 Inch QL Down The Hole High Air Pressure DTH Drill Hammer For Rock Formation

Model : MH40Q

Ref. Type :QL40

OD(mm):99mm

Hole range(mm): 110~135mm

Length(mm): 1070mm

Connection Thread: API2-3/8"REG

Working pressure(Mpa): 12~20

Air Consumption : 10BAR/145PSI-177CFM/18BAR/261PSI-318CFM/24BAR/348PSI-494CFM

Weight(Kg): 40 kg

Kingdrilling's DTH hammer is compatible with all common drive chuck connectors and supports a broad range of widely used drill bit shank designs. Standard API Reg pin connections are used. Contact us right now if you need assistance selecting the best hammer for your drill job.

The QL SHANK DTH hammer is engineered with a focus on structural optimization, ensuring ease of operation and enhanced performance. This high-quality drill bit offers superior performance, delivering a higher drilling speed while maintaining stable and reliable performance.

Our QL SHANK DTH hammer has been meticulously designed to meet the demanding requirements of drilling operations. With an emphasis on optimization, it offers optimal efficiency and precision, saving you time and effort during your drilling tasks.

How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)

How to choose the suitable Pneumatic DTH hammer?

1. Hole Size: The one whose outside diameter is closest to the hole diameter should be the one you select. As a result, there will be less hole collapse and easier hole cleaning.

2. Air Consumption: When using the pneumatic DTH hammer, you need to be aware of how much compressed air is being used. Generally speaking, peak performance necessitates lower pressure and more compressed gas consumption as the hammer size increases. Please refer to the attachment to ensure that each hammer is used with the appropriate amount of pressure and compressed air.

3. The larger bit and hammer will need the drilling rig to provide greater torque and promoting force, but do not exceed the maximum load of the drill. As for the other questions about drill ability, please consult your sales representative.

Application:

DTH Hammer of KINGDRILLING Diamond Co., Ltd is for Mineral, Quarrying, Tunneling, Construction, Geological Exploration, Water-well Drilling, Oilfield & Gas Industries.

Advantages:

1. High quality: We are the partners with a lot of big factories in China. We can provide the best quality products to you.
2. Competitive price: Competitive price because of direct factory price.
3. Fast delivery time:usually it takes 20 days for production.only 3 or 5 days if we have stock of your request size.
4. Best quality control:We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
5. Problems solve ability:This ability comes from rich experiences of drill bits industry and reliable sales..
6. OEM,ODM service:your own request about product will be served well.
7. Best after service:We will go to your place to check and solve the problems if you need.
