Product Details:
|
| Application: | Ore Mineral, Underground Drilling | Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization |
|---|---|---|---|
| Product Name: | Dth Hammers | Hammer Material: | Steel,High Carbon Stee |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Overseas Service Center Available | Warranty: | 1 Year |
| Material: | Carbon Steel,high Quality Alloy Steel | Type: | Deep Hole Drilling Tools,Down The Hole Hammers /DTH Hammers For Sale |
| Certification: | ISO9001 | Processing Type: | Forging |
| Usage: | Bored Pile,construction Machine Parts | Quality: | Top Brand China |
| Air Consumption: | 0.5-2.5Mpa | Oem: | YES |
| High Light: | SD Shank DTH Drill Hammer,Oil Drilling DTH Drill Hammer,12Inch Down The Hole Hammer |
||

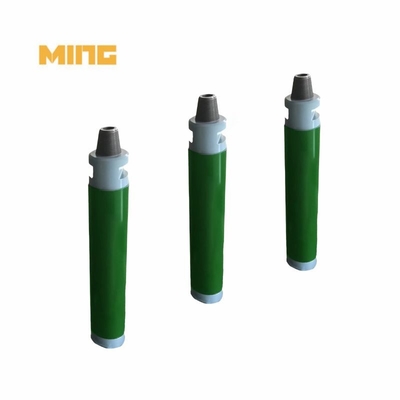

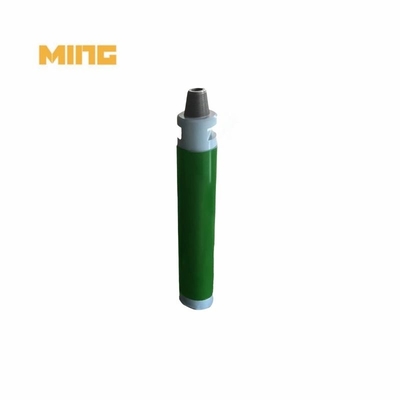

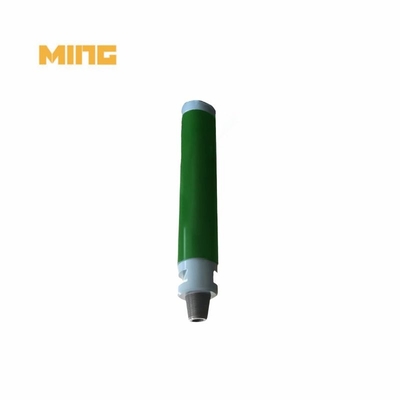

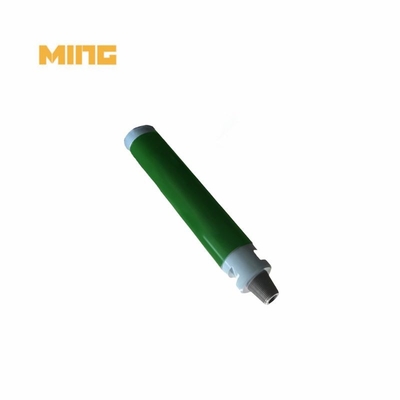

Product Name: 12 Inch Down The Hole SD Shank High Air Pressure DTH Drill Hammer For Oil Drilling
Model : MH120SD
Ref. Type :SD12
OD(mm):275mm
Hole range(mm): 305~445mm
Length(mm): 1860mm
Connection Thread: API6-5/8"REG
Working pressure(Mpa): 15~30
Air Consumption : 10BAR/145PSI-988CFM/18BAR/261PSI-1765CFM/24BAR/348PSI-2506CFM
Weight(Kg): 480 kg
KINGDRILLING DTH hammer products provide a large selection of high-quality, multipurpose DTH hammers that can be used in place of or as an alternative to several top industry manufacturers. Hammers are offered for use in almost all ground conditions and for downhole and blast hole, gas, water well, and mineral applications. The industry's most popular rock drill bit shank types, including DHD, QL, Cop, Mission, SD, NUMA shank, and others, are compatible with the majority of DTH hammers.
The DTH hammer from Kingdrilling is compatible with all typical drive chuck connectors and supports a broad range of widely used drill bit shank designs. Standard API Reg pin connections are used. If you need assistance selecting the ideal hammer for your drill project, get in contact with us right now.
One of the standout features of this remarkable tool is its fast driving speed. Engineered to maximize productivity, the SD DTH hammer allows users to significantly reduce drilling time while maintaining optimal results. Say goodbye to productivity bottlenecks and experience a new level of efficiency with this cutting-edge drilling solution.
| Model | Spline | OD(mm) | Hole range(mm) | Length(mm) | Connection Thread | Working pressure(Bar) | Air Consumption | Weight (Kg) |
||||
| SD SHANK HAMMER | ||||||||||||
| MH40SD | SD4 | 99 | 110~135 | 1012 | API2-3/8"REG | 12~20 | 10BAR/145PSI-212CFM | 18BAR/261PSI-318CFM | 24BAR/348PSI-494CFM | 40 | ||
| MH50SD | SD5 | 125 | 155~190 | 1090 | API2-3/8"REG/API2-7/8"IF/API3-1/2"REG | 13~23 | 10BAR/145PSI-247CFM | 18BAR/261PSI-494CFM | 24BAR/348PSI-671CFM | 70 | ||
| MH60SD | SD6 | 146 | 155~203 | 1182 | API3-1/2"REG | 15~25 | 10BAR/145PSI-318CFM | 18BAR/261PSI-635CFM | 24BAR/348PSI-918CFM | 90 | ||
| MH80SD | SD8 | 180 | 195~254 | 1330 | API4-1/2"REG | 15~30 | 10BAR/145PSI-424CFM | 18BAR/261PSI-777CFM | 24BAR/348PSI-988CFM | 174 | ||
| MH100SD | SD10 | 226 | 254~311 | 1525 | API6-5/8"REG | 20~35 | 10BAR/145PSI-777CFM | 18BAR/261PSI-1412CFM | 24BAR/348PSI-2295CFM | 316 | ||
| MH120SD | SD12 | 275 | 305~445 | 1860 | API6-5/8"REG | 20~35 | 10BAR/145PSI-988CFM | 18BAR/261PSI-1765CFM | 24BAR/348PSI-2506CFM | 480 | ||
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
How to choose the suitable Pneumatic DTH hammer?
Hole Size: The one whose outside diameter is closest to the hole diameter should be the one you select. As a result, there will be less hole collapse and easier hole cleaning.
Air Consumption: When using the pneumatic DTH hammer, you need to be aware of how much compressed air is being used. Generally speaking, peak performance necessitates lower pressure and more compressed gas consumption as the hammer size increases. Please refer to the attachment to ensure that each hammer is used with the appropriate amount of pressure and compressed air.
The larger bit and hammer will need the drilling rig to provide greater torque and promoting force, but do not exceed the maximum load of the drill. As for the other questions about drill ability, please consult your sales representative.
How does DTH drilling hammer work?
A down-the-hole drill hammer, usually called DTH hammer by most professionals, is basically a DTH hammer screwed on the bottom of a drill string. The fast hammer action breaks hard rock into small cuttings and dust that are evacuated by a fluid (air, water or drilling mud).
More Information:
| 10BAR/145PSI-424CFM |
