Product Details:
|
Application: | Ground Engineering | Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization |
---|---|---|---|
Product Name: | Rical Engineering Low Pressure Dth Hammers Down The Hole Drill Pdc Bit | Hammer Material: | Carboon Steel,High Carbon Steel |
Hammer Type: | DTH Hammer, Down The Hole Hammers | After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available |
Warranty: | 1 Year | Material: | Carbon Steel,high Quality Alloy Steel |
Type: | Deep Hole Drilling Tools | Processing Type: | Forging |
Usage: | Quarry,construction Machine Parts | Quality: | Top Brand China |
Highlight: | MH35D DTH Drill Hammer,MH35D Down The Hole Hammer,Well Drilling DTH Drill Hammer |

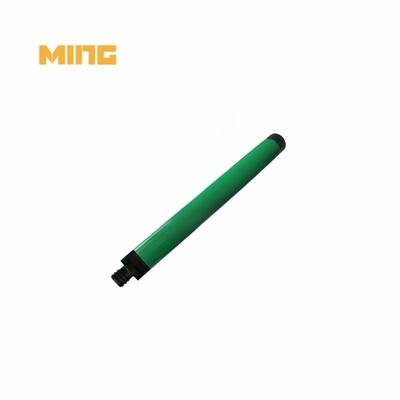

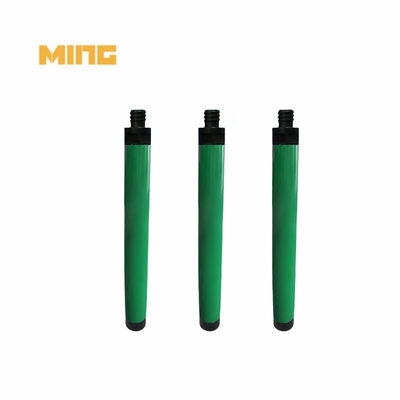

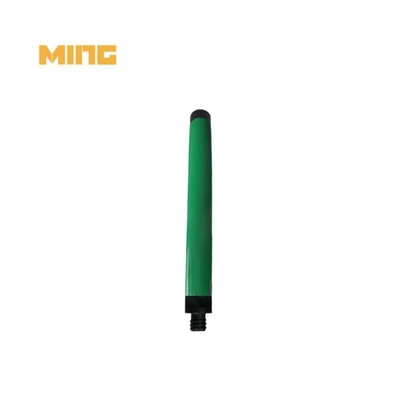

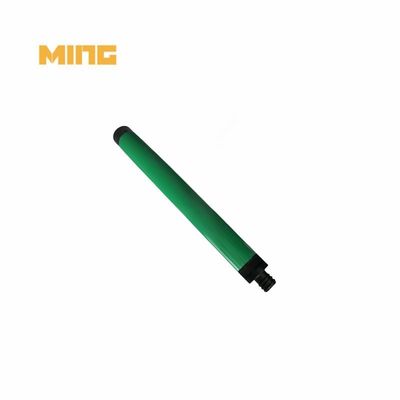

Product name: MH35D Down The Hole High Air Pressure DTH Drill Hammer For Well Drilling
Product category: Down The Hole Hammer
Introducing the MH35D DTH Hammer - the ultimate drilling tool designed for professionals who demand superior performance, efficiency and durability. Designed to meet the high demands of modern drilling operations, this exceptional product ensures outstanding results.
MH35D DTH Hammers focus on delivering high quality drilling, ensuring precise and accurate drilling in a variety of challenging conditions. Its advanced design enables users to achieve reliable and consistent drilling results, making it the first choice for professionals looking for a best-in-class drilling experience.
One of the features of this excellent tool is its rapid advancement speed. MH35D DTH Hammers are engineered to maximize productivity, allowing users to significantly reduce drilling time while maintaining optimal results. Say goodbye to productivity bottlenecks and experience new levels of efficiency with this cutting-edge drilling solution.
High air pressure DTH hammer details:
For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mineral, DTH, Piling, water well drilling and blasting operations.
Model | Spline | OD (mm) |
Hole range (mm) |
Length (mm) |
Connection Thread |
Working pressure (Bar) |
Air Consumption | ||
MH35D | DHD3.5 | 82 | 90~115 | 888 | API2-3/8"REG | 10~15 | 10BAR/145PSI-134CFM | 15BAR/217.5PSI-265CFM | |
MH40D | DHD340/COP44 | 99 | 110~135 | 1011 | API2-3/8"REG | 12~20 | 10BAR/145PSI-212CFM | 18BAR/261PSI-353CFM | 24BAR/348PSI-530CFM |
MH50D | DHD350/COP54 | 125 | 135~155 | 1110 | API2-3/8"REG/API2-7/8"IF/API3-1/2"REG | 13-23 | 10BAR/145PSI-247CFM | 18BAR/261PSI-494CFM | 24BAR/348PSI-671CFM |
MH60D | DHD360/COP64 | 142 | 155~203 | 1238 | API3-1/2"REG | 15~30 | 10BAR/145PSI-318CFM | 18BAR/261PSI-635CFM | 24BAR/348PSI-918CFM |
MH80D | DHD380/COP84 | 180 | 195~254 | 1359 | API4-1/2"REG | 15~30 | 10BAR/145PSI-424CFM | 18BAR/261PSI-777CFM | 24BAR/348PSI-988CFM |
How to order:
Shank Type + Top Sub Thread
DTH Hammer advantages:
1. High-frequency hammer design for faster penetration,
2. improved stability
3. simpler structur
4. less impact to sensitive electronics
5. manufactured kingdrilling heat treat processes
FAQ:
1. What is hole hammer?
Pneumatic down-the-hole (DTH) hammer is a pneumatic drilling tool using compressed air as a power source. It is suitable for drilling in pebble, gravel, and hard rock strata. It is often used in building pile foundation construction, bridge, mineral, geological exploration, hydrological wells, and other fields.
2. Is top hammer drilling vs down-the-hole drilling?
The fundamental distinction between top hammer and down-the-hole drilling methods is the location of the hammer. During the down-the-hole drilling method, the hammer in the industrial equipment makes contact with the bit. The action of the top hammer drilling method is concentrated at the very top of the drill string.
3.Can you directional bore through rock?
One of the most significant milestones in the evolution of HDD, however, was the development of the technology. As technology has advanced, midsize drilling equipment now has the capability of effectively drilling and steering in rock.
