Product Details:
|
| Application: | Mineral, Underground, Water Well Drilling | Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization |
|---|---|---|---|
| Product Name: | Dth Hammers | Hammer Material: | Steel,High Carbon Stee |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Overseas Service Center Available | Warranty: | 1 Year |
| Material: | Carbon Steel,high Quality Alloy Steel | Type: | Deep Hole Drilling Tools,Down The Hole Hammers /DTH Hammers For Sale |
| Processing Type: | Forging | Usage: | Bored Pile,construction Machine Parts |
| Quality: | Top Brand China | ||
| High Light: | 8Inch DTH Drill Hammer,Water Drilling Machine DTH Hammer,QL Down The Hole Hammer |
||

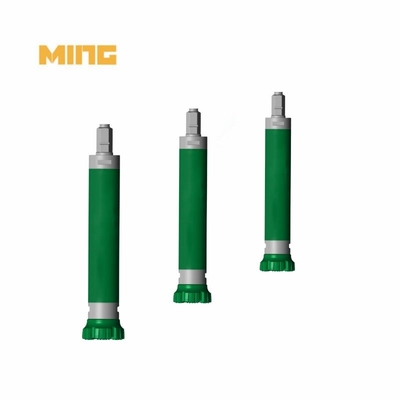

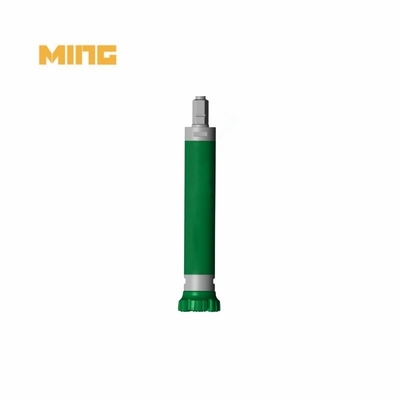

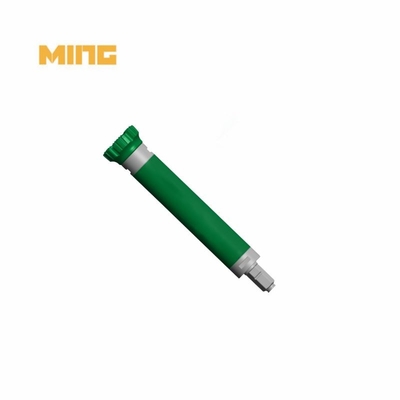

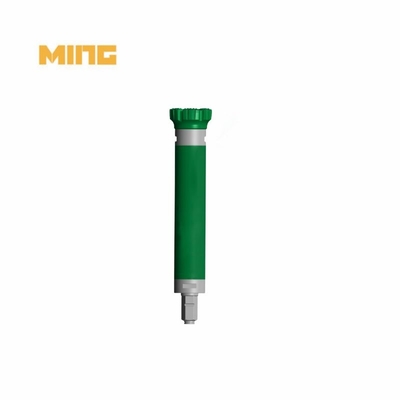

Product Name: 8 Inch QL Down The Hole High Air Pressure DTH Drill Hammer For Water Drilling Machine
Model : MH80Q
Ref. Type : QL80
OD(mm): 180mm
Hole range(mm): 195~254
Length(mm): 1330mm
Connection Thread: API2-3/8"REG/API2-7/8"IF/API3-1/2"REG
Working pressure(Mpa): 13~23
Air Consumption : 10BAR/145PSI-424CFM/18BAR/261PSI-777CFM/24BAR/348PSI-988CFM
Weight(Kg): 171kg
Kingdrilling's QL Shank DTH hammer is compatible with all common drive chuck connectors and supports a broad range of widely used drill bit shank designs. Standard API Reg pin connections are used. Contact us right now if you need assistance selecting the best hammer for your drill job.
Choose our QL Shank DTH hammer for a professional-grade tool that will optimize your drilling operations. With its ease of operation, superior performance, high drilling speed, and customizable features, it is the perfect choice for professionals seeking efficient and reliable drilling solutions.
| Model | Spline | OD(mm) | Hole range(mm) | Length(mm) | Connection Thread | Working pressure(Bar) | Air Consumption | Weight (Kg) |
||||
| QL SHANK HAMMER | ||||||||||||
| MH40Q | QL40 | 99 | 110~135 | 1070 | API2-3/8"REG | 12~20 | 10BAR/145PSI-177CFM | 18BAR/261PSI-318CFM | 24BAR/348PSI-494CFM | 40 | ||
| MH50Q | QL50 | 125 | 135~155 | 1090 | API2-3/8"REG/API2-7/8"IF/API3-1/2"REG | 13~23 | 10BAR/145PSI-247CFM | 18BAR/261PSI-494CFM | 24BAR/348PSI-671CFM | 67 | ||
| MH60Q | QL50 | 146 | 155~203 | 1183 | API3-1/2"REG | 15~25 | 10BAR/145PSI-318CFM | 18BAR/261PSI-635CFM | 24BAR/348PSI-918CFM | 92 | ||
| MH80Q | QL50 | 180 | 195~254 | 1330 | API4-1/2"REG | 15~30 | 10BAR/145PSI-424CFM | 18BAR/261PSI-777CFM | 24BAR/348PSI-988CFM | 171 | ||
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
How to choose the suitable Pneumatic DTH hammer?
1. Hole Size: The one you choose should be the one whose outside diameter is closest to the hole diameter. Less hole collapse and simpler hole cleaning will follow as a result.
2. Air Consumption: You must be conscious of the amount of compressed air being consumed when operating the pneumatic DTH hammer. As the hammer size rises, peak performance usually requires higher compressed gas consumption and lower pressure. To make sure that each hammer is used with the proper amount of pressure and compressed air, please refer to the attachment.
3. The drilling rig must supply more torque and promoting force to accommodate the larger bit and hammer, but it must not go above the drill's maximum load. As for the other questions about drill ability, please consult your sales representative.
Application:
DTH Hammer of KINGDRILLING Diamond Co., Ltd is for Mineral, Quarrying, Tunneling, Construction, Geological Exploration, Water-well Drilling, Oilfield & Gas Industries.
Advantages:
1. High quality: Many large Chinese factories are our partners. We are able to offer you the highest caliber merchandise.
More Information:
| 10BAR/145PSI-424CFM |
