Product Details:
|
Application: | Ground Engineering | Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization |
---|---|---|---|
Product Name: | Down The Hole Hammer | Hammer Material: | Carboon Steel,High Carbon Steel |
Hammer Type: | DTH Hammer, Down The Hole Hammers | After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available |
Warranty: | 1 Year | Material: | Carbon Steel,high Quality Alloy Steel |
Type: | Deep Hole Drilling Tools | Processing Type: | Forging |
Usage: | Quarry,construction Machine Parts | Quality: | Top Brand China |
Highlight: | 4 Inch DTH Drill Hammer,NM4 Spline DTH Drill Hammer,Well Drilling DTH Hammer |

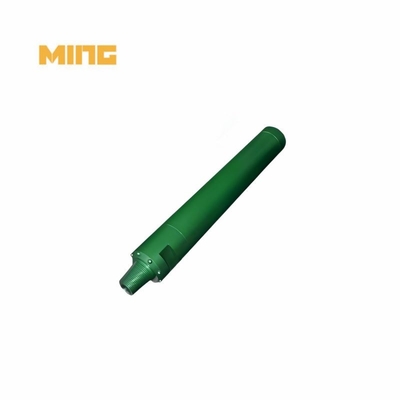

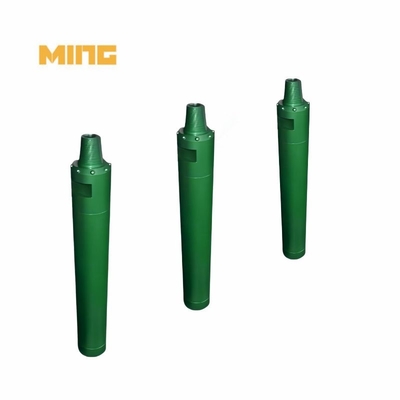

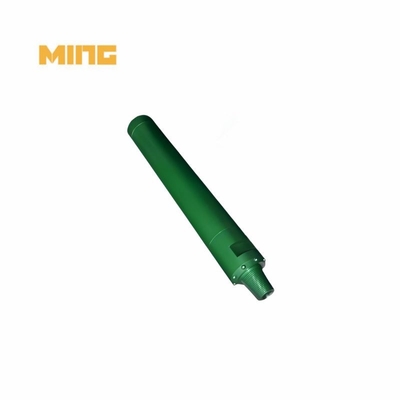

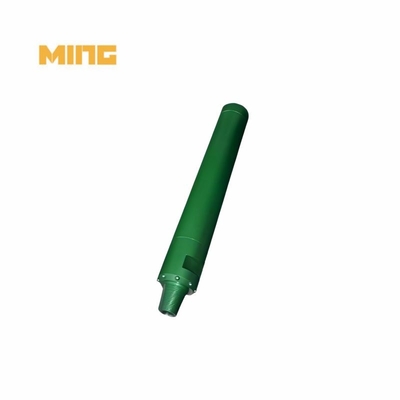

Product name: 4 Inch NM4 Spline Down The Hole High Air Pressure DTH Drill Hammer For Well Drilling
Product category: Down The Hole Hammer
DTH hammer, a groundbreaking drilling tool designed for optimum performance and durability. With its advanced engineering and precise Structural Optimization, this hammer boasts improved structural strength for increased reliability and ease of operation.
When it comes to Performance, this DTH hammer delivers exceptional results. Equipped with cutting-edge technology, it ensures high drilling speed without compromising stability. Even in the most challenging drilling environments, this hammer maintains a consistent and reliable performance, allowing you to streamline your operations and achieve outstanding results.
High air pressure DTH hammer details:
For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mineral, DTH, Piling, water well drilling and blasting operations.
Model | Spline | OD (mm) | Hole range (mm) |
Length (mm) | Connection Thread | Working pressure (Bar) |
Air Consumption | Weight (Kg) |
|||
NM SHANK HAMMER | |||||||||||
MH40M | NM4 | 99 | 110~135 | 1005 | API2-3/8"REG | 12~20 | 10BAR/145PSI-177CFM | 18BAR/261PSI-318CFM | 24BAR/348PSI-494CFM | 40 | |
MH50M | NM5 | 126 | 155~190 | 1110 | API2-3/8"REG/API2-7/8"IF/API3-1/2"REG | 13~23 | 10BAR/145PSI-247CFM | 18BAR/261PSI-494CFM | 24BAR/348PSI-671CFM | 67 | |
MH60M | NM6 | 146 | 155~203 | 1161 | API2-7/8"IF/API3-1/2"REG/2-7/8"IF | 15~25 | 10BAR/145PSI-318CFM | 18BAR/261PSI-635CFM | 24BAR/348PSI-918CFM | 90 | |
MH80M | NM8 | 180 | 195~254 | 1338 | API4-1/2"REG | 15~30 | 10BAR/145PSI-424CFM | 18BAR/261PSI-777CFM | 24BAR/348PSI-988CFM | 176 | |
MH100M | NUMA100 | 226 | 254~311 | 1545 | API6-5/8"REG | 20~35 | 10BAR/145PSI-777CFM | 18BAR/261PSI-1412CFM | 24BAR/348PSI-2295CFM | 305 |
DTH Hammer advantages:
1. High quality: We are the partners with a lot of big factories in China. We can provide the best quality products to you.
2. Competitive price: Competitive price because of direct factory price.
3. Fast delivery time: It usually takes 25 days for production.only 3 or 5 days if we have stock of your request size.
4. Best quality control: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
5. Problems solve ability: This ability comes from rich experiences of drill bits industry and reliable sales..
6. OEM,ODM service: Your own request about product will be served well.
7. Best after service: We will go to your place to check and solve the problems if you need.
FAQ:
1. What does a hole hammer do?
A pneumatic drilling tool that runs on compressed air is the down-the-hole (DTH) pneumatic hammer. Drilling in hard rock strata, gravel, and pebbles is appropriate. It is frequently utilized in the construction of bridges, pile foundations for buildings, mineral, geological investigation, hydrological wells, and other industries.
2. Is down-the-hole drilling preferable to top hammer drilling?
The position of the hammer is the primary distinction between down-the-hole and top hammer drilling techniques. The bit is in contact with the industrial equipment's hammer during the down-the-hole drilling process. At the very top of the drill string is where the top hammer drilling method concentrates its activity.
3.Can you directional bore through rock?
One of the most significant milestones in the evolution of HDD, however, was the development of the technology. As technology has advanced, midsize drilling equipment now has the capability of effectively drilling and steering in rock.
