Product Details:
|
| Material: | High Carbon Steel,Tungsten Carbide,steel | Use: | Metal Drilling,rock Drilling |
|---|---|---|---|
| Product Name: | Ingersoll-Rand Shank Adapters YH65 YH80 YH65RP YH70RP YH75RP YH80RP | Application: | Drilling Holes |
| Shank: | Straight Shank | Color: | Red/Blue/Black/golden,according To Customer's Requirement |
| Name: | Shank Adapter | Certification: | ISO9001 |
| Process: | Forging,Fully Ground | Quality: | Stable And Reliable,best Quality |
| Machine Type: | Drilling Tool | ||
| High Light: | 525mm Shank Adapter, 525mm Drill Pipe | ||

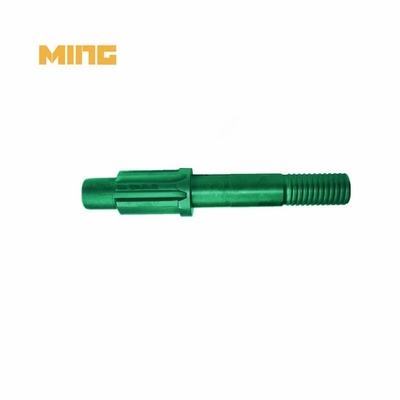

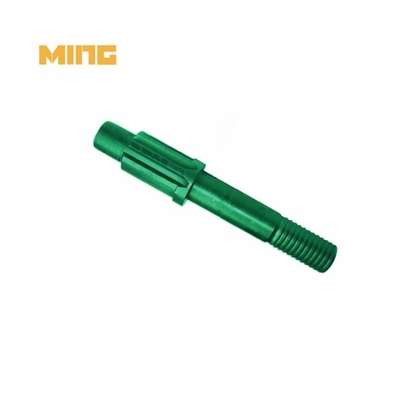

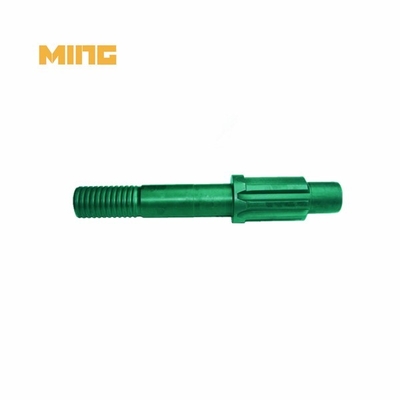

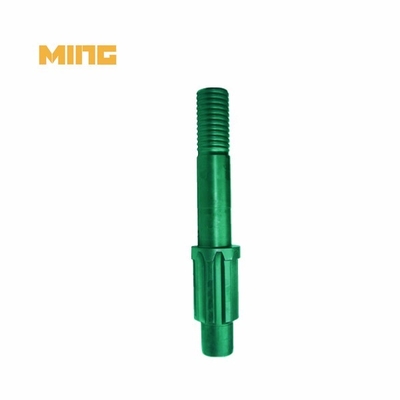

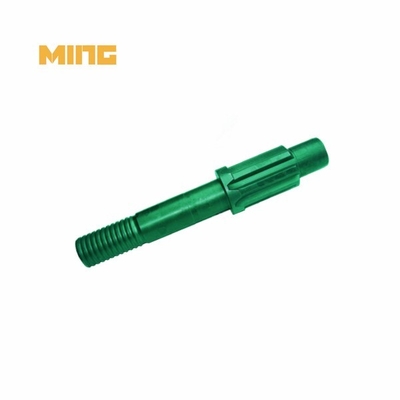

Product name: DTH Shank Adapter for Rock Drilling and Tunneling with R32 Thread and 525MM Length
Product category: Shank adapter
Matched: Atlas Copco COP1440, COP1550, COP1838
Thread: R32
Length: 525MM
KINGDRILLING shank adapter description:
Shank adapters from KINGDRILLING are composed of quality steel, are carburized, and are CNC-machined to ensure that they have exceptional toughness and anti-fatigue strength to withstand the most demanding drilling circumstances.
The shank adapter is used to provide the drill string with rotation torque, feed force, impact energy, and flushing media.
KINGDRILLING shank adapter features:
- Ensures high drilling quality with precision design and advanced technology.
- Achieves fast driving speed for efficient drilling operations.
- Improves working efficiency by minimizing downtime and increasing productivity.
| Item | Thread | Length | Diameter | Weight | Flushing Tube |
| mm | mm | kg | mm | ||
| Atlas Copco COP 1440, COP 1550, COP 1838 Bench Drilling |
R32 (1 1/4") | 525 | 52 | 5.7 | - |
| T38 (1 1/2") | 525 | 52 | 5.9 | - | |
| T45 (1 3/4") | 525 | 52 | 6.1 | - | |
| T51 (2") | 525 | 52 | 6.5 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Drifting |
R32 (1 1/4") | 435 | 38 | 3.6 | - |
| R38 (1 1/2") | 435 | 38 | 3.9 | - | |
| T38 (1 1/2") | 435 | 38 | 3.8 | - | |
| Atlas Copco COP 1440, COP1838 Bolting - SDA |
R32 (1 1/4") | 640 | 52 | 7.5 | - |
| Atlas Copco COP 1440, COP 1838 Bolting- SDA, IRIA |
R32 (1 1/4") | 640 | 52 | 9.1 | - |
| R38 (1 1/2") | 640 | 52 | 8.9 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Bench Drilling |
R32 (1 1/4") | 585 | 38 | 4.2 | - |
| R38 (1 1/2") | 525 | 38 | 4.3 | - | |
| T38 (1 1/2") | 525 | 38 | 4.3 | - | |
| Atlas Copco COP 1440, COP1550, COP 1638, COP 1838 Bolting, Drifting |
T38 (1 1/2") | 435 | 38 | 3.9 | - |
| Atlas Copco COP 1638, COP 1838AW Drifting |
R38 (1 1/2") | 455 | 38 | 4.1 | - |
| T38 (1 1/2") | 455 | 38 | 4.1 | - | |
| Atlas Copco COP 1638, COP 1838AW Longhole Drilling |
R32 (1 1/4") | 525 | 38 | 4.3 | - |
| T38 (1 1/2") | 525 | 38 | 4.5 | - |
KINGDRILLING shank adapter application:
1. Suitable for step blasting, underground mining, roadway engineering.
2. Kingdrilling shank can transfer torque, feed force, impact energy and washing medium to drill string well
3. Special alloy steel, and carburized hardening treatment, to ensure the high impact of modern rock drill.
4. According to the sample and drill machine model production of all kinds of drill rod.
FAQ:
1. How about plain packing?
A: If there is no special packing requirement, we will take it as our normal packing. Put small cartons first, then large cartons to ensure that the goods are complete.
2. Can I expect quality products?
A. Yes. The mature production process ensures that the quality meets the international requirements.
3. How to control the quality?
A: We have our own experienced QC team who will strictly inspect and test each order before shipping.
4. What is the use of the top hammer?
Top hammer drilling RIGS are mainly used for rock material mining, construction and quarrying. The combination of top hammer drilling and "drill and blow" method makes the whole excavation process extremely efficient.
5. What is a tophammer?
In top hammer drilling, the activity is concentrated on the top of the drill column above the hole, and the hammer transmits the periodic shock wave to the drill bit by applying an impact force on the drill pipe or drill pipe (for the drill, the hammer is placed under the drill bit).
6. How does subhole drilling work?
A submerged-hole drill, often referred to by most professionals as a DTH, is basically a jackhammer screwed into the bottom of the drill string. Rapid hammering action breaks the hard rock into small chips and dust, which are discharged by fluid (air, water, or drilling mud).
