Product Details:
|
| Material: | High Carbon Steel,Tungsten Carbide,steel | Use: | Metal Drilling, Rock Drilling |
|---|---|---|---|
| Product Name: | Shank Adapter | Shank: | Straight Shank |
| Color: | Red/Blue/Black/golden,according To Customer's Requirement | Certification: | ISO9001 |
| Process: | Forging,Fully Ground | Quality: | Stable And Reliable,best Quality |
| Machine Type: | Drilling Tool | ||
| High Light: | 435mm DTH Shank Adapter,T38 Thread DTH Shank Adapter,Carburized Drill Bit Shank Adapter |
||

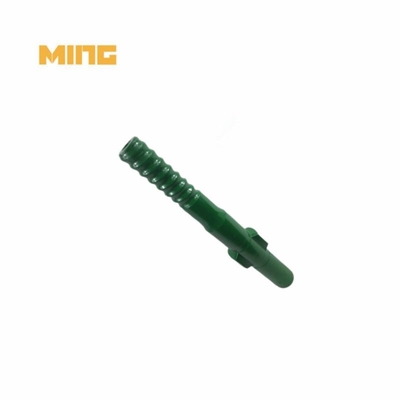

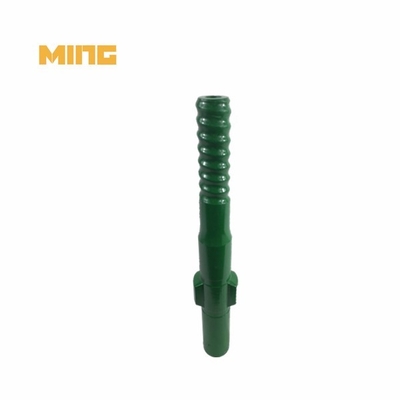

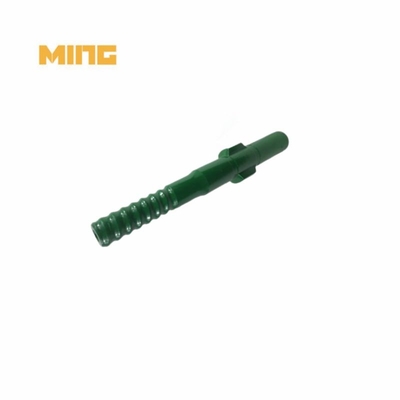

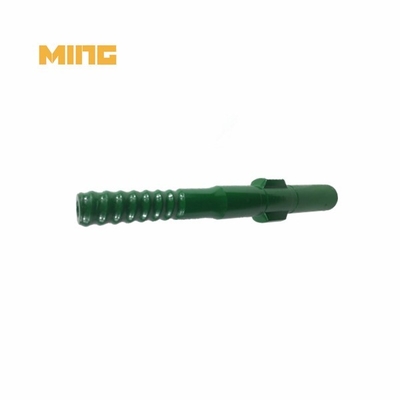

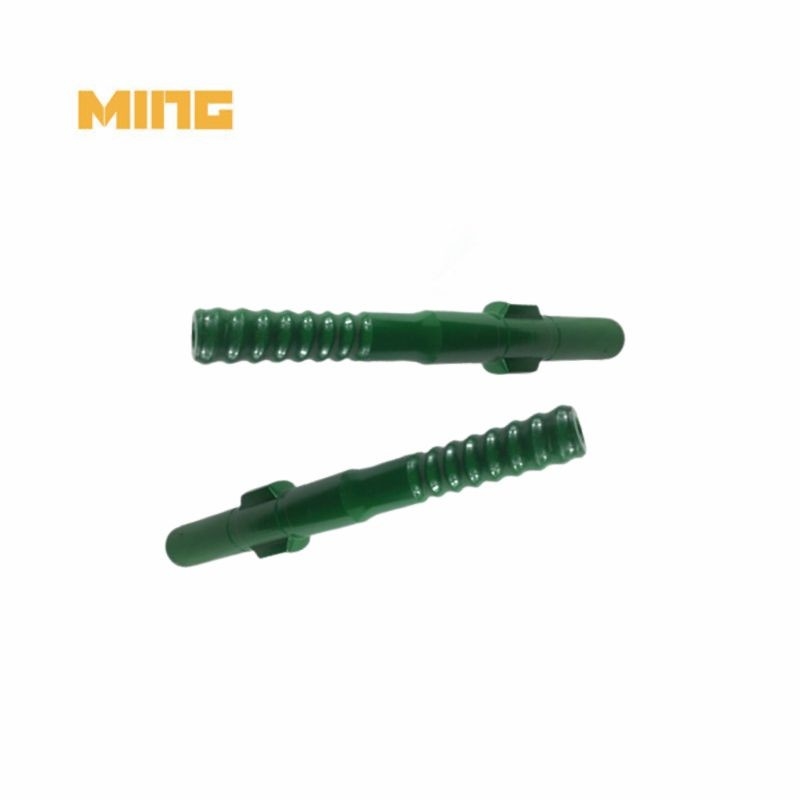

Product name: Carburized And CNC Machined T38 Thread 435mm DTH Shank Adapter For Exceptional Toughness
Product category: Shank adapter
Matched: Atlas Copco COP1440, COP1550, COP1638, COP1838, COP2238
Thread: T38
Length: 435MM
KINGDRILLING shank adapter description:
KINGDRILLING shank adapters are carburized, CNC machined, and composed of premium steel, which ensures excellent toughness and anti-fatigue strength to fulfill the most stringent drilling requirements.
The shank adapter transmits rotation torque, feed force, impact energy, and flushing medium to the drill string.
KINGDRILLING shank adapter features:
- Experience unparalleled drilling speed with our shank adapter, designed for high drilling speed and exceptional efficiency.
- Benefit from the stable and reliable performance of our shank adapter, ensuring smooth operation and precise drilling results.
- Increase your productivity with our shank adapter's high working efficiency, allowing you to complete drilling tasks in less time.
- Count on the long service life of our shank adapter, providing you with durability and reliability for extended use.
- Made with high-quality materials, our shank adapter is ideal for various drilling applications, delivering consistent performance.
| Item | Thread | Length | Diameter | Weight | Flushing Tube |
| mm | mm | kg | mm | ||
| Atlas Copco COP 1440, COP 1550, COP 1838 Bench Drilling |
R32 (1 1/4") | 525 | 52 | 5.7 | - |
| T38 (1 1/2") | 525 | 52 | 5.9 | - | |
| T45 (1 3/4") | 525 | 52 | 6.1 | - | |
| T51 (2") | 525 | 52 | 6.5 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Drifting |
R32 (1 1/4") | 435 | 38 | 3.6 | - |
| R38 (1 1/2") | 435 | 38 | 3.9 | - | |
| T38 (1 1/2") | 435 | 38 | 3.8 | - | |
| Atlas Copco COP 1440, COP1838 Bolting - SDA |
R32 (1 1/4") | 640 | 52 | 7.5 | - |
| Atlas Copco COP 1440, COP 1838 Bolting- SDA, IRIA |
R32 (1 1/4") | 640 | 52 | 9.1 | - |
| R38 (1 1/2") | 640 | 52 | 8.9 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Bench Drilling |
R32 (1 1/4") | 585 | 38 | 4.2 | - |
| R38 (1 1/2") | 525 | 38 | 4.3 | - | |
| T38 (1 1/2") | 525 | 38 | 4.3 | - | |
| Atlas Copco COP 1440, COP1550, COP 1638, COP 1838 Bolting, Drifting |
T38 (1 1/2") | 435 | 38 | 3.9 | - |
| Atlas Copco COP 1638, COP 1838AW Drifting |
R38 (1 1/2") | 455 | 38 | 4.1 | - |
| T38 (1 1/2") | 455 | 38 | 4.1 | - | |
| Atlas Copco COP 1638, COP 1838AW Longhole Drilling |
R32 (1 1/4") | 525 | 38 | 4.3 | - |
| T38 (1 1/2") | 525 | 38 | 4.5 | - |
KINGDRILLING shank adapter application:
1. Be applied to bench blasting, underground mineral and turnneling projects.
2. Kingdrilling shank adapter can transmit torque, feed force, impact energy and flushing medium to the drill string well
3. Specially selected alloy steel which also is hardened through carburizing to ensure the high imact power of modern rock drills.
4. Various shanks can be produced according to the samples and the model of rock drill.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Shipping way:
A: Sample order: we suggest Courier express delivery such as DHL/UPS/TNT/FEDEX or by air
Bulk order: by air or by sea we suggest.
8. Competitive price:
A:KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor!
