Product Details:
|
| Certification: | ISO9001 | Material: | High Carbon Steel,Tungsten Carbide,steel |
|---|---|---|---|
| Use: | Metal Drilling, Rock Drilling | Product Name: | Shank Adapter |
| Shank: | Straight Shank | Color: | Red/Blue/Black/golden,according To Customer's Requirement |
| Process: | Forging,Fully Ground | Quality: | Stable And Reliable,best Quality |
| Machine Type: | Drilling Tool | ||
| High Light: | COP1838 DTH Shank Adapter,Rock Drilling DTH Shank Adapter,640MM Drill Shank Adapter |
||

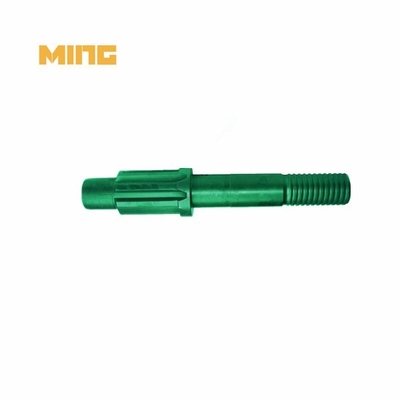

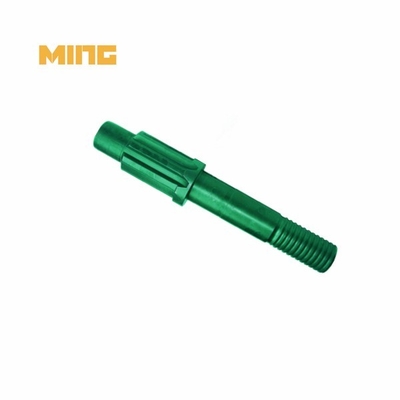

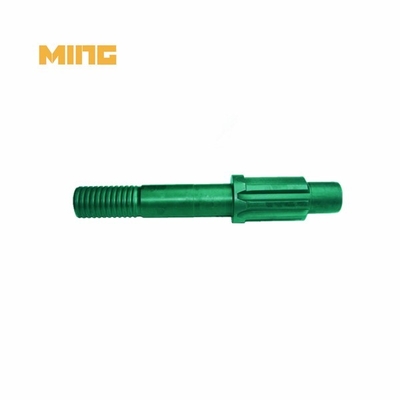

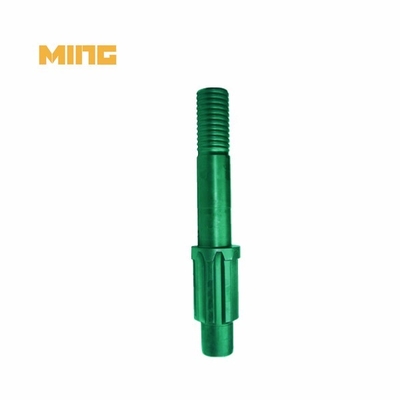

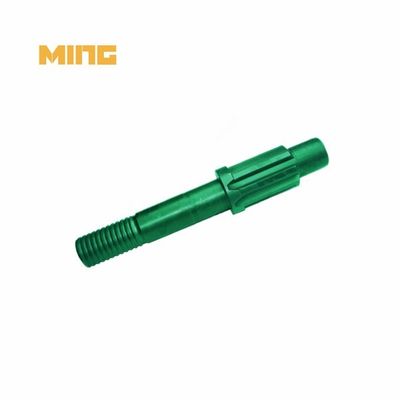

Product name: High-Speed R32 Thread 640MM Atlas Copco COP1440/COP1838 DTH Shank Adapter For Rock Drilling
Product category: Shank adapter
Matched: Atlas Copco COP 1440, COP1838
Thread: R32
Length: 640MM
KINGDRILLING shank adapter description:
KINGDRILLING shank adapters are carburized, CNC machined, and composed of premium steel, ensuring excellent toughness and anti-fatigue strength to suit the most stringent drilling requirements.
The drill string is equipped with a shank adapter that transfers rotation torque, feed force, impact energy, and flushing media.
KINGDRILLING shank adapter features:
- High-speed drilling with our shank adapter ensures efficient and productive on-site operations.
- Experience stable and reliable performance with our shank adapters, delivering consistent results in a variety of drilling conditions.
- Increase work efficiency with our shank adapters for faster drilling processes and improved project schedules.
- Enjoy long-life service with our shank adapters, reducing long-term downtime and maintenance costs.
- Our shank adapters are versatile in application and are ideally suited for a variety of drilling tasks in construction, mining and geotechnical projects.
| Item | Thread | Length | Diameter | Weight | Flushing Tube |
| mm | mm | kg | mm | ||
| Atlas Copco COP 1440, COP 1550, COP 1838 Bench Drilling |
R32 (1 1/4") | 525 | 52 | 5.7 | - |
| T38 (1 1/2") | 525 | 52 | 5.9 | - | |
| T45 (1 3/4") | 525 | 52 | 6.1 | - | |
| T51 (2") | 525 | 52 | 6.5 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Drifting |
R32 (1 1/4") | 435 | 38 | 3.6 | - |
| R38 (1 1/2") | 435 | 38 | 3.9 | - | |
| T38 (1 1/2") | 435 | 38 | 3.8 | - | |
| Atlas Copco COP 1440, COP1838 Bolting - SDA |
R32 (1 1/4") | 640 | 52 | 7.5 | - |
| Atlas Copco COP 1440, COP 1838 Bolting- SDA, IRIA |
R32 (1 1/4") | 640 | 52 | 9.1 | - |
| R38 (1 1/2") | 640 | 52 | 8.9 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Bench Drilling |
R32 (1 1/4") | 585 | 38 | 4.2 | - |
| R38 (1 1/2") | 525 | 38 | 4.3 | - | |
| T38 (1 1/2") | 525 | 38 | 4.3 | - | |
| Atlas Copco COP 1440, COP1550, COP 1638, COP 1838 Bolting, Drifting |
T38 (1 1/2") | 435 | 38 | 3.9 | - |
| Atlas Copco COP 1638, COP 1838AW Drifting |
R38 (1 1/2") | 455 | 38 | 4.1 | - |
| T38 (1 1/2") | 455 | 38 | 4.1 | - | |
| Atlas Copco COP 1638, COP 1838AW Longhole Drilling |
R32 (1 1/4") | 525 | 38 | 4.3 | - |
| T38 (1 1/2") | 525 | 38 | 4.5 | - |
KINGDRILLING shank adapter application:
1. Be used for bench blasting, underground mining, and tunneling operations.
2. The Kingdrilling shank adapter effectively transfers torque, feed force, impact energy, and flushing medium to the drill string.
3. Specially selected alloy steel, which is additionally carburized, ensures the strong impact power of current rock drills.
4. Various shanks can be created based on the samples and model of the rock drill.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
4. Competitive price:
A: KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor.
5. Product feature
Kingdrilling DTH tools are forged by advanced electron-hydraulic forging hammer, and harness process is managed by multipurpose furnace heat treatment.
