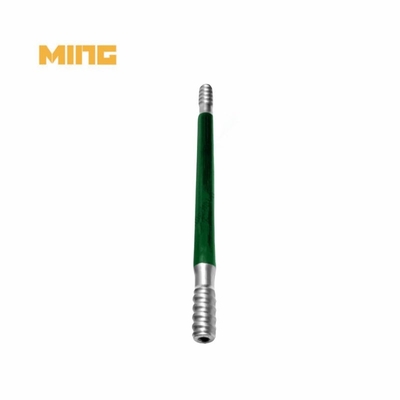

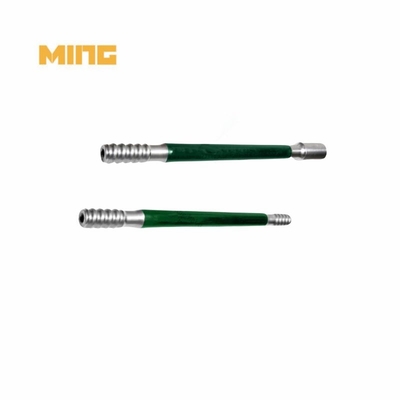

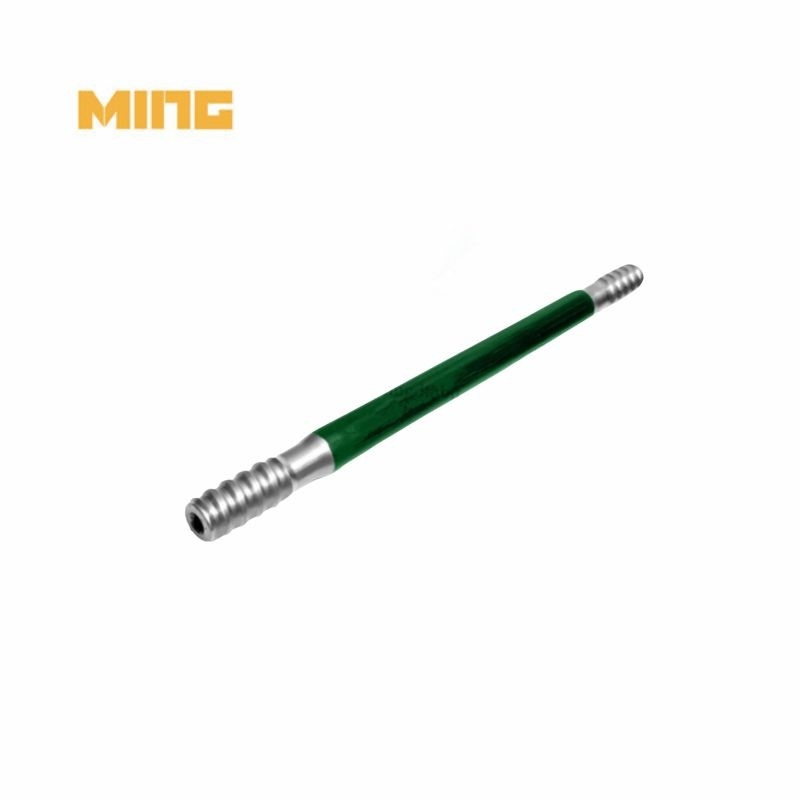

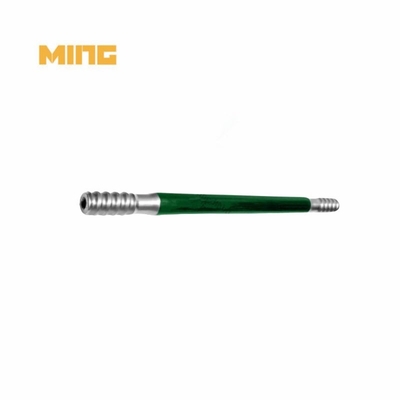

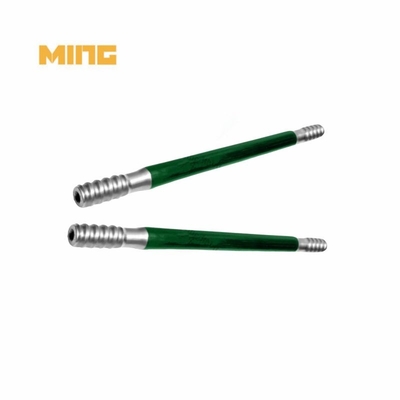

T51 Thread 4270mm Length Diamond Extension Rod For Horizontal Drilling Rig

Product name: T51 Thread 4270mm Length Diamond MM Extension Rod For Horizontal Drilling Rig

Product category: Drilling rod

Threaded Connection: T51

Length: 4270mm

KINGDRILLING thread drill rods are produced from high-intensity alloy steel. All trails and threads are created using high-precision CNC machines. The thread is formed by induction hardening, followed by rapid heating and cooling. Precision temperature-controlled heat treatment equipment extends the drill rod's service life and enhances its mechanical qualities.

Holistic carburization raises the carbon content of the drill rod's outer layer while also hardening the exterior steel body. The solid thread fits perfectly with the inner wall of the drill bits, allowing for high precision and efficiency in complex rock and terrain rough drilling tasks such as roadway tunneling, underground mineral, and open pit drilling.

KINGDRILLING thread drill rod parameters:

THREAD	Drill Rod		Length		Diameter		Weight approx kg
			mm	Foot	mm	inch
T51	Extension rod T51-Round52-T51		3050	10'	52	2	45.3
	Flushing hole 21.5mm		3660	12'	52	2	54.1
	Wrench flat 45mm		4270	14'	52	2	63
			4880	16'	52	2	71.8
			5530	18'	52	2	81.2
			6095	20'	52	2	89.4
T51	MF-rod T51-Round52-T51		1525	5'	52	2	26.2
	Flushing hole 21.5mm		1830	6'	52	2	30.6
			3050	10'	52	2	48.3
			3660	12'	52	2	57.1
			4270	14'	52	2	66
			4880	16'	52	2	74.8
			5530	18'	52	2	84.2
			6095	20'	52	2	90.4
THREAD	Guide Tube		Length		Diameter		Weight approx kg
			mm	inch	mm	inch
T51	Quide tube		1830	6'	76	3	42
	D76 for bits from 89-102ma and D87 for bits from 102-127m		3660	12'	76	3	81
			3660	12'	87	3 1/2	86

Order Guide: Thread type + Diameter + length

KINGDRILLING thread drill rod advantages:

- Achieve high and fast drilling speeds with our MM Extension Rod, maximizing efficiency on the job site.

- Customization options available to meet specific drilling requirements, ensuring precise and effective results.

- Experience quick and efficient service from order placement to delivery, guaranteeing a seamless process.

- Benefit from stable and prompt production lead-times, allowing for reliable project planning and execution.

- Enjoy a longer operating life with our durable MM Extension Rod, providing lasting performance and value.

FAQ:

1. How are drill pipes connected?
The full-hole style connection connects inside and outside thickened drill pipes, resulting in a drill pipe joint with an inner diameter equal to the thickened end diameter, both of which are smaller than the inner diameter of the pipe.

2. Superior durability of our products:
Our drill pipes are manufactured from high-quality materials, ensuring excellent durability and longevity. Each pipe has a forged thickening within its one-piece construction. Thick wall thickness and one-piece design create industry-leading strength and long service life. Each threaded connection is precision cut to our strict quality standards.

3. Optimal performance:

Whether you're working in rocky terrains or abrasive soil conditions, our pipes are built to withstand the harshest environments, minimizing downtime and enhancing the overall lifespan of your equipment. Achieve optimal drilling performance with our precision-engineered drill pipes. Designed for minimal friction and efficient energy transfer, our pipes facilitate smoother drilling operations, allowing you to complete projects faster and with greater accuracy.
