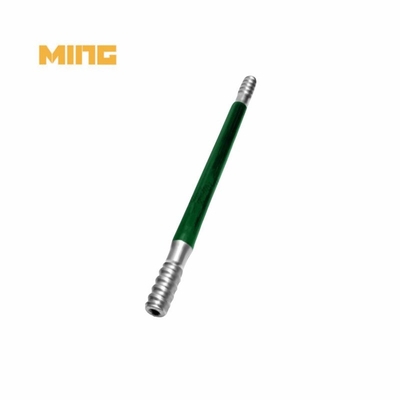

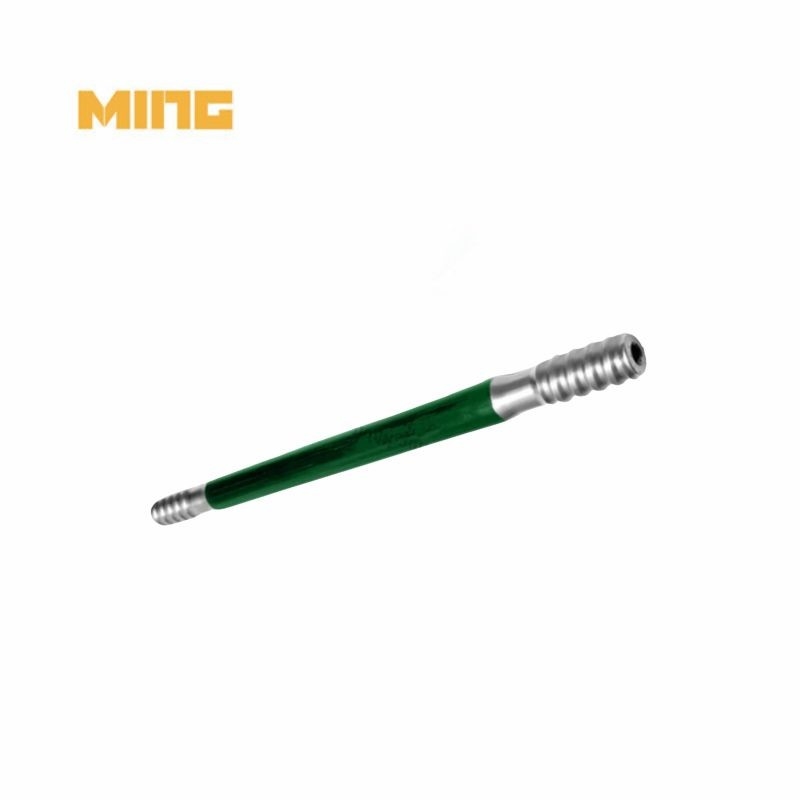

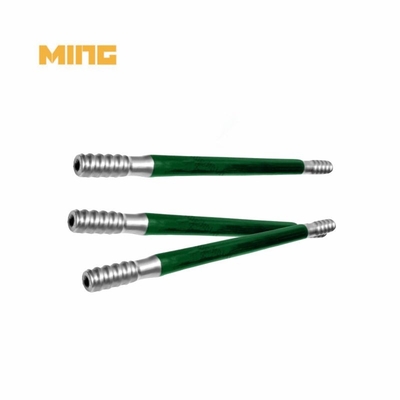

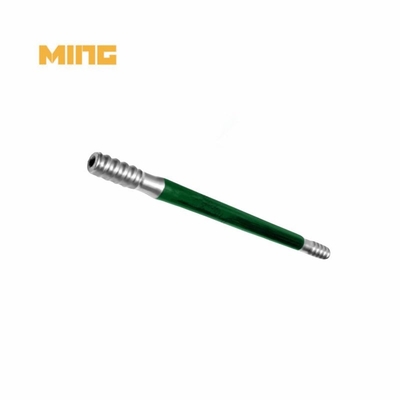

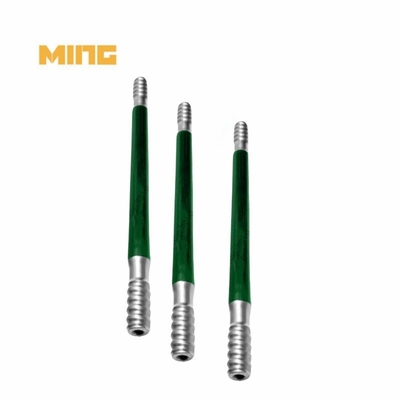

T51 Thread 6095mm Length Diamond Extension Rod For Water Well Drilling

Product name: T51 Thread 6095mm Length Diamond MM Extension Rod For Water Well Drilling

Product category: Drilling rod

Threaded Connection: T51

Length: 6095mm

KINGDRILLING Alloy steel with high strength is used to make threaded drill pipes. High-precision CNC machines are used to machine all tracks and threads. Induction hardening is used to induce the threads, which is then quickly heated and cooled. The mechanical qualities of the drill pipe are enhanced and its service life is guaranteed by precision temperature control heat treatment equipment.

The process of overall carburization hardens the outside steel body of the drill pipe and raises its carbon content. The drill bit's inner wall may be precisely fitted by the solid thread, enabling high precision and efficiency when performing open-pit drilling, underground mineral, and tunnel excavation jobs in challenging rock and terrain.

KINGDRILLING thread drill rod parameters:

THREAD	Drill Rod		Length		Diameter		Weight approx kg
			mm	Foot	mm	inch
T51	Extension rod T51-Round52-T51		3050	10'	52	2	45.3
	Flushing hole 21.5mm		3660	12'	52	2	54.1
	Wrench flat 45mm		4270	14'	52	2	63
			4880	16'	52	2	71.8
			5530	18'	52	2	81.2
			6095	20'	52	2	89.4
T51	MF-rod T51-Round52-T51		1525	5'	52	2	26.2
	Flushing hole 21.5mm		1830	6'	52	2	30.6
			3050	10'	52	2	48.3
			3660	12'	52	2	57.1
			4270	14'	52	2	66
			4880	16'	52	2	74.8
			5530	18'	52	2	84.2
			6095	20'	52	2	90.4
THREAD	Guide Tube		Length		Diameter		Weight approx kg
			mm	inch	mm	inch
T51	Quide tube		1830	6'	76	3	42
	D76 for bits from 89-102ma and D87 for bits from 102-127m		3660	12'	76	3	81
			3660	12'	87	3 1/2	86

Order Guide: Thread type + Diameter + length

KINGDRILLING thread drill rod advantages:

- Achieve high-speed drilling with MM Extension Rods, ensuring efficient and rapid drilling operations.
- Customization options are available to meet specific drilling needs, providing tailor-made solutions for different applications.
- Enjoy fast and efficient service from our dedicated team, guaranteeing timely assistance and support.
- Benefit from stable and rapid production lead times, ensuring continued availability of orders and timely delivery.
- Extended service life with durable MM Extension Rods, designed to withstand continuous and intense use in demanding work environments.

FAQ:

1. How are drill pipes connected?
When thicker drill pipes are joined on the inside and outside using a full-hole type connection, the result is a drill pipe joint with an inner diameter that is smaller than the pipe's inner diameter. The thickened end diameter and the inner diameter of the drill pipe junction are the same.

2. Superior product durability:

We use premium materials to ensure exceptional product durability and longevity. This is seen in our drill pipes. Every single pipe is made entirely of one piece, with a forged thickening inside. Industry-leading strength and extended service life are produced by strong wall thickness and one-piece construction. According to our exacting quality standards, every threaded connection is expertly cut.

3. Optimal performance:

Our pipes are designed to resist the toughest circumstances, whether you're working in rocky or abrasive soil. This reduces downtime and extends the equipment's lifespan. With our precisely designed drill pipes, you can get the best possible drilling performance. Our pipes, which are made for low friction and effective energy transfer, make drilling operations go more smoothly and enable you to finish projects more quickly and accurately.
