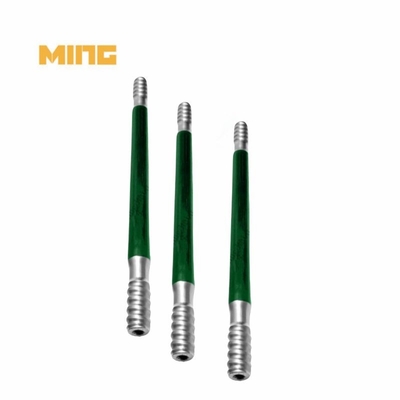

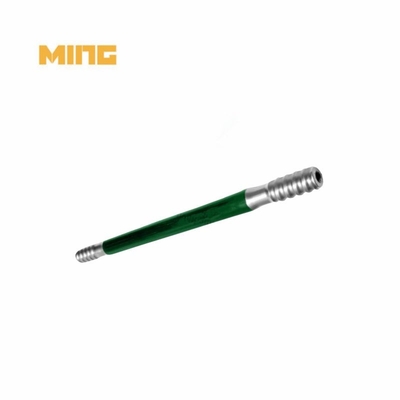

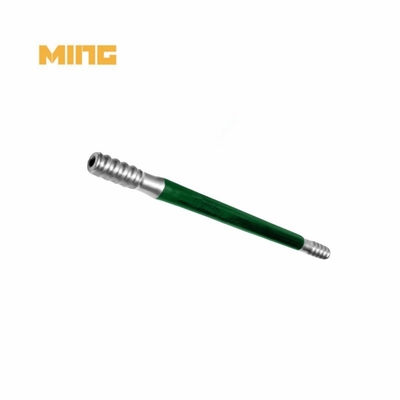

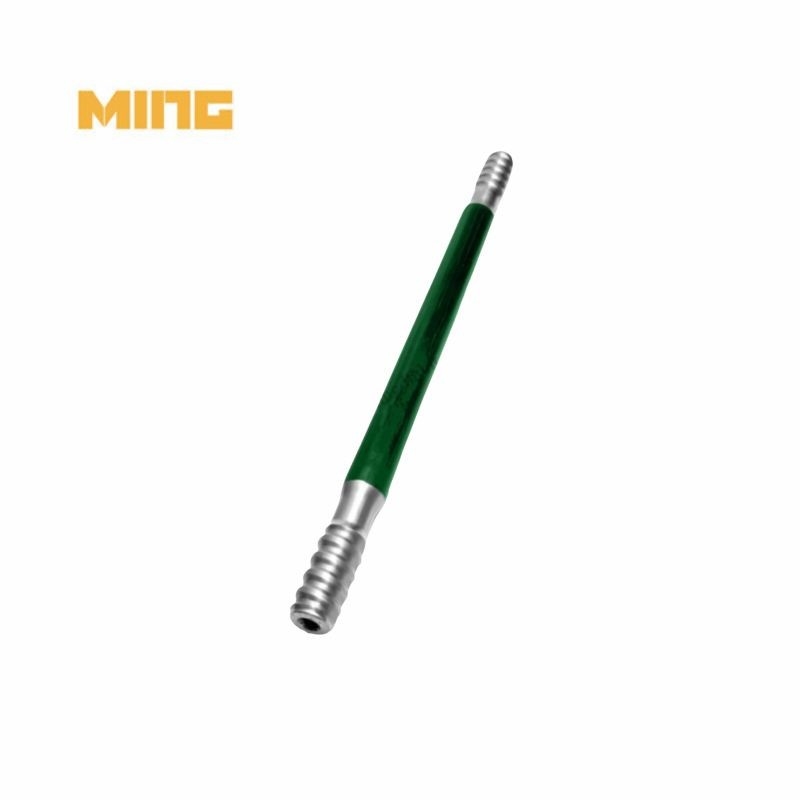

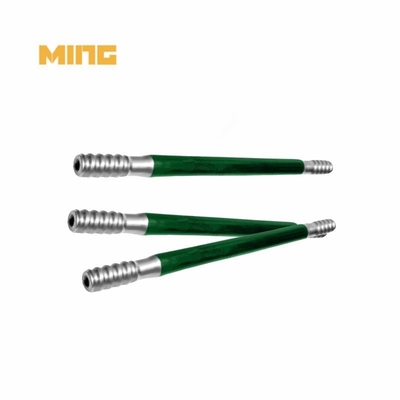

T51 Thread 1525mm Length Diamond Extension Rod For Underground Coal Mine Equipment

Product name: T51 Thread 1525mm Length Diamond MM Extension Rod For Underground Coal Mine Equipment

Product category: Drilling rod

Threaded Connection: T51

Length: 1525mm

KINGDRILLING Alloy steel with a high strength is used to make threaded drill pipes. High-precision CNC machines are used to machine all tracks and threads. Rapid heating and cooling are used to induce the threads after induction hardening. The mechanical qualities of the drill pipe are enhanced and its service life is guaranteed by precision temperature control heat treatment equipment.

Total carburization hardens the outer steel body and raises the carbon content of the drill pipe's outer layer. Drilling activities in complicated rocks and terrains can be completed with great precision and efficiency by using solid thread drill bits that fit exactly against the inner wall of the drill bit.

KINGDRILLING thread drill rod parameters:

THREAD	Drill Rod		Length		Diameter		Weight approx kg
			mm	Foot	mm	inch
T51	Extension rod T51-Round52-T51		3050	10'	52	2	45.3
	Flushing hole 21.5mm		3660	12'	52	2	54.1
	Wrench flat 45mm		4270	14'	52	2	63
			4880	16'	52	2	71.8
			5530	18'	52	2	81.2
			6095	20'	52	2	89.4
T51	MF-rod T51-Round52-T51		1525	5'	52	2	26.2
	Flushing hole 21.5mm		1830	6'	52	2	30.6
			3050	10'	52	2	48.3
			3660	12'	52	2	57.1
			4270	14'	52	2	66
			4880	16'	52	2	74.8
			5530	18'	52	2	84.2
			6095	20'	52	2	90.4
THREAD	Guide Tube		Length		Diameter		Weight approx kg
			mm	inch	mm	inch
T51	Quide tube		1830	6'	76	3	42
	D76 for bits from 89-102ma and D87 for bits from 102-127m		3660	12'	76	3	81
			3660	12'	87	3 1/2	86

Order Guide: Thread type + Diameter + length

KINGDRILLING thread drill rod advantages:

- High-speed drilling with our MM Extension Rods ensures efficient and speedy drilling operations.

- Offers customization options to meet specific drilling needs, providing tailored solutions for different applications.

- Enjoy the fast and efficient service of our dedicated team, guaranteeing timely assistance and support.

- Benefit from stable and rapid production lead times, ensuring continued order availability and timely delivery.

- Extended service life with durable MM Extension Rods designed to withstand continuous and intense use in demanding working environments.

FAQ:

1. How are drill pipes connected?
When thicker drill pipes are joined on the inside and outside using a full-hole type connection, the result is a drill pipe joint with an inner diameter that is smaller than the pipe's inner diameter. The thickened end diameter and the inner diameter of the drill pipe junction are the same.

2. Superior product durability:

We use premium materials to ensure exceptional product durability and longevity. This is seen in our drill pipes. Every single pipe is made entirely of one piece, with a forged thickening inside. Industry-leading strength and extended service life are produced by strong wall thickness and one-piece construction. According to our exacting quality standards, every threaded connection is expertly cut.

3. Optimal performance:

Our pipes are designed to resist the toughest circumstances, whether you're working in rocky or abrasive soil. This reduces downtime and extends the equipment's lifespan. With our precisely designed drill pipes, you can get the best possible drilling performance. Our pipes, which are made for low friction and effective energy transfer, make drilling operations go more smoothly and enable you to finish projects more quickly and accurately.
