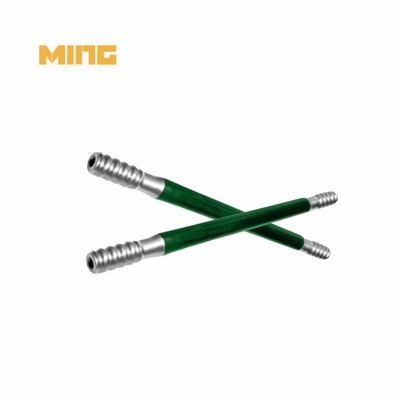

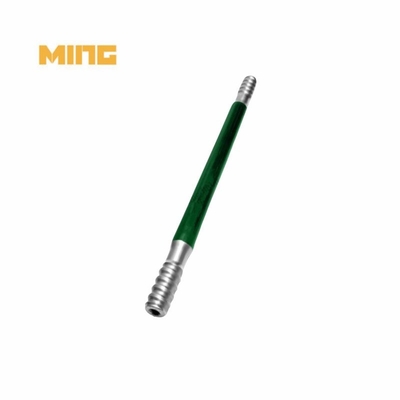

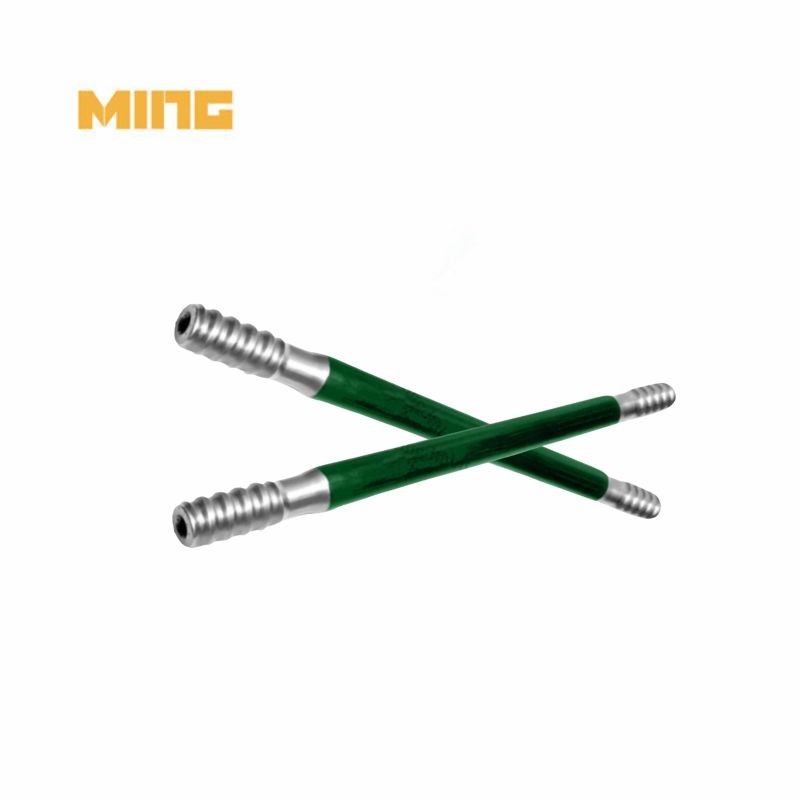

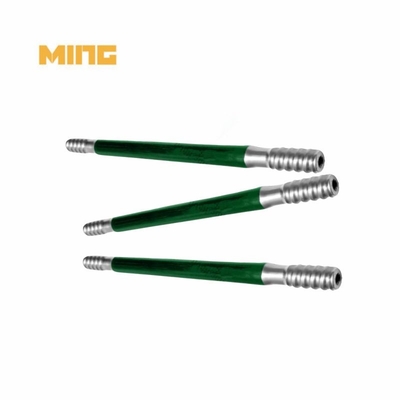

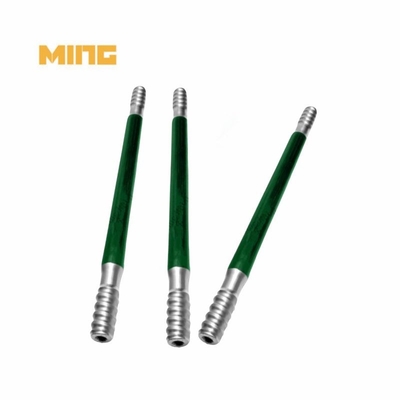

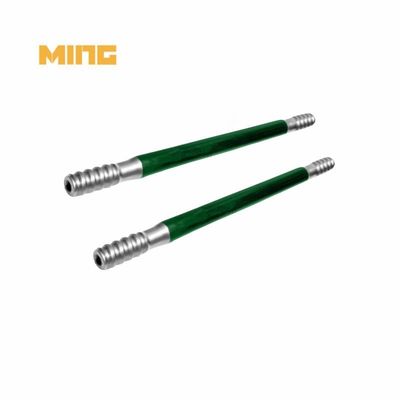

T38 Thread 1830mm Length Diamond MM Extension Rod For Construction Machinery

Product name: T38 Thread 1830mm Length Diamond MM Extension Rod For Construction Machinery

Product category: Drilling rod

Threaded Connection: T38

Length: 1830mm

KINGDRILLING Alloy steel with a high strength is used to make threaded drill pipes. High-precision CNC machines are used to machine all tracks and threads. Rapid heating and cooling are used to induce the threads after induction hardening. The mechanical qualities of the drill pipe are enhanced and its service life is guaranteed by precision temperature control heat treatment equipment.

Total carburization hardens the outer steel body and raises the carbon content of the drill pipe's outer layer. Drilling activities in complicated rocks and terrains can be completed with great precision and efficiency by using solid thread drill bits that fit exactly against the inner wall of the drill bit.

KINGDRILLING thread drill rod parameters:

THREAD	description		Length		Diameter		Weight approx kg
			mm	Foot	mm	inch
T38	Extension rod T38-Round39-138		1220	4'	39	1 1/2	10.2
	Flushing hole 14.5mm.		1525	5'	39	1 1/2	12.8
	Wrench flat 32mm.		1830	6'	39	1 1/2	15.3
			2435	8'	39	1 1/2	20.4
			3050	10'	39	1 1/2	25.5
			3660	12'	39	1 1/2	30.9
			3965	13'	39	1 1/2	33.2
			4270	14'	39	1 1/2	35.7
			4880	16'	39	1 1/2	41
			5530	18'11/2"	39	1 1/2	46.3
			6095	20'	39	1 1/2	50.9
T38	MF-rod T38-Rourd39-138		915	3'	39	1 1/2	10.7
	Flushing hole 14.5mm		1220	4'	39	1 1/2	13.3
			1525	5'	39	1 1/2	15.8
			1830	6'	39	1 1/2	18.3
			3050	10'	39	1 1/2	28.5
			3660	12'	39	1 1/2	33.6
			4270	14'	39	1 1/2	38.7
			4880	16'	39	1 1/2	43.7
			5530	18'11/2"	39	1 1/2	49.2
			6095	20'	39	1 1/2	53.9
T38	Hex. extension rod T38-Hex32-T38		1220	4'	32	1 1/4	8.6
	Flushing hole 9.6mm		1830	6'	32	1 1/4	12.6
			2435	8'	32	1 1/4	16.6
			3050	10'	32	1 1/4	20.8
			3660	12'	32		24.9
T38	Double thread rod T38-Round39-T39		3050	10'	46	1.75	25.7
	Flushing hole 14.5mm.
	Wrench flat 32m.
			3660	12'	46	1.75	30.9
T38	Guide speedrod T38-Round46-T38		1830	6'	46	1 3/4	23.5
	Flushing hole 17mm.		3050	10'	46	1 3/4	37.2
			3660	12'	46	1 3/4	44
			4270	14'	46	1 3/4	50.9
			4880	16'	46	1 3/4	57.7
			5530	18'11/2"	46	1 3/4	65
			6095	20'	46	1 3/4	71.3

Order Guide: Thread type + Diameter + length

KINGDRILLING thread drill rod advantages:

- Achieve stable and reliable drilling speed with our MM Extension Rod, ensuring consistent performance on the job site.

- Experience longer operating life thanks to the superior wear resistance and impact toughness of our MM Extension Rod, providing durability for extended use.

- Enhance productivity with high working efficiency, allowing you to complete drilling tasks efficiently and effectively.

- Benefit from quick and efficient service, ensuring minimal downtime and maximizing operational performance.

- Made with high-quality materials, our MM Extension Rod is designed for heavy-duty use in a variety of drilling applications, providing reliable results every time.

FAQ:

1. How should one use a drilling pipe?
The device used to transfer power during drilling operations is the drill rod. Many parts, including the drill, stabilizers, drilling pipe, drill collars, special connectors, and Kelly, usually make up a drill string. Controlling the drill bit, applying weight on bit (WOB), transmitting power, carrying out specific operations like cement extrusion and managing subterranean mishaps, and (4) delivering drilling fluid are the five primary responsibilities of the drill string.

2. What are the benefits of using heavy-duty drill pipe?
a. When drilling a deep well, heavy drill pipe can be used to replace a portion of the drill collar. This will increase drilling capacity, improve load, and decrease torque.
b. Using a simple method that can reduce tripping time, to pick up the sub and safety clamp that are not in use during drilling operations.
c. Drilling directional wells at a high speed with low torque minimizes string abrasion and fracture without differential pressure and sticking due to drill collar's lower steel grade and tiny touching area with the well wall.

3. What is a drill rod?

A drill rod is a form of bar stock machined to produce tools such as drill bits, taps, dowel pins, shafts, reamers, files, punches and hammers. It's soft enough to shape but can be heated up to revert back to the hardness. Drill rods are manufactured from tool steel that has been ground to a tight tolerance diameter.
