Product Details:
|
| Material: | Tungsten Carbide & Steel | Processing Type: | Forging |
|---|---|---|---|
| Machine Type: | Downhole Tools | Use: | Blasting |
| Type: | Tapered Button Bit | Color: | Blue,Golden,other Color Available,Blue And Yellow |
| Product Name: | Taper Rock Drill Bit | Application: | Rock Drilling |
| Advantage: | High Performance Rock Drill Bit | Usage: | Hole Drilling |
| Face: | Flat / Convex / Concave | Key Words: | Taper Bit, Tapered Bit, Taper Drill Bits |
| High Light: | Blasting Tapered Drill Button Bits,Tungsten Carbide Drill Button Bits,33mm Tapered Drill Button Bits |
||

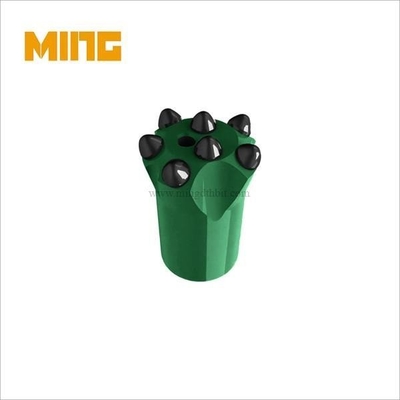

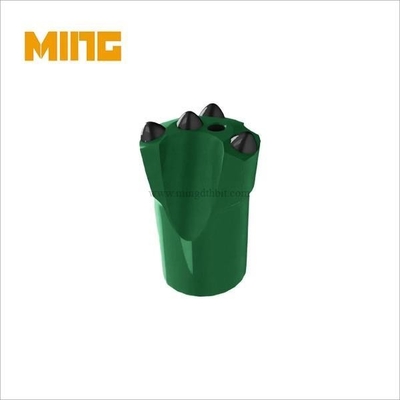

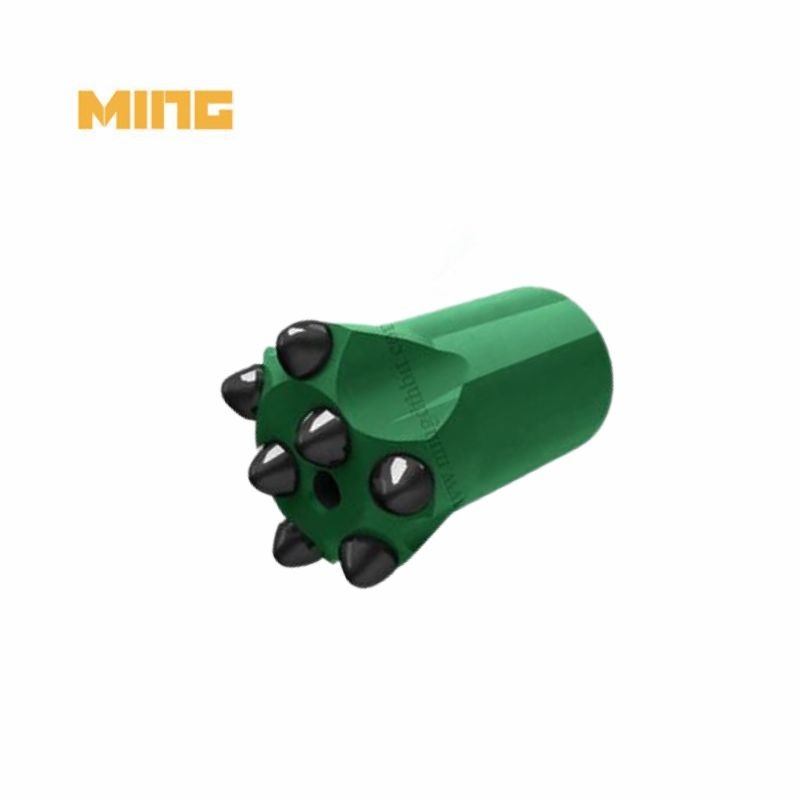

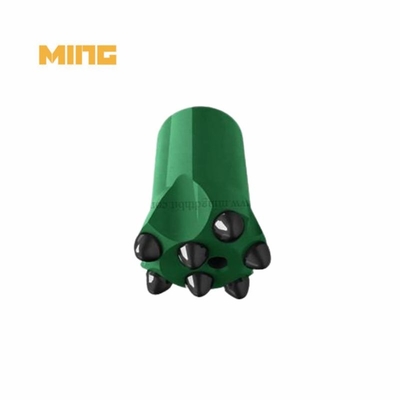

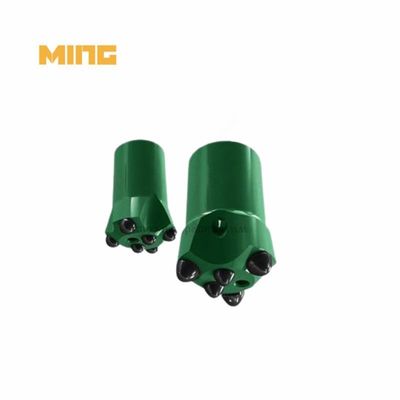

Product name: 7 Degree 33mm Tungsten Carbide Tapered Drill Button Bits For Blasting
Product category: DTH taper drill bit
Button Shape: normally is ballistic button, also available for spherical button
Matched connection: 7 degree taper
Diameter: 33mm
KINGDRILLING DTH taper drill bit description:
The tapered button drill bit is mainly used in conjunction with a pneumatic rock drill and a tapered drill pipe to perform drilling operations through the taper connection on the drill bit and drill pipe. Cone drill bits are suitable for hard rock drilling and are mainly used in secondary crushing, anchoring, drifting and other fields in mines. The taper drill bit is an upgraded product of the chisel drill bit and cross drill bit. Due to the use of tungsten carbide bit and hot-dip skirt, the drill bit has good effect and long service life. Conventional taper angles for tapered drill bits are 7°, 11° and 12°.
Our company offers small hole rock drill bits: Tapered Drill Bit is different with thread button bit as long hole bit to use taper match with bit rod to be used for air leg or hand held jack hammerdriller in stone quarrying, and mineral.
KINGDRILLING tapered drill bits parameters:
| Model | Bit Dia.(mm) | Tip size (mm) | Taper | Weight(kg) |
| MZ0732-7 | 32 | 5×7 2×7 | 7" | 0.3 |
| MZ0833-7 | 33 | 6×7 2×7 | 7" | 0.4 |
| MZ0735-7 | 35 | 5×8 2×7 | 7" | 0.4 |
| MZ0737-7 | 37 | 5×8 2×8 | 7" | 0.4 |
| MZ0438-7 | 38 | 3×9 1×9 | 7" | 0.3 |
| MZ0440-7 | 40 | 3×9 1×9 | 7" | 0.4 |
| MZ0741-7 | 41 | 5×9 2×7 | 7" | 0.5 |
| MZ0442-7 | 42 | 3×9 1×9 | 7" | 0.4 |
| MZ0543-7 | 43 | 3×9 2×9 | 7" | 0.4 |
| MZ0528-11 | 28 | 4×7 1×7 | 11" | 0.2 |
| MZ0530-11 | 30 | 4×7 1×7 | 11" | 0.2 |
| MZ0532-11 | 32 | 3×8 2×7 | 11" | 0.2 |
| MZ0632-11 | 32 | 4×7 2×7 | 11" | 0.2 |
| MZ0732-11 | 32 | 5×7 2×7 | 11" | 0.2 |
| MZ0734-11 | 34 | 5×8 2×7 | 11" | 0.3 |
| MZ0536-11 | 36 | 3×8 2×8 | 11" | 0.3 |
| MZ0636-11 | 36 | 4×8 2×8 | 11" | 0.3 |
| MZ0736-11 | 36 | 5×8 2×8 | 11" | 0.3 |
| MZ0738-11 | 38 | 5×8 2×8 | 11" | 0.4 |
| MZ0741-11 | 41 | 5×9 2×8 | 11" | 0.4 |
| MZ0732-12 | 32 | 5×7 2×7 | 12" | 0.3 |
| MZ0735-12 | 35 | 5×8 2×7 | 12" | 0.4 |
| MZ0737-12 | 37 | 5×8 2×8 | 12" | 0.4 |
| MZ0741-12 | 41 | 5×9 2×8 | 12" | 0.5 |
| MZ0743-12 | 43 | 5×9 2×8 | 12" | 0.5 |
| MZ0745-12 | 45 | 5×9 2×9 | 12" | 0.5 |
How to order
Tapered Drill Bits: Bit Diameter + Taper Degree + Socket Diameter.
Each drill bit has a different size and design to optimize its application, adapt to a wider range of drilling conditions, and meet different job requirements.
In order to ensure normal service life, the taper bit needs to fit well with the taper drill pipe, and the taper of the taper drill bit and the taper drill pipe must be the same.
Kingdrilling tapered drill button bits application:
1. Mineral
2. Tunneling & Underground Project
3. Construction Drill And Blast
4. Quarrying & Aggregate
5. Hydropower Project
Kingdrilling tapered drill button bits advantages:
1. Carburized rods provide you with excellent service life and increased productivity.
2. Tapered drill bits have additional wear resistance, which means lower costs.
3. A wide range of varieties and Oems can easily meet demand.
4. Product quality ensures complete control of production tasks.
FAQ:
1.What is the general delivery time?
15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
2. Competitive price:
A:KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor.
3. What is the materials?
Steel is 42CrMo, Alloy is from ZHUZHOU 601
4. Product feature
Kingdrilling DTH tools are forged by advanced electron-hydraulic forging hammer, and harness process is managed by multipurpose furnace heat treatment.
