Product Details:
|
| Material: | Tungsten Carbide & Steel | Processing Type: | Forging |
|---|---|---|---|
| Machine Type: | Downhole Tools | Use: | Blasting |
| Type: | Tapered Button Bit | Color: | Blue,Golden,other Color Available,Blue And Yellow |
| Product Name: | Taper Rock Drill Bit | Application: | Rock Drilling |
| Advantage: | High Performance Rock Drill Bit | Usage: | Hole Drilling |
| Face: | Flat / Convex / Concave | Key Words: | Taper Bit, Tapered Bit, Taper Drill Bits |
| High Light: | Tapered X Cross Button Bits,43mm X Cross Button Bits,Underground Tapered Button Bits |
||

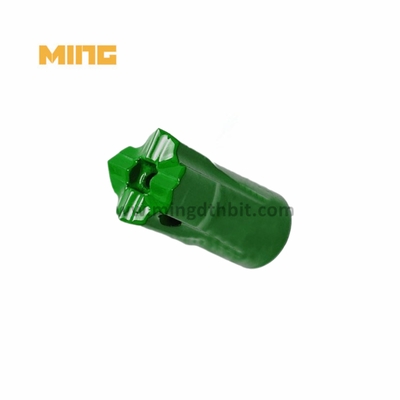

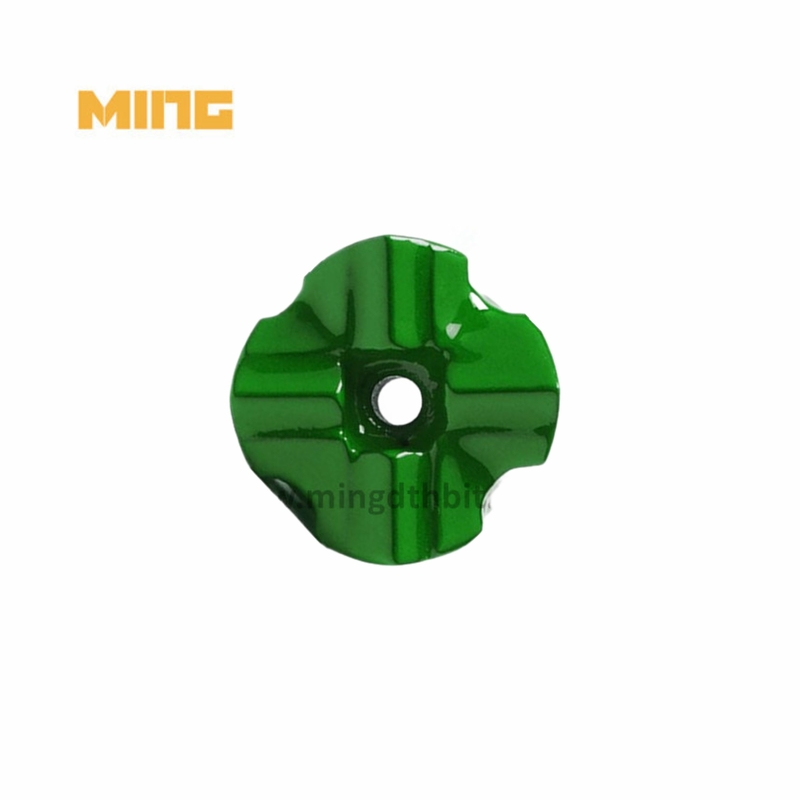

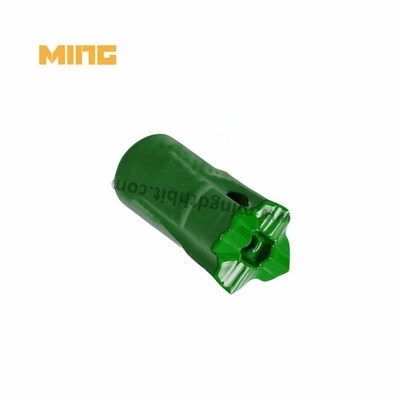

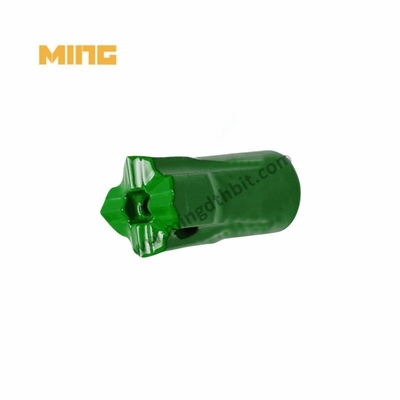

Product name: High Quality Steel 7 Degree 43mm Tapered X Cross Button Bits For Underground Project
Product category: DTH taper drill bit
Matched connection: 7 degree taper
Diameter: 42mm
KINGDRILLING DTH taper drill bit description:
The tapered cross drill bit has strong comprehensive adaptability and can be used under any rock drilling conditions. Compared with the tapered chisel drill bit, the tapered cross drill bit has better drilling performance because the carbide tip on the cross drill is doubled, that is, the carbide is in the shape of a cross on the drill bit. Taper cross drill bits are mainly used in hard or very hard rock formations
The tapered cross drill bit is connected to the conical drill steel of the rock drill and is used to drill holes. The tapered cross drill bit has strong comprehensive adaptability and can be used under any rock drilling conditions. Compared to tapered chisel drill bits, tapered cross drill bits have better drilling performance because the carbide tip on the cross drill bit is doubled, which means the carbide shape on the drill bit is cross-shaped.
KINGDRILLING tapered drill bits parameters:
| Model | Bit Dia.(mm) | Tip size (mm) | Taper | Weight(kg) |
| MZ0732-7 | 32 | 5×7 2×7 | 7" | 0.3 |
| MZ0833-7 | 33 | 6×7 2×7 | 7" | 0.4 |
| MZ0735-7 | 35 | 5×8 2×7 | 7" | 0.4 |
| MZ0737-7 | 37 | 5×8 2×8 | 7" | 0.4 |
| MZ0438-7 | 38 | 3×9 1×9 | 7" | 0.3 |
| MZ0440-7 | 40 | 3×9 1×9 | 7" | 0.4 |
| MZ0741-7 | 41 | 5×9 2×7 | 7" | 0.5 |
| MZ0442-7 | 42 | 3×9 1×9 | 7" | 0.4 |
| MZ0543-7 | 43 | 3×9 2×9 | 7" | 0.4 |
| MZ0528-11 | 28 | 4×7 1×7 | 11" | 0.2 |
| MZ0530-11 | 30 | 4×7 1×7 | 11" | 0.2 |
| MZ0532-11 | 32 | 3×8 2×7 | 11" | 0.2 |
| MZ0632-11 | 32 | 4×7 2×7 | 11" | 0.2 |
| MZ0732-11 | 32 | 5×7 2×7 | 11" | 0.2 |
| MZ0734-11 | 34 | 5×8 2×7 | 11" | 0.3 |
| MZ0536-11 | 36 | 3×8 2×8 | 11" | 0.3 |
| MZ0636-11 | 36 | 4×8 2×8 | 11" | 0.3 |
| MZ0736-11 | 36 | 5×8 2×8 | 11" | 0.3 |
| MZ0738-11 | 38 | 5×8 2×8 | 11" | 0.4 |
| MZ0741-11 | 41 | 5×9 2×8 | 11" | 0.4 |
| MZ0732-12 | 32 | 5×7 2×7 | 12" | 0.3 |
| MZ0735-12 | 35 | 5×8 2×7 | 12" | 0.4 |
| MZ0737-12 | 37 | 5×8 2×8 | 12" | 0.4 |
| MZ0741-12 | 41 | 5×9 2×8 | 12" | 0.5 |
| MZ0743-12 | 43 | 5×9 2×8 | 12" | 0.5 |
| MZ0745-12 | 45 | 5×9 2×9 | 12" | 0.5 |
How to order
Tapered Drill Bits: Bit Diameter + Taper Degree + Socket Diameter.
Every drill bit is unique in size and design to maximize its use, accommodate a greater variety of drilling circumstances, and satisfy various project specifications.
The taper bit and the taper drill pipe must fit perfectly and have the same taper in order to guarantee a regular service life.
Kingdrilling tapered drill button bits application:
1. Mineral
2. Tunneling & Underground Project
3. Construction Drill And Blast
4. Quarrying & Aggregate
5. Hydropower Project
Kingdrilling tapered drill button bits advantages:
1. The tapered button drill bit is perfectly connected to the tapered drill rod for drilling;
2. Stable and mature welding technology ensures the high quality of the drill bit;
3. The taper size is precise and perfectly matches the rod body;
4. Reliable and cost-effective;
5. Advanced tungsten carbide blade;
6. The drill body is made of high-quality steel and processed using the most advanced CNC machinery and heat treatment technology.
FAQ:
1.What is the general delivery time?
15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
2. Competitive pricing:
A: Since KINGDRILLING factory sells directly to consumers without the need of a distributor, it can provide you the best price.
3. How do I select the DTH drill bit's appropriate head face?
Concave: Excellent for perpendicularity of the hole and appropriate for drilling deep wells in a variety of formations.
Convex: Good drilling efficiency, moderate borehole perpendicularity, and appropriate for the development of strata with a moderate degree of hardness.
Flat: This type of drilling is well suited for tough strata, particularly those with fractures, adequate fracture spacing, and a well-perpendicular borehole.
4. A feature of the product
Innovative electron-hydraulic forging hammers are used to forge kingdrilling DTH tools, and multipurpose furnace heat treatment controls the harness process.
