Product Details:
|
| Material: | Tungsten Carbide & Steel | Processing Type: | Forging |
|---|---|---|---|
| Machine Type: | Downhole Tools | Use: | Blasting |
| Type: | Tapered Button Bit | Color: | Blue,Golden,other Color Available,Blue And Yellow |
| Product Name: | Taper Rock Drill Bit | Application: | Rock Drilling |
| Advantage: | High Performance Rock Drill Bit | Usage: | Hole Drilling |
| Face: | Flat / Convex / Concave | Key Words: | Taper Bit, Tapered Bit, Taper Drill Bits |
| High Light: | Hard Rock Drilling Tapered Button Bits,11Degree Taper Button Bits,Quarry Tapered Button Bits |
||

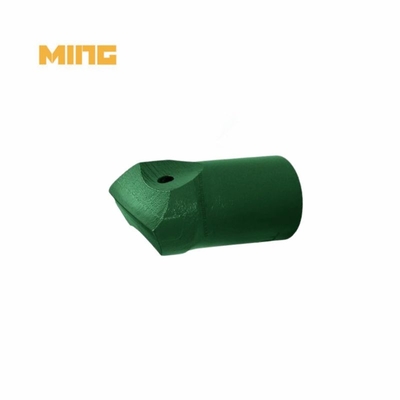

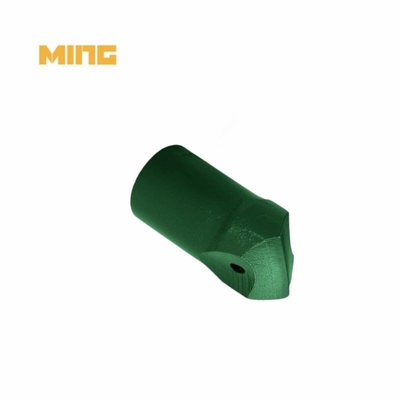

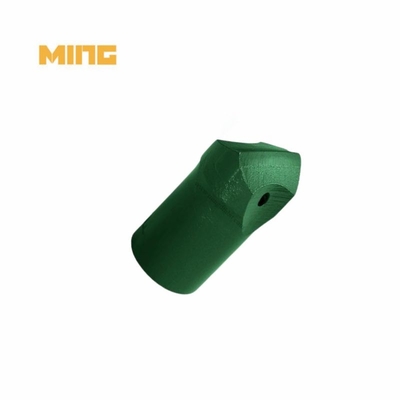

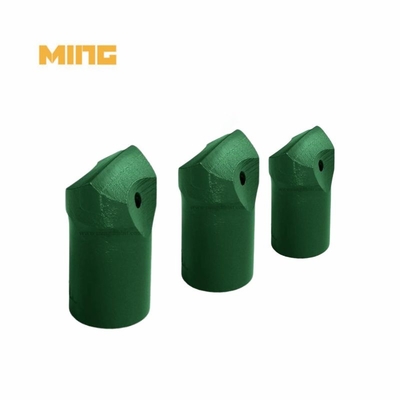

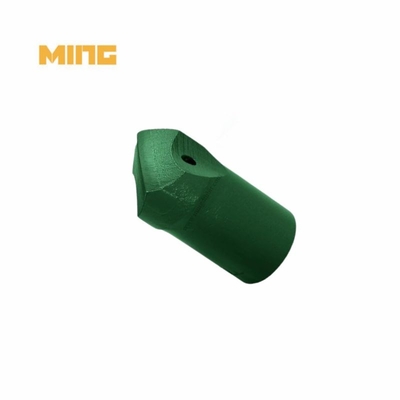

Product name: Durable 36mm Tapered Button Bits With 11 Degree Taper For Hard Rock Drilling In Quarry
Product category: DTH taper drill bit
Matched connection: 11 degree taper
Diameter: 34mm
KINGDRILLING DTH taper drill bit description:
Varying rock formations and rock drilling applications call for varying tapers on tapered chisel drill bits. On contemporary drill rigs, 11° and 12° taper sections are typical. Softer rock formations and low impact rock drills benefit from the 7° thin taper.
It is extensively employed to drill water wells by creating big diameter holes in rocks. Drilling for geothermal energy, oil fields, coal mines, tunnels, and subway engineering. mineral and building initiatives like power plants and highways. ideal for medium-hard, homogenous formations and very hard, abrasive rock formations. pliable stone, fractured rock structure, etc.
Every tapered chisel drill bit is constructed from premium raw materials and is given a unique heat treatment. They can completely satisfy customers' needs for conveying design and have a very strong transporting capacity.
KINGDRILLING tapered drill bits parameters:
| Model | Bit Dia.(mm) | Tip size (mm) | Taper | Weight(kg) |
| MZ0732-7 | 32 | 5×7 2×7 | 7" | 0.3 |
| MZ0833-7 | 33 | 6×7 2×7 | 7" | 0.4 |
| MZ0735-7 | 35 | 5×8 2×7 | 7" | 0.4 |
| MZ0737-7 | 37 | 5×8 2×8 | 7" | 0.4 |
| MZ0438-7 | 38 | 3×9 1×9 | 7" | 0.3 |
| MZ0440-7 | 40 | 3×9 1×9 | 7" | 0.4 |
| MZ0741-7 | 41 | 5×9 2×7 | 7" | 0.5 |
| MZ0442-7 | 42 | 3×9 1×9 | 7" | 0.4 |
| MZ0543-7 | 43 | 3×9 2×9 | 7" | 0.4 |
| MZ0528-11 | 28 | 4×7 1×7 | 11" | 0.2 |
| MZ0530-11 | 30 | 4×7 1×7 | 11" | 0.2 |
| MZ0532-11 | 32 | 3×8 2×7 | 11" | 0.2 |
| MZ0632-11 | 32 | 4×7 2×7 | 11" | 0.2 |
| MZ0732-11 | 32 | 5×7 2×7 | 11" | 0.2 |
| MZ0734-11 | 34 | 5×8 2×7 | 11" | 0.3 |
| MZ0536-11 | 36 | 3×8 2×8 | 11" | 0.3 |
| MZ0636-11 | 36 | 4×8 2×8 | 11" | 0.3 |
| MZ0736-11 | 36 | 5×8 2×8 | 11" | 0.3 |
| MZ0738-11 | 38 | 5×8 2×8 | 11" | 0.4 |
| MZ0741-11 | 41 | 5×9 2×8 | 11" | 0.4 |
| MZ0732-12 | 32 | 5×7 2×7 | 12" | 0.3 |
| MZ0735-12 | 35 | 5×8 2×7 | 12" | 0.4 |
| MZ0737-12 | 37 | 5×8 2×8 | 12" | 0.4 |
| MZ0741-12 | 41 | 5×9 2×8 | 12" | 0.5 |
| MZ0743-12 | 43 | 5×9 2×8 | 12" | 0.5 |
| MZ0745-12 | 45 | 5×9 2×9 | 12" | 0.5 |
How to order
Tapered Drill Bits: Bit Diameter + Taper Degree + Socket Diameter.
Kingdrilling tapered drill button bits application:
1. Mineral
2. Tunneling & Underground Project
3. Construction Drill And Blast
4. Quarrying & Aggregate
5. Hydropower Project
Kingdrilling tapered chisel bits advantages:
1. The tapered button drill bit is perfectly connected to the tapered drill rod for drilling.
2. Stable and mature welding technology ensures the high quality of drill bits
3. Precise taper size perfectly matches the rod
4. Reliable work and very cost-effective
5.High quality tungsten carbide blade
6. The drill bit body is made of high-quality steel and processed using the most advanced CNC machinery and heat treatment.
FAQ:
1.What is the general delivery time?
15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
2. Competitive pricing:
A: As KINGDRILLING sells directly to consumers without a distributor, they can offer the greatest price.
3. How do I choose the appropriate head face for my DTH drill bit?
Concave: Ideal for drilling deep wells in a range of formations and for maintaining hole perpendicularity.
Convex: Good drilling efficiency, moderate borehole perpendicularity, and suitable for developing strata with a moderate degree of hardness.
Flat drilling is ideal for tough strata, especially those with fractures, proper fracture spacing, and a borehole that is perpendicular.
4. Features of the product
Innovative electron-hydraulic forging hammers are employed to forge kingdrilling DTH tools, while a multipurpose furnace heat treatment regulates the harness process.
