Product Details:
|
| Material: | Tungsten Carbide & Steel | Processing Type: | Forging |
|---|---|---|---|
| Machine Type: | Downhole Tools | Use: | Blasting |
| Type: | Tapered Button Bit | Color: | Blue,Golden,other Color Available,Blue And Yellow |
| Product Name: | Taper Rock Drill Bit | Application: | Rock Drilling |
| Advantage: | High Performance Rock Drill Bit | Usage: | Hole Drilling |
| Face: | Flat / Convex / Concave | Key Words: | Taper Bit, Tapered Bit, Taper Drill Bits |
| High Light: | Quarry Rock Drill Bits,12 Degree Tapered Rock Drill Bits,37mm Tapered Rock Drill Bits |
||

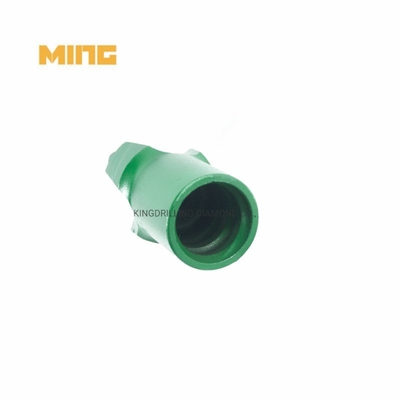

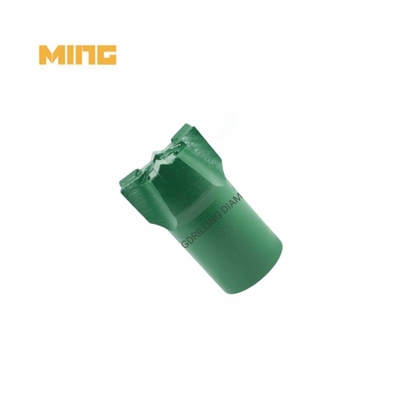

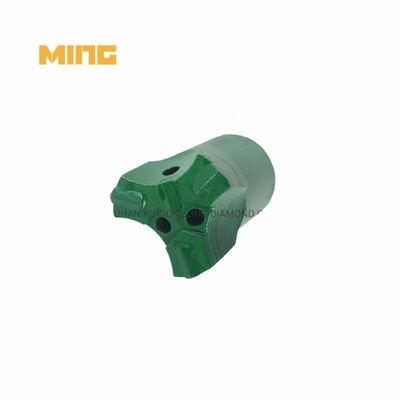

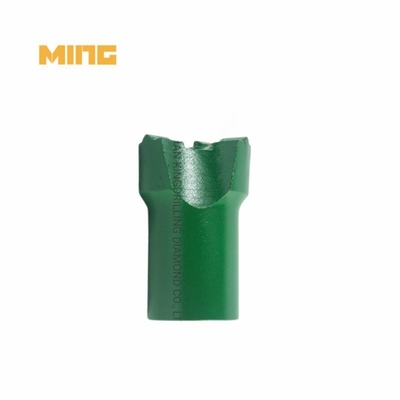

Product name: 12 Degree Taper 37mm Tapered Rock Drill Bits With Drill Rod For Quarry
Product category: DTH taper drill bit
Matched connection: 12 degree taper
Diameter: 37mm
KINGDRILLING DTH taper drill bit description:
Taper rock drill bits are made of high-quality carbide and are produced using advanced technology and equipment. There are different types of drill bits, such as taper chisel drill bits, taper cross drill bits and taper button drill bits, which are connected to the tapered drill pipe well for drilling. The tapered rock drill bit has a hot-pressed carbide button on the drill bit skirt, which has good drilling performance and excellent service life.
The taper drill bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.
KINGDRILLING tapered drill bits parameters:
| Model | Bit Dia. (mm) | Tip size (mm) | Taper | Weight (kg) |
| MZ0732-7 | 32 | 5×7 2×7 | 7" | 0.3 |
| MZ0833-7 | 33 | 6×7 2×7 | 7" | 0.4 |
| MZ0735-7 | 35 | 5×8 2×7 | 7" | 0.4 |
| MZ0737-7 | 37 | 5×8 2×8 | 7" | 0.4 |
| MZ0438-7 | 38 | 3×9 1×9 | 7" | 0.3 |
| MZ0440-7 | 40 | 3×9 1×9 | 7" | 0.4 |
| MZ0741-7 | 41 | 5×9 2×7 | 7" | 0.5 |
| MZ0442-7 | 42 | 3×9 1×9 | 7" | 0.4 |
| MZ0543-7 | 43 | 3×9 2×9 | 7" | 0.4 |
| MZ0528-11 | 28 | 4×7 1×7 | 11" | 0.2 |
| MZ0530-11 | 30 | 4×7 1×7 | 11" | 0.2 |
| MZ0532-11 | 32 | 3×8 2×7 | 11" | 0.2 |
| MZ0632-11 | 32 | 4×7 2×7 | 11" | 0.2 |
| MZ0732-11 | 32 | 5×7 2×7 | 11" | 0.2 |
| MZ0734-11 | 34 | 5×8 2×7 | 11" | 0.3 |
| MZ0536-11 | 36 | 3×8 2×8 | 11" | 0.3 |
| MZ0636-11 | 36 | 4×8 2×8 | 11" | 0.3 |
| MZ0736-11 | 36 | 5×8 2×8 | 11" | 0.3 |
| MZ0738-11 | 38 | 5×8 2×8 | 11" | 0.4 |
| MZ0741-11 | 41 | 5×9 2×8 | 11" | 0.4 |
| MZ0732-12 | 32 | 5×7 2×7 | 12" | 0.3 |
| MZ0735-12 | 35 | 5×8 2×7 | 12" | 0.4 |
| MZ0737-12 | 37 | 5×8 2×8 | 12" | 0.4 |
| MZ0741-12 | 41 | 5×9 2×8 | 12" | 0.5 |
| MZ0743-12 | 43 | 5×9 2×8 | 12" | 0.5 |
| MZ0745-12 | 45 | 5×9 2×9 | 12" | 0.5 |
How to order
Tapered Drill Bits: Bit Diameter + Taper Degree + Socket Diameter.
Product application:
Mineral, Quarrying, Tunneling, Construction, Geological Exploration, Water-well Drilling, Oilfield & Gas Industries.
Kingdrilling tapered chisel bits advantages:
- High-quality raw material ensures superior durability and reliability for the Tapered Rock Drill Bit
- Achieve high drilling quality with precision engineering and advanced design features
- Experience rapid driving speed for increased productivity on the job site
- Maximize working efficiency with the innovative design of the Tapered Rock Drill Bit
- Enjoy a long service life with this top-performing tool, backed by our exceptional after-sales service.
After Sales Service
1.Pre-sale service:
Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments . 1.Select equipment model. 2.Design and manufacture products according to client's special requirement ; 3.Train technical personnel for clients.
2.Services during the sale:
1.Pre-check and accept products ahead of delivery.
2. Help clients to draft solving plans.
3.After-sale services:
Provide considerate services to minimize clients' worries.
1.Complete After-sales service,professional engineers available to service machinery at home or oversea.
2. 24 hours technical support by e-mail.
3.Other essential technological service.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from ourwebsite for a better understanding.
4. How to make sure the quality?
A: More than 40 Years engineer to make sure the quality, 100% inspection.
5. What is the general delivery time?
A: 15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
6. Methods of Payment
A: T/T (Telegraphic Transfer) or Western Union.
