Product Details:
|
| Processing Type: | Forging | Machine Type: | Downhole Tools |
|---|---|---|---|
| Use: | Quarry | Type: | Drill Bit |
| Material: | Tungsten Carbide & Steel | Color: | Blue,Golden,other Color Available,Blue And Yellow |
| Product Name: | Factory Hot Selling DTH Drill Bits | Application: | Rock Drilling |
| Advantage: | High Performance Rock Drill Bit | Packing: | Wooden Case |
| Usage: | Hole Drilling | Face: | Flat / Convex / Concave |
| Key Words: | Dth Bit | ||
| High Light: | DHD25 Exploration Drill Button Bit,82mm Drill Button Bit,2 Inch Drill Button Bit |
||

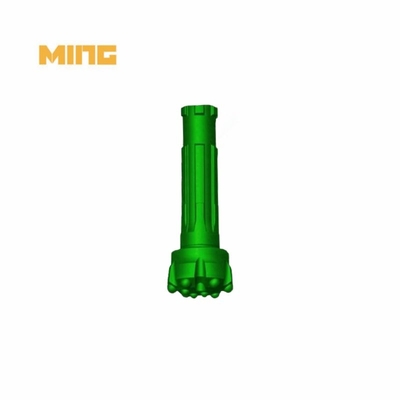

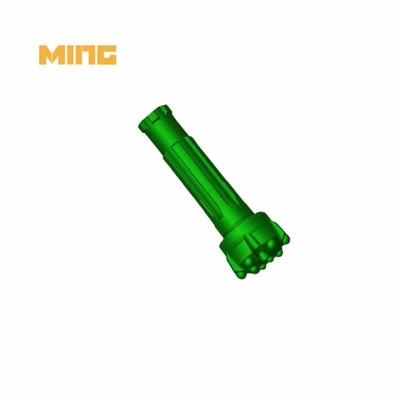

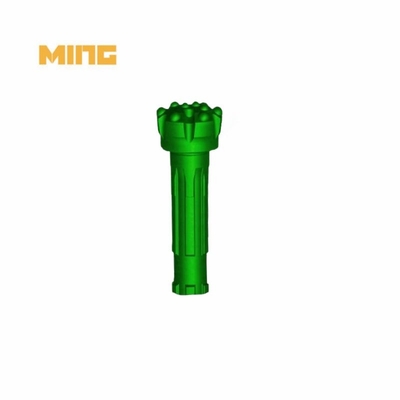

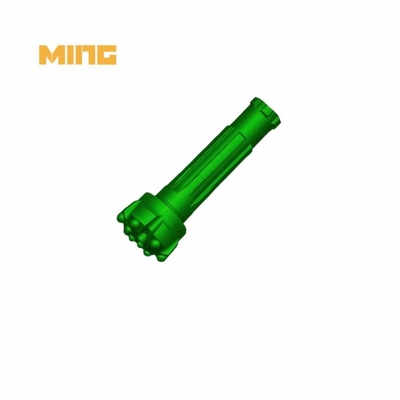

Product name: 82mm 2 Inch DHD25 Shank Down The Hole DTH Hammer Drill Button Bit For Exploration Drilling
Product category: DTH drill tools
Matched hammer: Hammer HD25
Diameter: 82mm
KINGDRILLING high air pressure DTH button bit description:
In the realm of mineral, construction, and exploration, the DTH (Down-The-Hole) Drill Bit stands as a beacon of innovation, transforming the way rock drilling is approached. This cutting-edge tool has revolutionized the industry by offering efficiency, precision, and power like never before.
As technology advances, so do DTH drill bits. Manufacturers continuously innovate to improve the performance and durability of these essential tools. Enhanced designs, superior materials, and improved manufacturing processes have resulted in DTH drill bits that offer better penetration rates, longer lifespan, and increased efficiency.
Additionally, the integration of automation and data analytics has revolutionized drilling operations. Real-time monitoring and feedback systems allow operators to optimize drilling parameters, leading to more precise and productive outcomes. These technological advancements not only improve operational efficiency but also contribute to a safer working environment for personnel.
KINGDRILLING 2 inch middle air pressure DTH button bit technical parameters:
| 2 inch Middle Air Pressure DTH bits | |||||
| Model | Bit Dia. (mm) | NO. X Button Dia. | NO.Air Holes (PCS) | Weight (KG) | |
| Gauge | Front | ||||
| MDHD25-76 | 76 | 6*Φ13 | 5*Φ10 | 2 | 3.6 |
| MDHD25-82 | 82 | 6*Φ14 | 4*Φ11 | 2 | 4.0 |
| MDHD25-90 | 90 | 8*Φ12 | 5*Φ12 | 2 | 4.2 |
Order guide: Shank+Head diameter+Face design+Button shape
Kingdrilling DTH bit application:
1. Borehole drilling, quarry blasting, and mineral
2. drilling open holes for gas and oil, water wells, and dip hole wells
3. Drilling foundations and pilings
Key Features and Benefits
Efficiency: The DTH Drill Bit’s design allows for faster penetration rates and increased drilling efficiency, making it a preferred choice for projects requiring speed and accuracy.
Precision: With its ability to maintain a straight drilling trajectory and consistent hole diameter, the DTH Drill Bit ensures precise drilling results, crucial for various applications such as blasting and foundation work.
Versatility: DTH Drill Bits are versatile tools suitable for a wide range of drilling tasks, from mineral and quarrying to geotechnical exploration and water well drilling.
Cost-Effectiveness: By reducing drilling time and minimizing downtime, the DTH Drill Bit proves to be a cost-effective solution for industries seeking to optimize their drilling operations.
FAQ:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 25 days for production.
Only 3 or 5 days if we have stock on your request size.
3. Shipping way
Sample order: We suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: We suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for each order before shipping out.
5. After Services:
1. Our sales team will response for your question within 24 hours (Holidays Excluded)
2. Technical Support will be available in any time
