Product Details:
|
| Processing Type: | Forging | Machine Type: | Downhole Tools |
|---|---|---|---|
| Use: | Quarry | Type: | Drill Bit |
| Material: | Tungsten Carbide & Steel | Color: | Blue,Golden,other Color Available,Blue And Yellow |
| Product Name: | Factory Hot Selling DTH Drill Bits | Application: | Rock Drilling |
| Advantage: | High Performance Rock Drill Bit | Packing: | Wooden Case |
| Usage: | Hole Drilling | Face: | Flat / Convex / Concave |
| Key Words: | Dth Bit | ||
| High Light: | COP32 Drill Button Bit,Borehole Drill Button Bit,105mm Drill Button Bit |
||

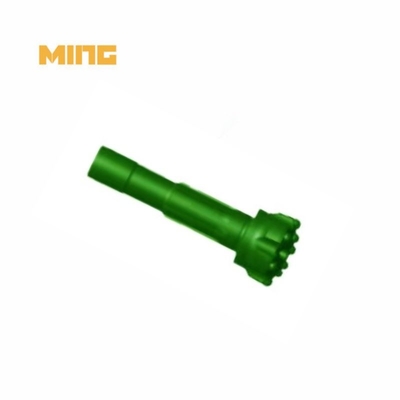

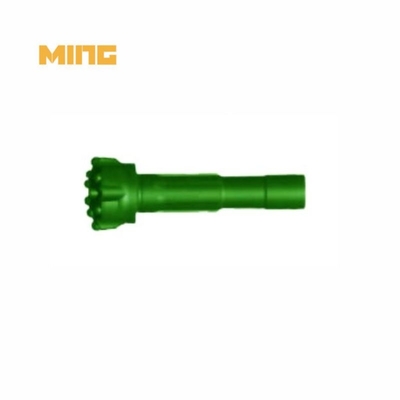

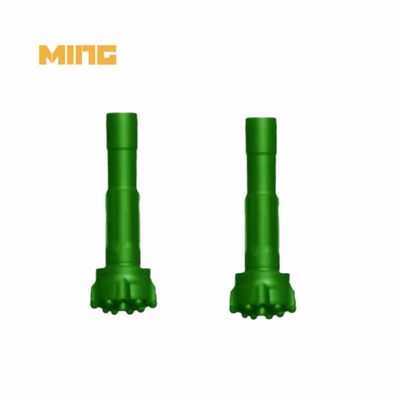

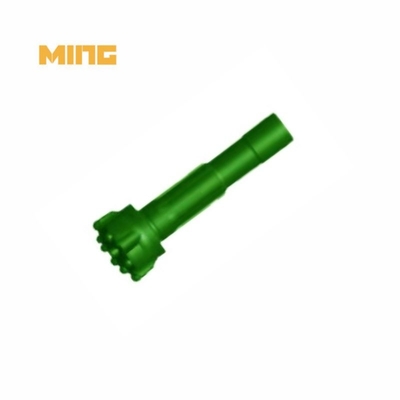

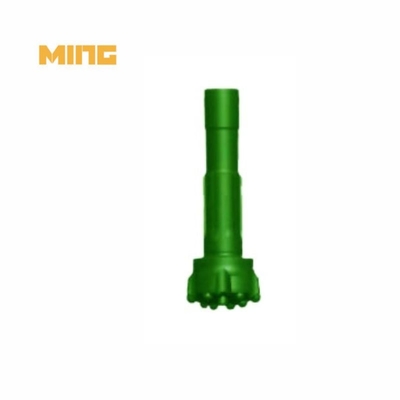

Product name: 3 Inch COP32 Shank 105mm Down The Hole DTH Hammer Drill Button Bit For Borehole Drilling
Product category: DTH drill tools
Matched hammer: Hammer COP32
Diameter: 105mm
KINGDRILLING high air pressure DTH button bit description:
DTH drill bits have come a long way since their inception, evolving to meet the demands of modern drilling applications. Initially crafted from simple steel, advancements in material science and manufacturing techniques have led to the development of button bits that are durable, efficient, and capable of withstanding the rigors of high-impact drilling.
DTH drill bits are precision-engineered using high-grade steel alloys and feature strategically placed buttons made of tungsten carbide. These buttons are designed to withstand extreme heat, abrasion, and impact, ensuring longevity and performance in challenging drilling environments.
DTH drill bits are designed to deliver high penetration rates, precise hole straightness, and optimal rock fragmentation. The tungsten carbide buttons on the bit’s face bear the brunt of the drilling forces, efficiently fracturing the rock formation and facilitating rapid advancement of the borehole.
The choice of DTH drill bit is crucial and depends on factors such as rock hardness, abrasiveness, and the desired drilling depth. By selecting the right bit design and button configuration, drillers can enhance drilling efficiency, reduce downtime, and ultimately lower operational costs.
In the realm of DTH drilling, the DTH drill bit stands as a testament to precision engineering and innovation. As industries continue to push the boundaries of exploration and excavation, the evolution of DTH bit technology remains pivotal in unlocking new frontiers and driving progress in the field of drilling. With a rich history of development and a promising future of advancements, DTH drill bits continue to play a vital role in shaping the landscape of modern drilling operations, ensuring efficiency, reliability, and success in diverse geological conditions.
KINGDRILLING 3 inch middle air pressure DTH drill bit technical parameters:
| 3 Inch High Air Pressure DTH bits | |||||
| Model | Bit Dia. (mm) | NO. X Button Dia. | NO. Air Holes (PCS) | Weight (KG) | |
| Gauge | Front | ||||
| MDCOP32-85 | 85 | 6*Φ13 | 4*Φ12 | 2 | 4.2 |
| MDCOP32-90 | 90 | 6*Φ14 | 4*Φ12 | 2 | 4.5 |
| MDCOP32-95 | 95 | 6*Φ14 | 4*Φ13 | 2 | 4.7 |
| MDCOP32-100 | 100 | 6*Φ14 | 5*Φ12 | 2 | 5.0 |
| MDCOP32-105 | 105 | 6*Φ14 | 5*Φ13 | 2 | 5.3 |
Order guide: Shank+Head diameter+Face design+Button shape
Kingdrilling DTH bit application:
1. Borehole drilling, quarry blasting, and mineral
2. drilling open holes for gas and oil, water wells, and dip hole wells
3. Drilling foundations and pilings
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from ourwebsite for a better understanding.
4. How to make sure the quality?
A: More than 40 Years engineer to make sure the quality, 100% inspection.
5. What is the general delivery time?
A: 15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
6. Methods of Payment
A: T/T (Telegraphic Transfer) or Western Union.
