Product Details:
|
| Processing Type: | Forging | Machine Type: | Downhole Tools |
|---|---|---|---|
| Use: | Quarry | Type: | Drill Bit |
| Material: | Tungsten Carbide & Steel | Color: | Blue,Golden,other Color Available,Blue And Yellow |
| Product Name: | Factory Hot Selling DTH Drill Bits | Application: | Rock Drilling |
| Advantage: | High Performance Rock Drill Bit | Packing: | Wooden Case |
| Usage: | Hole Drilling | Face: | Flat / Convex / Concave |
| Key Words: | Dth Bit | ||
| High Light: | Exploration DTH Drill Button Bits,100mm Exploration Drill Button Bits,3 Inch COP34 Shank |
||

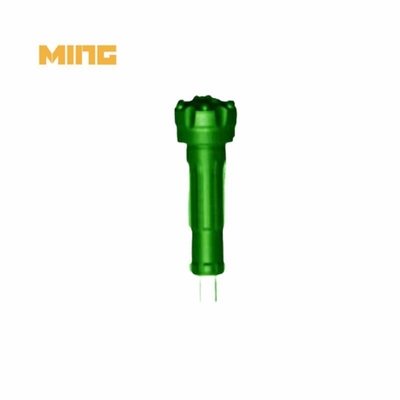

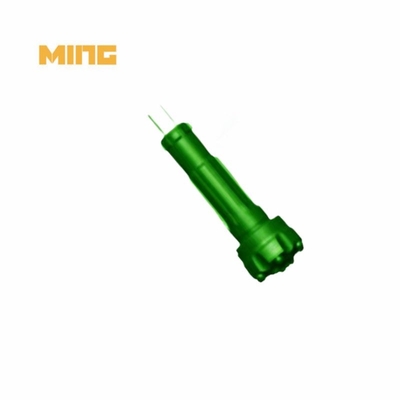

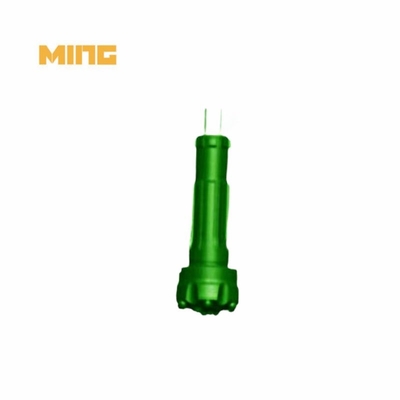

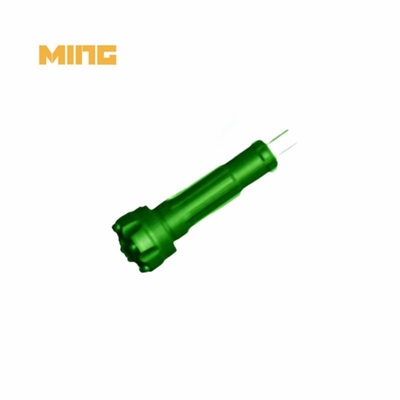

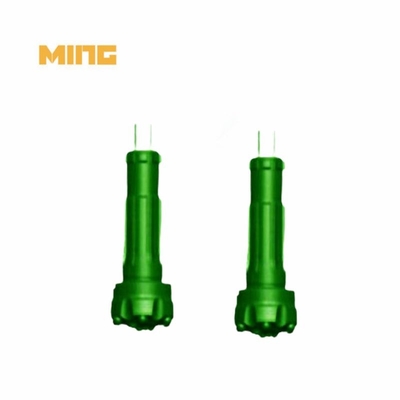

Product name: 3 Inch COP34 Shank 100mm Down The Hole DTH Drill Button Bits For Exploration Drilling
Product category: DTH drill tools
Diameter: 100 mm
KINGDRILLING high air pressure DTH button bit description:
In the realm of drilling operations, the choice of equipment plays a pivotal role in efficiency, speed, and success of the project. One crucial component that significantly influences drilling performance is the Down-The-Hole (DTH) bit. Among the various types available, high air pressure DTH bits stand out for their exceptional capabilities and effectiveness in challenging drilling conditions.
High air pressure DTH bits are engineered to withstand intense drilling environments by utilizing compressed air to enhance drilling speed and accuracy. These bits are designed with robust materials and advanced engineering to deliver superior performance in hard rock formations, making them a preferred choice in mineral, construction, and geothermal drilling projects.
One of the key features that set high air pressure DTH bits apart is their ability to maintain consistent penetration rates even in the toughest rock formations. By harnessing the power of compressed air, these bits create high-velocity airflow that efficiently clears cuttings from the borehole, minimizing drag and improving drilling efficiency. This results in faster drilling speeds and reduced downtime, ultimately increasing overall productivity on the job site.
KINGDRILLING 3 Inch high air pressure DTH button bit technical parameters:
| 3 Inch High Air Pressure DTH bits | |||||
| Model | Bit Dia. (mm) | NO. X Button Dia. | NO. Air Holes (PCS) | Weight(KG) | |
| Gauge | Front | ||||
| MDCOP34-85 | 85 | 6*Φ13 | 4*Φ12 | 2 | 4.2 |
| MDCOP34-90 | 90 | 6*Φ14 | 4*Φ12 | 2 | 4.5 |
| MDCOP34-95 | 95 | 6*Φ14 | 4*Φ13 | 2 | 4.8 |
| MDCOP34-100 | 100 | 6*Φ14 | 5*Φ12 | 2 | 5.0 |
| MDCOP34-105 | 105 | 6*Φ14 | 5*Φ13 | 2 | 5.5 |
Kingdrilling DTH bit advantage:
Efficiency: DTH drill bits are highly efficient, allowing for rapid drilling progress and increased productivity on job sites.
Precision: The bit’s ability to deliver precise blows enables operators to maintain drilling accuracy even in challenging geological conditions.
Versatility: DTH drill bits can be used in a wide range of applications, including mineral, quarrying, construction, and geothermal drilling.
Cost-Effectiveness: By reducing drilling time and optimizing operational efficiency, DTH drill bits help minimize overall project costs.
After Sales Service
1.Pre-sale service:
Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments .
1.Select equipment model;
2.Design and manufacture products according to client's special requirement ;
3.Train technical personnel for clients .
2.Services during the sale:
1.Pre-check and accept products ahead of delivery .
2. Help clients to draft solving plans.
3.After-sale services:
Provide considerate services to minimize clients' worries.
1.Complete After-sales service,professional engineers available to service machinery at home or oversea.
2. 24 hours technical support by e-mail.
3.Other essential technological service.
FAQ:
1. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
3.What is the general delivery time?
15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
4. Competitive price:
A: KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor!
5. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union.
6. What is a hammer bit?
Hammer drills are designed to quickly drill through brittle materials like concrete by combining the rotary action of the drill bit with a hammer action that moves the drill bit in and out of the hole along the bit's axis to provide a pounding action along with the drilling motion of the bit.
