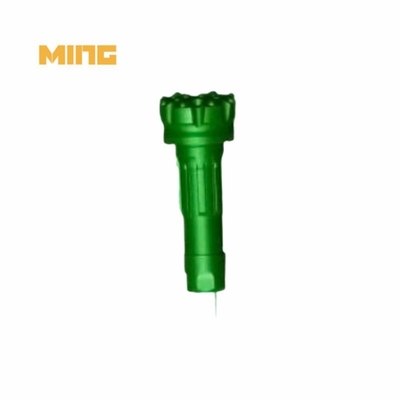

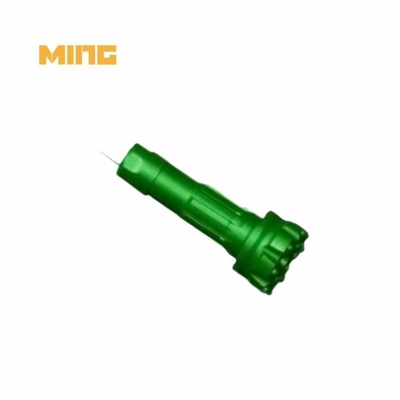

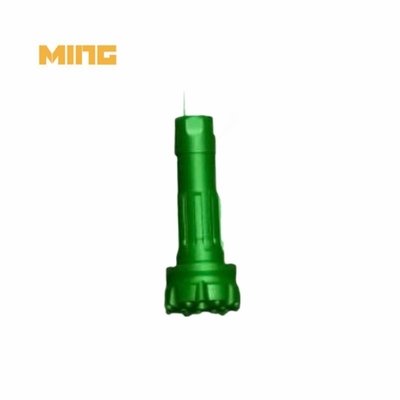

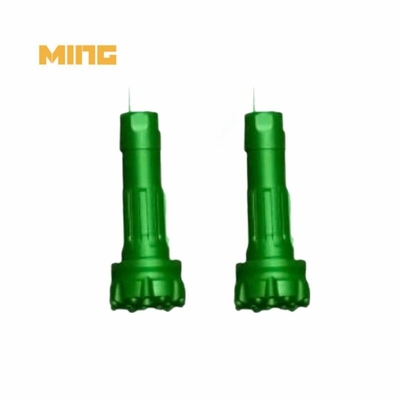

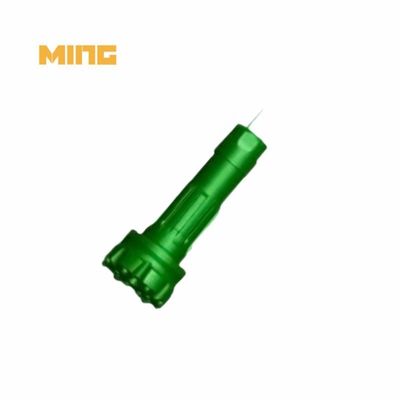

190mm 6 Inch DHD360R Shank Down The Hole High Air Pressure DTH Hammer Bits For Soft Rock Drill

Product name: 190mm 6 Inch DHD360R Shank Down The Hole High Air Pressure DTH Hammer Bits For Soft Rock Drill
Product category: DTH drill tools
Matched hammer: Hammer COP64
Diameter: 190 mm

KINGDRILLING high air pressure DTH button bit description:

Down-the-hole (DTH) drill bits are essential tools used in various industries for drilling holes in hard rock formations. These specialized drill bits are designed to operate with down-the-hole hammers, which provide powerful percussion to efficiently break through tough geological formations. DTH drill bits are known for their durability, precision, and effectiveness in drilling boreholes for mineral, construction, geothermal exploration, water well drilling, and other industrial applications.

KINGDRILLING 6 Inch high air pressure DTH button bit technical parameters:

Order guide: Shank+Head diameter+Face design+Button shape

Advantages of High Air Pressure Drill Bits:

1. Efficiency: DTH drill bits are highly efficient in penetrating hard rock formations due to their powerful impact force generated by the down-the-hole hammer. This efficiency results in faster drilling speeds and increased productivity on job sites.

2. Versatility: These drill bits are versatile and can be used in a wide range of applications, from surface drilling to deep-hole drilling in various geological conditions. They can handle different types of rock formations with ease.

3. Precision: DTH drill bits offer excellent precision in drilling, allowing operators to achieve accurate hole depths and angles. This precision is crucial in applications where specific drilling requirements must be met.

4. Durability: DTH drill bits are built to withstand the demanding conditions of drilling operations. They are constructed from high-quality materials that ensure longevity and resistance to wear and tear, resulting in extended operational life.

5. Cost-Effectiveness: Despite their initial investment cost, DTH drill bits are cost-effective in the long run due to their durability and efficiency. They require less maintenance and downtime, leading to overall lower operating costs.

6. Increased Productivity: The high drilling speeds and efficiency of DTH drill bits contribute to increased productivity on job sites, allowing projects to be completed faster and more effectively.

Kingdrilling DTH bit feature:

1. Design: DTH drill bits feature a robust design with tungsten carbide buttons or inserts that provide excellent cutting performance and wear resistance. The bit body is typically made of high-strength steel to withstand the rigors of drilling.

2. Bit Types: DTH drill bits come in various types, including button bits, ballistic bits, and specialized designs for specific applications. These bits are available in different sizes and configurations to suit different drilling requirements.

3. Connection Types: DTH drill bits are designed to be compatible with different down-the-hole hammers and drilling rigs. They feature standardized connections that ensure seamless integration with drilling equipment.

4. Flush-Face Design: Many DTH drill bits feature a flush-face design that allows for efficient removal of drilling cuttings and ensures uninterrupted drilling operations.

5. Multiple Carbide Configurations: DTH drill bits may have various carbide configurations, such as flat face, convex face, and concave face designs, to optimize performance in different rock formations.

6. Water Holes: Some DTH drill bits come with water holes for enhanced cooling and lubrication during drilling, which helps extend the life of the bit and improve drilling efficiency.

Applications of High Air Pressure Drill Bits:

1. Mineral: DTH drill bits are widely used in mineral operations for exploration, production drilling, and blasting. They are essential for creating blast holes and extracting minerals from underground deposits.

2. Construction: In the construction industry, DTH drill bits are used for various applications, including foundation drilling, piling, anchoring, and tunneling. These bits are crucial for creating holes in hard rock for structural support and foundation work.

3. Water Well Drilling: DTH drill bits play a vital role in water well drilling projects, where they are used to penetrate rock formations to access underground water sources. These bits are effective in drilling deep boreholes for domestic, agricultural, and industrial water supply.

4. Geothermal Exploration: DTH drill bits are instrumental in geothermal exploration and drilling projects. They are used to create wells for harnessing geothermal energy by tapping into hot rock formations beneath the Earth’s surface.

5. Oil and Gas Industry: DTH drill bits are utilized in the oil and gas industry for drilling exploration and production wells. These bits are essential for reaching hydrocarbon reservoirs located deep underground.

6. Civil Engineering: DTH drill bits find applications in civil engineering projects such as slope stabilization, dam construction, and road building. They are used to create boreholes for various infrastructure projects that require drilling in hard rock.

FAQ:
1. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.

3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

4. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.

5. What is rock drilling?
A: Rock drilling tools include those used for oil and natural gas exploration, mineral, construction, and all other industrial operations that need to excavate or drill through natural rocks, concrete, and masonry.

6. What is the weakest rock in the world?
A: Loess is formed from fine (small) grained, windblown sediment in glacier or desert areas. Loess is made of mostly silt but may also have some small amounts of sand and clay. The major mineral present is quartz with minor amounts of feldspar, calcite, dolomite, and clay.

7. What is DTH bit?
A: Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground.
