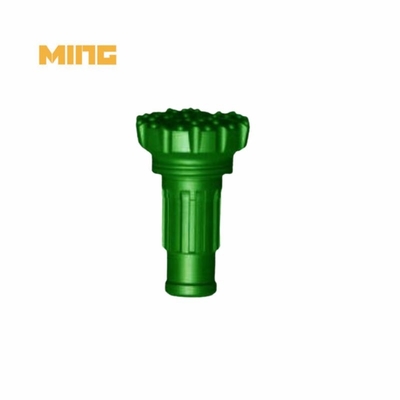

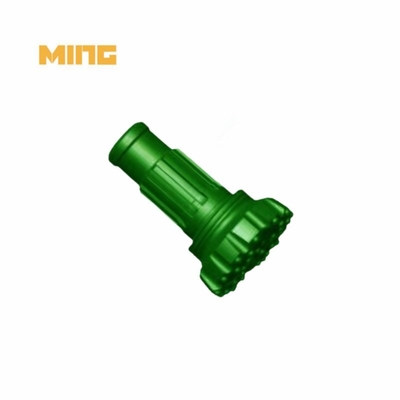

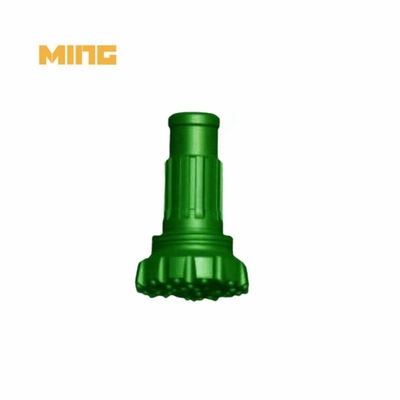

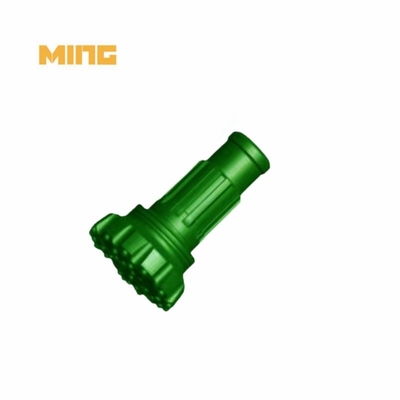

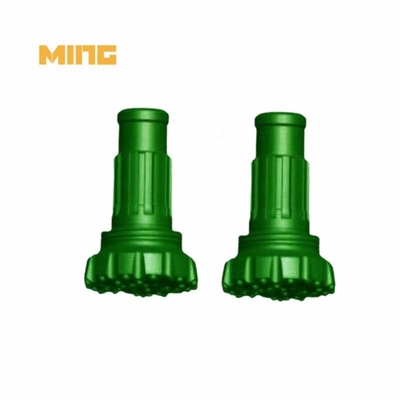

216mm 8 Inch HM8 Shank High Air Pressure DTH Drill Bits For Ground Hole Drilling Machine

Product name: 216mm 8 Inch HM8 Shank High Air Pressure DTH Drill Bits For Ground Hole Drilling Machine

Product category: DTH drill tools

Matched hammer: Hammer HM8

Diameter: 216 mm

KINGDRILLING high air pressure DTH button bit description:

Down-The-Hole (DTH) drilling is a widely used method in the mining, construction, and water well industries for drilling boreholes into the earth. High air pressure DTH bits play a crucial role in this drilling process, as they are responsible for crushing the rock formation and efficiently transferring the energy of the hammer to the rock surface. These bits are designed to withstand high air pressures and deliver superior performance in challenging drilling conditions. In this comprehensive guide, we will explore the advantages, functions, features, and applications of high air pressure DTH bits.

KINGDRILLING 8 Inch high air pressure DTH button bit technical parameters:

We can design and manufacture the different diameter,holes number,carbide button shape and face shape according to the customers' requirement.
Order Guide: Shank + Head Diameter + Face Design + Button Shape

Advantages of High Air Pressure DTH Bits:

1. Efficient Penetration Rate: High air pressure DTH bits are known for their ability to deliver a high penetration rate, allowing for faster and more efficient drilling operations. The design of these bits ensures optimal energy transfer from the hammer to the rock surface, resulting in quicker penetration.

2. Versatility: These bits are versatile and can be used in various types of rock formations, ranging from soft to extremely hard formations. Their adaptability makes them suitable for a wide range of drilling applications.

3. Increased Drilling Depth: High air pressure DTH bits are designed to withstand the high air pressures used in the drilling process, allowing them to achieve greater drilling depths compared to conventional bits. This makes them ideal for deep drilling projects.

4. Enhanced Durability: The materials used in high air pressure DTH bits are chosen for their durability and wear resistance. This ensures a longer lifespan for the bits, reducing the frequency of bit changes and downtime during drilling operations.

5. Improved Accuracy: These bits offer better control and accuracy during drilling, allowing for precise borehole placement. This is essential in applications where precision drilling is required, such as in mining and geotechnical exploration.

6. Cost-Effectiveness: While high air pressure DTH bits may have a higher initial cost compared to standard bits, their efficiency and durability result in cost savings over the long term. Reduced downtime and increased productivity contribute to overall cost-effectiveness.

Function of High Air Pressure DTH Bits:

High air pressure DTH bits are essential components of the DTH drilling system, working in conjunction with the hammer to break the rock formation. The primary functions of these bits include:

1. Rock Crushing: The design of high air pressure DTH bits features carbide buttons or inserts that crush the rock formation upon impact. The high air pressure from the hammer forces the bit into the rock, creating fractures and breaking the rock apart.

2. Energy Transfer: High air pressure DTH bits efficiently transfer the energy generated by the hammer to the rock surface. This energy transfer is crucial for achieving a high penetration rate and drilling efficiency.

3. Cutting and Flushing: As the bit rotates and impacts the rock, it creates cuttings that need to be flushed out of the borehole. High air pressure DTH bits are designed to facilitate the removal of cuttings, ensuring smooth drilling operations.

4. Stabilization: These bits also play a role in stabilizing the drilling process by maintaining the direction of the borehole and preventing deviation. Proper stabilization is essential for achieving straight and accurate drill holes.

5. Wear Resistance: High air pressure DTH bits are designed to withstand the abrasive nature of rock formations. The materials and hard-facing techniques used in their construction enhance wear resistance, ensuring prolonged performance in demanding drilling conditions.

Features of High Air Pressure DTH Bits:

1. Carbide Buttons: High air pressure DTH bits typically feature carbide buttons or inserts on the face of the bit. These carbide buttons are strategically placed to maximize rock-crushing efficiency and wear resistance. Different button designs are available to suit various rock formations.

2. Bit Body Design: The body of a high air pressure DTH bit is carefully engineered to withstand the high impact forces and air pressures encountered during drilling. The design may include features such as reinforced shoulders, optimized flute shapes, and special heat treatment for enhanced durability.

3. Thread Connection: High air pressure DTH bits are equipped with thread connections that allow for easy attachment to the drill string. The thread connection is designed to provide a secure and reliable link between the bit and the hammer, ensuring efficient energy transfer.

4. Multiple Face Designs: Some high air pressure DTH bits come with interchangeable face designs, allowing operators to adapt the bit to different rock formations or drilling conditions. Common face designs include flat face, concave face, and convex face, each offering specific advantages for drilling performance.

5. Internal Channeling: Efficient cuttings removal is essential for successful drilling operations. High air pressure DTH bits feature internal channeling that helps to flush out cuttings and maintain good hole cleaning, preventing blockages and improving drilling efficiency.

FAQ:

1. How about the common packing?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

2. Can I expect a quality products?

A: Yes. mature production technology ensuring the quality satisfy international request.

3. How to control quality?

A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

4. Fast delivery time:

A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.

5. What is rock drilling?

A: Rock drilling tools include those used for oil and natural gas exploration, mining, construction, and all other industrial operations that need to excavate or drill through natural rocks, concrete, and masonry.

6. What is the weakest rock in the world?

A: Loess is formed from fine (small) grained, windblown sediment in glacier or desert areas. Loess is made of mostly silt but may also have some small amounts of sand and clay. The major mineral present is quartz with minor amounts of feldspar, calcite, dolomite, and clay.

7. What is DTH bit?

A: Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground.
