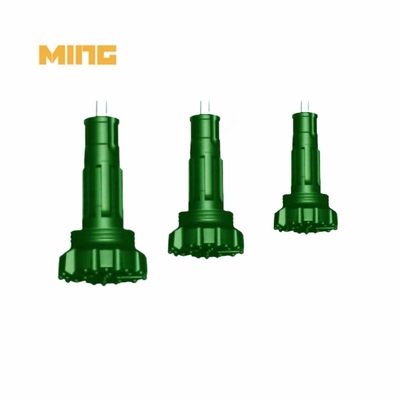

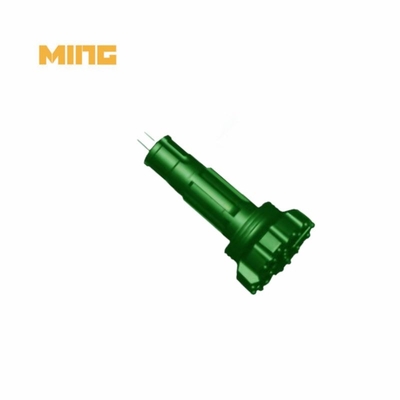

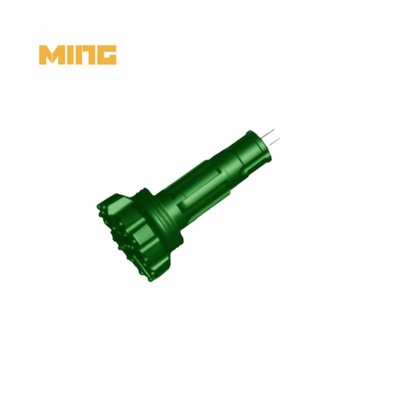

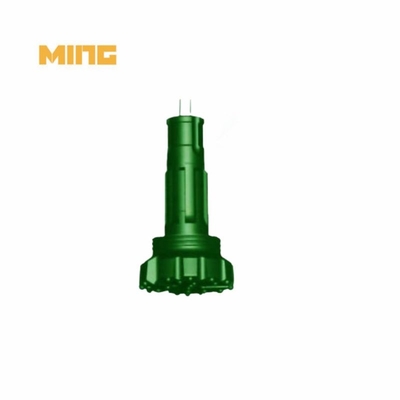

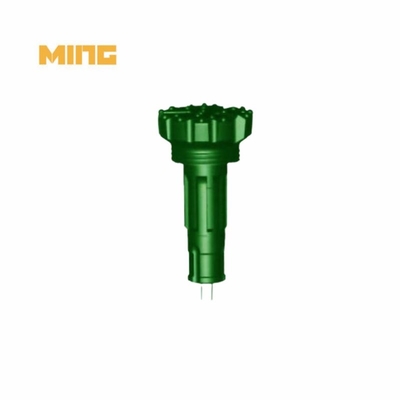

10 Inch 318mm SD10 Shank Down The Hole High Air Pressure DTH Drill Bits For Underground Drilling

Product name: 10 Inch 318mm SD10 Shank Down The Hole High Air Pressure DTH Drill Bits For Underground Drilling

Product category: DTH drill tools

Matched hammer: Hammer SD10

Diameter: 318 mm

KINGDRILLING high air pressure DTH button bit description:

Down-the-hole (DTH) drill bits are essential tools in the drilling industry, used for various applications such as mining, construction, geothermal drilling, and quarrying. These specialized drill bits are designed to operate in conjunction with a DTH hammer, creating a powerful and efficient drilling system. In this comprehensive guide, we will delve into the advantages, features, functions, and applications of DTH drill bits, shedding light on their importance and versatility in the world of drilling.

KINGDRILLING 10 Inch high air pressure DTH button bit technical parameters:

Order guide: Shank+Head diameter+Face design+Button shape

Advantages of DTH Drill Bits:

1. Efficiency: DTH drill bits are known for their high drilling efficiency, allowing for rapid penetration rates compared to other drilling methods. This efficiency translates to time and cost savings during drilling operations.

2. Versatility: These drill bits can be used in a wide range of geological conditions, making them suitable for diverse drilling applications. Whether drilling in hard rock formations or softer sediments, DTH drill bits deliver reliable performance.

3. Precision: DTH drill bits offer excellent accuracy and precision, enabling operators to maintain control over the drilling process. This precision is crucial for achieving desired borehole depths and angles.

4. Durability: Designed to withstand harsh drilling environments, DTH drill bits are constructed from high-quality materials that ensure longevity and resistance to wear and tear. Their robust build allows for extended use without compromising performance.

5. Cost-Effectiveness: While the initial investment in DTH drill bits may be higher than traditional drilling tools, their efficiency and durability result in long-term cost savings. Reduced downtime and increased productivity contribute to overall cost-effectiveness.

Features of DTH Drill Bits:

1. Carbide Inserts: DTH drill bits are equipped with high-quality carbide inserts that provide superior hardness and wear resistance. These inserts are strategically positioned on the bit to enhance cutting performance and longevity.

2. Bit Design: The design of DTH drill bits includes various features such as different face profiles, button configurations, and flushing holes. These design elements are optimized for specific drilling conditions, ensuring optimal performance.

3. Bit Body: The body of a DTH drill bit is typically made from tough steel alloys that can withstand high levels of stress and impact. The robust construction of the bit body enhances durability and minimizes the risk of failure during operation.

4. Internal Geometry: The internal geometry of DTH drill bits is carefully engineered to promote efficient chip evacuation and cooling during drilling. This feature is crucial for maintaining drilling performance and preventing overheating.

5. Thread Connection: DTH drill bits are equipped with thread connections that allow for quick and secure attachment to the drill string. The thread connection ensures proper alignment and transfer of energy from the DTH hammer to the bit.

Function of DTH Drill Bits:

DTH drill bits function by utilizing compressed air or other drilling fluids to power the drilling process. When coupled with a DTH hammer, the drill bit is driven into the rock formation, creating boreholes of various diameters and depths. The following steps outline the primary functions of DTH drill bits:

1. Energy Transfer: The DTH hammer delivers high-impact energy to the drill bit, which is transmitted through the bit to the rock formation. This energy transfer mechanism allows the bit to penetrate the rock surface efficiently.

2. Rock Penetration: As the drill bit rotates and strikes the rock formation, the cutting elements (such as carbide inserts) on the bit's face break down the rock into small particles. This process continues as the bit advances deeper into the formation.

3. Chip Evacuation: The internal design of the DTH drill bit facilitates the removal of drilling chips from the borehole. Proper chip evacuation is essential to prevent bit jamming and maintain drilling efficiency.

4. Cooling and Lubrication: During drilling, the DTH drill bit generates heat due to friction with the rock. Effective cooling and lubrication mechanisms, such as flushing holes and drilling fluids, help dissipate heat and reduce wear on the bit.

5. Borehole Quality: The ultimate function of a DTH drill bit is to produce high-quality boreholes with precise dimensions and smooth walls. Achieving optimal borehole quality is crucial for various applications, including blasting, sampling, and installing casing.

Applications of DTH Drill Bits:

DTH drill bits find extensive use in a wide range of drilling applications across industries. Some common applications include:

1. Mining: DTH drill bits are widely used in mining operations for exploration drilling, production drilling, and blasting. These bits are capable of drilling through hard rock formations commonly found in mining sites.

2. Construction: In the construction industry, DTH drill bits are employed for foundation drilling, piling, and ground stabilization. The efficiency and precision of these bits make them ideal for various construction projects.

3. Quarrying: DTH drill bits play a crucial role in quarrying operations, where large quantities of rock need to be extracted efficiently.

FAQ:

1. How about the common packing?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

2. Can I expect a quality products?

A: Yes. mature production technology ensuring the quality satisfy international request.

3. How to control quality?

A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

4. Fast delivery time:

A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.

5. What is rock drilling?

A: Rock drilling tools include those used for oil and natural gas exploration, mining, construction, and all other industrial operations that need to excavate or drill through natural rocks, concrete, and masonry.

6. What is the weakest rock in the world?

A: Loess is formed from fine (small) grained, windblown sediment in glacier or desert areas. Loess is made of mostly silt but may also have some small amounts of sand and clay. The major mineral present is quartz with minor amounts of feldspar, calcite, dolomite, and clay.

7. What is DTH bit?

A: Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground.
