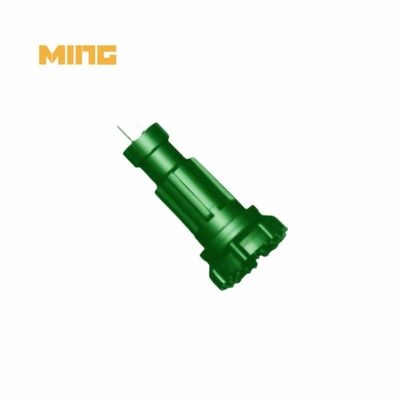

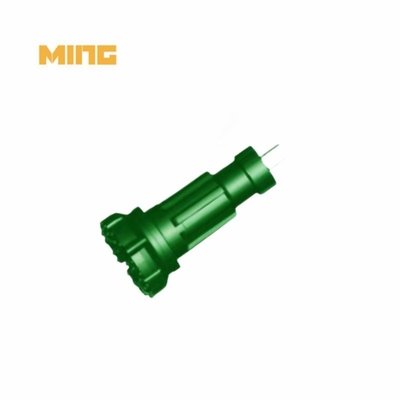

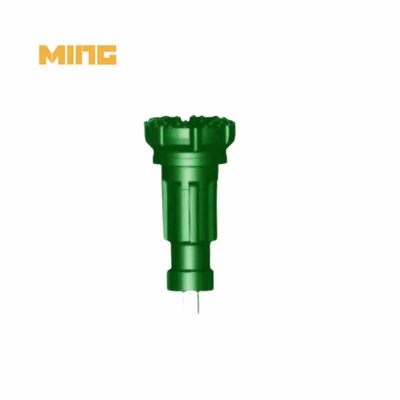

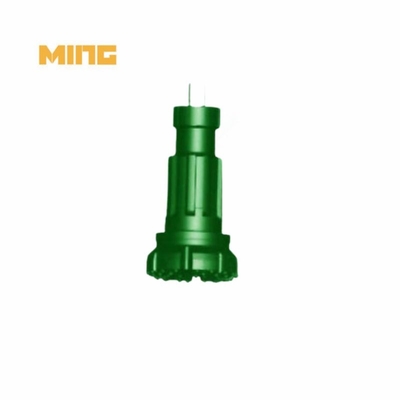

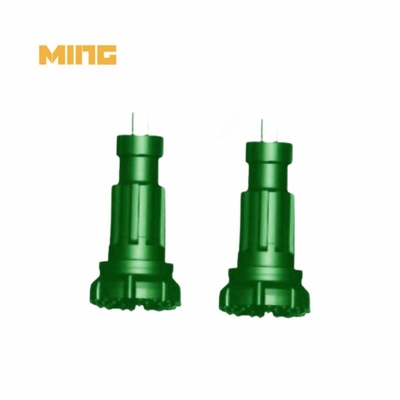

381mm 12 Inch NUMA120 Shank High Air Pressure DTH Drill Button Bits For Civil Engineering

Product name: 381mm 12 Inch NUMA120 Shank High Air Pressure DTH Drill Button Bits For Civil Engineering
Product category: DTH drill tools
Matched hammer: Hammer NUMA120
Diameter: 381mm

KINGDRILLING high air pressure DTH button bit description:

High air pressure drill bits are essential tools in various industries ranging from mining and construction to oil and gas exploration. These specialized drill bits are designed to withstand the rigors of high-pressure drilling environments, where conventional drill bits may fail to perform effectively. In this comprehensive guide, we will delve into the advantages, features, functions, and applications of high air pressure drill bits, shedding light on their importance in modern drilling operations.

KINGDRILLING 12 Inch high air pressure DTH button bit technical parameters:

Advantages of High Air Pressure Drill Bits:

1. Enhanced Durability: High air pressure drill bits are engineered to withstand the intense pressures encountered during drilling operations. The materials used in their construction are highly durable and resistant to wear, ensuring a longer lifespan compared to conventional drill bits. This durability translates to cost savings for operators, as they require less frequent replacement.

2. Improved Penetration Rates: One of the key advantages of high air pressure drill bits is their ability to achieve higher penetration rates in challenging rock formations. The design of these drill bits, coupled with the high-pressure air supply, allows them to cut through hard rock with greater efficiency, reducing drilling time and increasing overall productivity.

3. Superior Performance in Hard Formations: High air pressure drill bits excel in drilling through hard formations such as granite, basalt, and shale. Their robust construction and specialized cutting structures enable them to maintain optimal performance even in the most demanding geological conditions, providing operators with confidence in their drilling operations.

4. Reduced Downtime: By utilizing high air pressure drill bits, operators can minimize downtime associated with bit changes and maintenance. These drill bits are designed to deliver consistent performance over extended periods, reducing the need for frequent interruptions to the drilling process.

5. Versatility: High air pressure drill bits are available in a wide range of sizes and configurations to suit different drilling requirements. Whether drilling shallow wells or exploring deep reservoirs, operators can find a suitable high air pressure drill bit to meet their specific needs, enhancing operational flexibility.

Features of High Air Pressure Drill Bits:

1. Tungsten Carbide Inserts: High air pressure drill bits typically feature tungsten carbide inserts on the cutting surfaces. Tungsten carbide is known for its exceptional hardness and wear resistance, making it ideal for withstanding the abrasive forces encountered during drilling.

2. PDC (Polycrystalline Diamond Compact) Technology: Some high air pressure drill bits incorporate PDC technology, where layers of synthetic diamond are bonded to the bit surface. PDC bits offer superior performance in hard formations and are known for their high drilling efficiency.

3. Advanced Cutter Configurations: The cutter configuration of high air pressure drill bits is optimized for maximum cutting efficiency and durability. Various cutting structures, such as chisel, conical, and shear, are employed to enhance the drilling process in different rock types.

4. High-Pressure Air Channels: To ensure effective cooling and removal of cuttings during drilling, high air pressure drill bits are equipped with specialized air channels that deliver a continuous stream of pressurized air to the cutting elements. This feature helps maintain the temperature of the drill bit and prevents clogging.

5. Reinforced Bit Body: The bit body of high air pressure drill bits is reinforced to withstand the extreme forces exerted during drilling. High-quality steel alloys and heat treatment processes are employed to enhance the strength and durability of the bit body.

Function of High Air Pressure Drill Bits:

High air pressure drill bits are designed to effectively cut through rock formations by utilizing the energy from compressed air to create rotary motion. The high-pressure air supply is directed through the drill string to the drill bit, where it powers the cutting elements to penetrate the rock surface. As the drill bit rotates, the cutting structures engage with the formation, shearing and crushing the rock to create a borehole.

The tungsten carbide inserts or PDC cutters on the drill bit's surface generate the cutting action, while the high-pressure air streams through the bit and up the annular space to lift the drill cuttings out of the borehole. The efficient removal of cuttings is crucial to maintaining drilling performance and preventing bit balling.

In addition to cutting the rock, high air pressure drill bits also play a vital role in stabilizing the drill string and transmitting torque from the surface to the bit. The design of these drill bits ensures optimal energy transfer and torque transmission, enabling smooth and efficient drilling operations.

Applications of High Air Pressure Drill Bits:

1. Oil and Gas Exploration: High air pressure drill bits are widely used in oil and gas exploration activities, where they are employed to drill through various rock formations to access hydrocarbon reservoirs. These drill bits are capable of penetrating challenging formations encountered in deepwater and onshore drilling projects, making them essential tools for the oil and gas industry.

2. Mining Operations: In the mining sector, high air pressure drill bits are utilized for exploration drilling, ore extraction, and tunneling activities. These drill bits are instrumental in accessing mineral deposits buried deep underground and are essential for the success of mining operations worldwide.

FAQ:

1. How about ordinary packaging?
A: If there are no special packaging requirements, we will use it as our normal packaging. Put the small cartons first, then the large cartons to ensure the integrity of the goods.
2. Can I expect quality products?
Answer: Yes. Mature production technology ensures that the quality meets international requirements.
3. How to control the quality?
A: We have our own experienced QC team who will strictly inspect and test each order before shipment.
4. Fast delivery time:
A: Usually production takes 25 days. If we have your requested size in stock, it only takes 3 or 5 days.
5. What are DTH bits?
Down-the-hole (DTH) hammers are used with down-the-hole hammers to drill holes in a variety of rock types. Used in conjunction with a down-the-hole hammer, the hammer drill bit is designed with a splined drive to rotate the drill bit underground.
6. What is a down-the-hole hammer?
Down-the-hole drilling (DTH) essentially involves a drill hammer at the base of the drill string. It relies on three elements to drill: bit load (weight), rotation, and air. These active elements combine to effectively break up rock.
7. How does down-the-hole drilling work?
A down-the-hole drill rig, commonly referred to as a DTH by most professionals, is basically a jackhammer that screws onto the bottom of the drill string. The rapid hammering action breaks the hard rock into small chips and dust, which are expelled through the fluid (air, water or drilling mud).

8. What is a hammer bit?
Hammer drills are designed to quickly drill through brittle materials like concrete by combining the rotary action of the drill bit with a hammer action that moves the drill bit in and out of the hole along the bit's axis to provide a pounding action along with the drilling motion of the bit.
