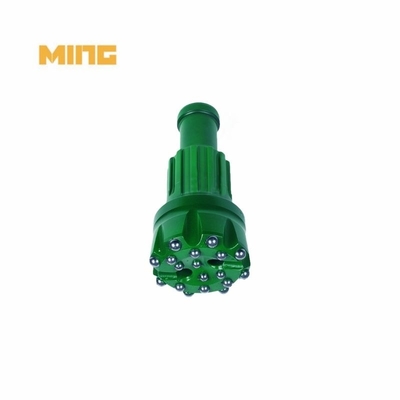

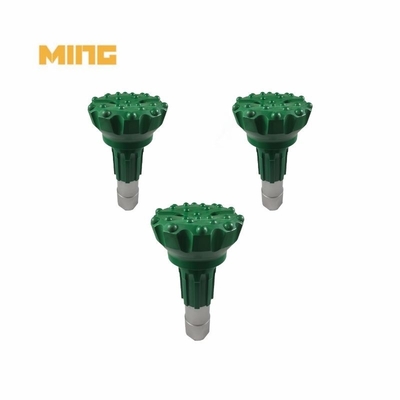

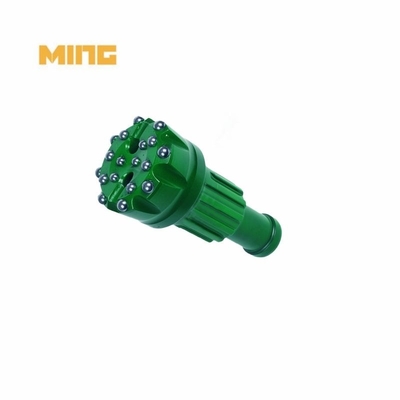

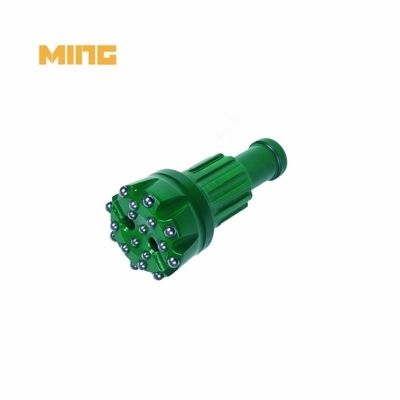

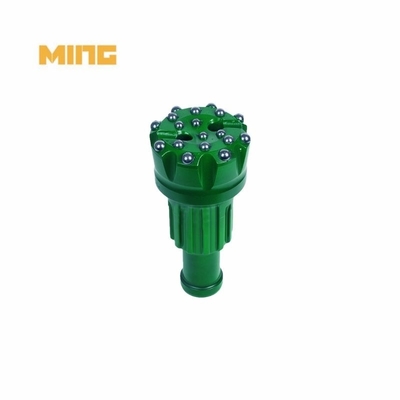

203mm MISSION Shank 8 Inch Down The Hole High Air Pressure DTH Button Bits For Hard Rock Formation

Product name:  203mm MISSION Shank 8 Inch Down The Hole High Air Pressure DTH Button Bits For Hard Rock Formation

Product category: DTH drill tools

Matched hammer: Hammer HM8

Diameter: 203 mm

KINGDRILLING high air pressure DTH button bit description:

Down The Hole (DTH) drilling is a widely used method for drilling boreholes in hard rock formations. DTH drill bits play a crucial role in this process, enabling efficient and effective penetration into the earth's crust. These specialized drill bits have revolutionized the mining, construction, and exploration industries by providing a reliable solution for challenging drilling environments. In this comprehensive guide, we will delve into the world of DTH drill bits, exploring their advantages, features, functions, and applications in various industries.

KINGDRILLING 8 Inch high air pressure DTH button bit technical parameters:

We can design and manufacture the different diameter,holes number,carbide button shape and face shape according to the customers' requirement.
Order Guide: Shank + Head Diameter + Face Design + Button Shape

Advantages of DTH Drill Bits:

1. Efficiency: DTH drill bits are renowned for their high drilling efficiency, enabling rapid penetration rates in hard rock formations. This efficiency translates to reduced drilling time and increased productivity on worksites.

2. Versatility: DTH drill bits are versatile tools that can be used in a wide range of drilling applications, from mining and quarrying to construction and geotechnical exploration. Their adaptability makes them a preferred choice for various industries.

3. Precision: These drill bits offer exceptional precision in drilling operations, allowing for accurate borehole creation with minimal deviation. This precision is essential for maintaining the integrity of the borehole and achieving desired drilling depths.

4. Durability: DTH drill bits are engineered to withstand the rigors of demanding drilling conditions, including high temperatures, abrasive materials, and intense pressure. Their durability ensures long-lasting performance and reduces the need for frequent replacements.

5. Cost-Effectiveness: While DTH drill bits may have a higher upfront cost compared to conventional drilling tools, their long lifespan and efficient performance result in cost savings over time. Their ability to handle challenging drilling environments also reduces maintenance and downtime costs.

6. Safety: DTH drill bits prioritize safety in drilling operations by providing stable and reliable performance. The controlled drilling process minimizes the risk of accidents and enhances overall worksite safety.

Features of DTH Drill Bits:

1. Tungsten Carbide Inserts: DTH drill bits are equipped with high-quality tungsten carbide inserts that enhance their cutting capabilities and durability. These inserts are strategically positioned on the bit to maximize penetration and extend the bit's lifespan.

2. Bit Design: DTH drill bits come in various designs, including convex, flat face, and concave shapes, each tailored to specific drilling requirements. The bit design influences factors such as impact energy transfer, hole straightness, and cutting efficiency.

3. Bit Body Material: The body of DTH drill bits is typically made of robust materials like alloy steel or high-grade steel, ensuring strength and resilience during drilling operations. The choice of material depends on the drilling conditions and the level of abrasion resistance required.

4. Flush-Face Design: Some DTH drill bits feature a flush-face design that facilitates efficient removal of cuttings and debris from the borehole. This design minimizes the risk of bit plugging and ensures continuous drilling progress.

5. Multiple Carbide Configurations: DTH drill bits offer various carbide configurations, such as ballistic, semi-ballistic, and parabolic shapes, to suit different rock types and drilling conditions. These configurations optimize cutting performance and enhance drilling efficiency.

6. Internal Fluid Circulation: Many DTH drill bits are designed with internal channels for fluid circulation, allowing for effective cooling and lubrication during drilling. This feature helps prevent overheating and prolongs the lifespan of the bit.

Function of DTH Drill Bits:

DTH drill bits are primarily designed to create boreholes in hard rock formations using percussive drilling techniques. The function of DTH drill bits can be summarized as follows:

1. Impact Energy Transfer: When attached to a DTH hammer, the drill bit receives impact energy from the hammer's piston, which is transmitted to the rock formation. This impact energy fractures the rock, allowing the bit to penetrate further into the earth.

2. Cutting and Crushing: The tungsten carbide inserts on the drill bit's face perform cutting and crushing actions on the rock surface, breaking it into smaller fragments. This process is crucial for advancing the borehole and extracting core samples for analysis.

3. Hole Straightness: DTH drill bits are designed to maintain hole straightness during drilling operations, ensuring the borehole follows the intended path accurately. This feature is essential for precision drilling and minimizing deviations in the borehole trajectory.

4. Debris Removal: As the drill bit rotates and penetrates the rock formation, it generates cuttings and debris that need to be efficiently removed from the borehole. DTH drill bits with a flush-face design facilitate the evacuation of debris, preventing bit plugging and maintaining drilling efficiency.

5. Cooling and Lubrication: Internal fluid circulation channels within DTH drill bits allow for the flow of cooling and lubricating fluids during drilling.

FAQ:

1. How about the common packing?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

2. Can I expect a quality products?

A: Yes. mature production technology ensuring the quality satisfy international request.

3. How to control quality?

A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

4. Fast delivery time:

A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.

5. What is rock drilling?

A: Rock drilling tools include those used for oil and natural gas exploration, mining, construction, and all other industrial operations that need to excavate or drill through natural rocks, concrete, and masonry.

6. What is the weakest rock in the world?

A: Loess is formed from fine (small) grained, windblown sediment in glacier or desert areas. Loess is made of mostly silt but may also have some small amounts of sand and clay. The major mineral present is quartz with minor amounts of feldspar, calcite, dolomite, and clay.

7. What is DTH bit?

A: Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground.
