Product Details:
|
| Material: | High Manganese Steel,Carbide | Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing Drilling System, Overburden Casing Drilling System | Machine Type: | Drilling Tool,Drilling Equipment |
| Processing Type: | Forging | Product Name: | Overburden Casing Drilling Bits,Concentric Casing System |
| Color: | Gold,Request,Yellow,Red | Application: | Construction,water Well Drilling |
| Usage: | Mining&Construction&Water Well Drilling | Advantage: | High-efficiency,Widely Used Hard Rocks And Have Good Penetration |
| Item: | Drilling Hammer Bit, Overburden Casing Drilling System | Hammer Type: | Overburden Drilling System |
| Advantages: | High Performance,High Quality And Factory Prices | HS: | 82071990 |
| High Light: | 293mm Concentric Casing Drilling System, MRS Overburden Casing Drilling System | ||

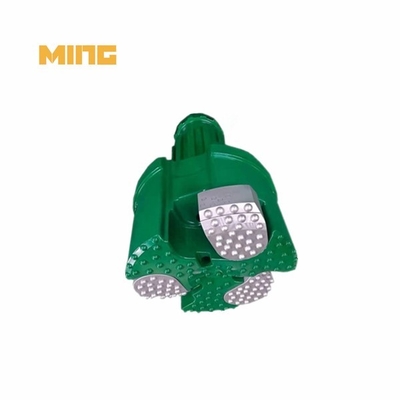

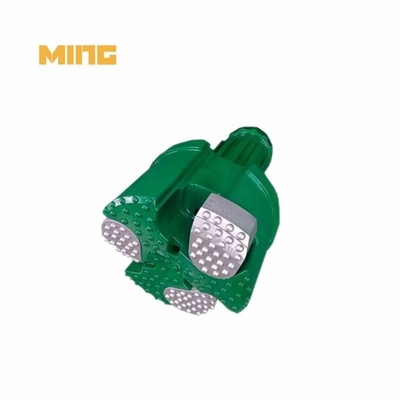

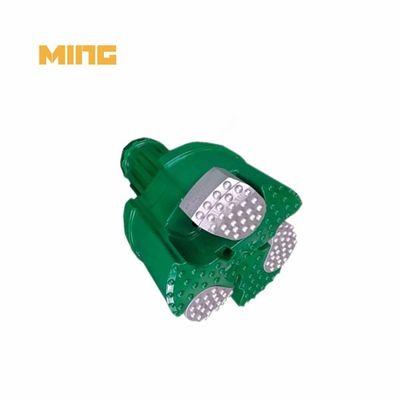

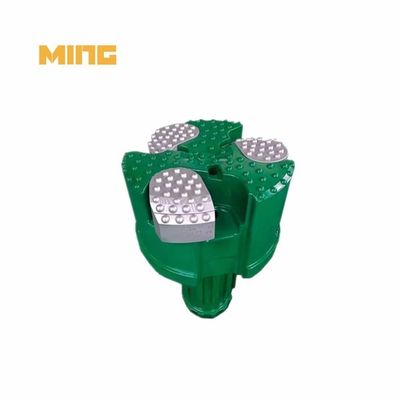

Product name: 293mm MRS240 Eccentric Casing Drilling Under Reamer System Bit For Mining Rock Drilling
Casing pipe OD: 240mm
Kingdrilling drilling solutions are designed to deliver industry-leading returns in sample quality and drilling productivity in the exploration for gold, silver, platinum, copper, nickel, iron ore, and other base metals.
When it comes to performance, the MRS Bit truly shines. Its high drilling speed ensures swift and precise drilling, saving you valuable time and effort. Whether you're working on construction projects, mining ventures, or any other drilling application, this drill bit is built to deliver outstanding results consistently.
Invest in the MRS Bit and experience the power of structural optimization, excellence in structural strength, and ease of operation. With its superior performance and unrivaled drilling speed, this MRS Bit is a game-changer in the industry. Trust in its reliability and achieve your drilling goals with confidence.
Product components:

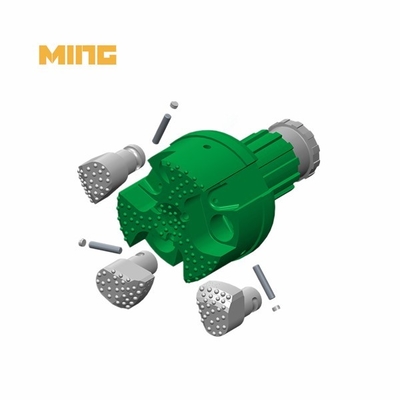

1. Pilot bit+3PCS wiggle wings+casing shoe
2. Pilot bit+4PCS wiggle wings+casing shoe
Production details:
| Model | Hole dia. (mm) | Weight (KG) | Closed dia (mm) | Pilot dia (mm) | Total length (mm) | Case Dia (OD*ID) | Spline |
| MK-MRS190 | 238 | 80 | 190 | 203 | 550 | 219*206 | DHD360,QL6,SD6 |
| MK-MRS215 | 276 | 100 | 215 | 236 | 590 | 254*240 | DHD380,QL8,SD8 |
| MK-MRS235 | 293 | 110 | 236 | 251 | 590 | 273*254 | DHD380,QL8,SD8 |
| MK-MRS240 | 293 | 115 | 241 | 256 | 590 | 273*260 | DHD380,QL8,SD8 |
| MK-MRS280 | 345 | 180 | 280 | 300 | 740 | 323*302 | SD10 |
| MK-MRS315 | 373 | 240 | 315 | 336 | 1050 | 356*337 | N120 |
| MK-MRS365 | 432 | 350 | 365 | 381 | 1100 | 406*387 | N120,N125 |
| MK-MRS410 | 478 | 460 | 412 | 430 | 1100 | 457*435 | N125 |
| MK-MRS460 | 530 | 585 | 460 | 475 | 1100 | 508*483 | N125,SD18 |
| MK-MRS510 | 580 | 860 | 509 | 527 | 1180 | 559*533 | N180,SD18 |
| MK-MRS560 | 635 | 910 | 560 | 581 | 1180 | 610*584 | N180,SD18 |
| MK-MRS610 | 695 | 1100 | 600 | 630 | 1200 | 660*632 | N240 |
| MK-MRS660 | 735 | 1200 | 656 | 681 | 1207 | 711*685 | N240 |
| MK-MRS710 | 785 | 1480 | 710 | 730 | 1207 | 762*736 | N240 |
| MK-MRS745 | 838 | 1650 | 745 | 776 | 1207 | 813*780 | N240 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Product advantage:
1.Enhance penetration and perpendicularity
2.Reduce torque requirements
3.Deal with straight,oblique hole and other angle holes
4.Lowest effect with environment
RFQ:
1. What is drill casing in mining?
In underground mining, steel casing or steel pipe is used to line holes that have been bored or drilled for rising mains water, utility lines and paste fill, protecting the contents from damage and loss into open voids or broken ground.
2. How much PSI do I need for air tools?
Between 70 and 90 PSI
Most air tools require between 70 and 90 PSI. Any light-to-medium-duty air compressor can easily handle 90 PSI, but you always want the compressor to supply more flow than needed. Pro Tip: Always respect a PSI rating. If you don't supply enough air volume, the tool won't operate correctly.
3. Why is percussion drilling used?
Site examination using cable percussion drilling is a tried and true technique. The method of drilling makes it possible to insert casing inside the borehole to keep loose dirt from collapsing into it, enabling the borehole to be advanced to significant depths while still making good progress.
Product manufacturing:
