Product Details:
|
| Material: | High Manganese Steel,Carbide | Use: | Well Drilling,Mining & Water Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Drilling Tool,Drilling Equipment |
| Processing Type: | Forging,Machining Process | Product Name: | Concentric Casing System |
| Color: | Gold,Request,Yellow,Red | Application: | Water Well Drilling |
| Usage: | Mining&Construction&Water Well Drilling | Advantage: | High Performance,Widely Used Hard Rocks And Have Good Penetration |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | ODEX System (eccentric Overburden System) |
| Item: | Drilling Hammer Bit Eccentric Overburden Systems | Hammer Type: | Overburden Drilling System |
| Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat | Advantages: | High Strength,High Performance,High Quality |
| High Light: | 188mm Overburden Casing Drilling System, Mring Symmetric Casing Drilling System Bit | ||
Product name: 188mm Mring Overburden Symmetric Casing Drilling System Hole Opener Drill Bit For Well Drilling
Product model: Overburden Symmetric Casing Drilling System
Matched hammer: Hammer DHD350

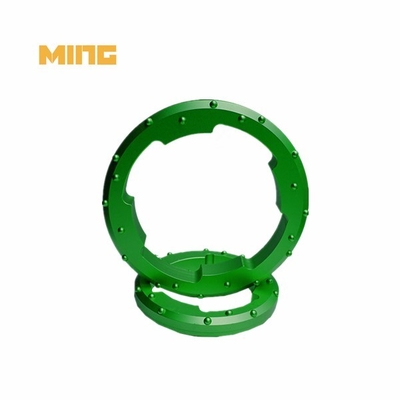

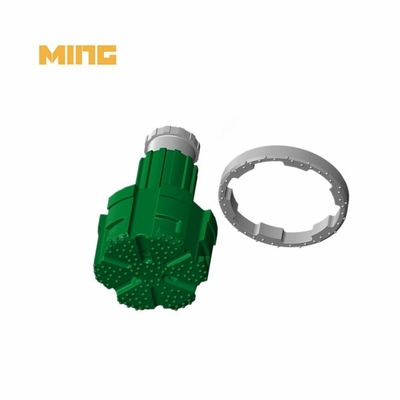

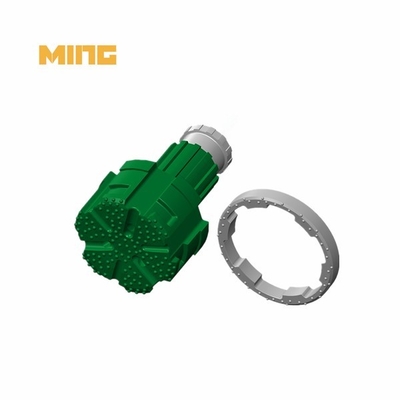

Kingdrilling MRING overburden drilling systems are designed to use ring bit which is not connected to casing shoe.

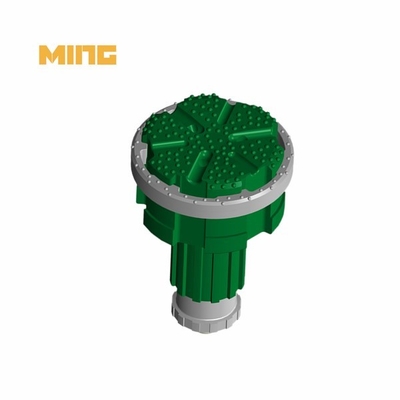

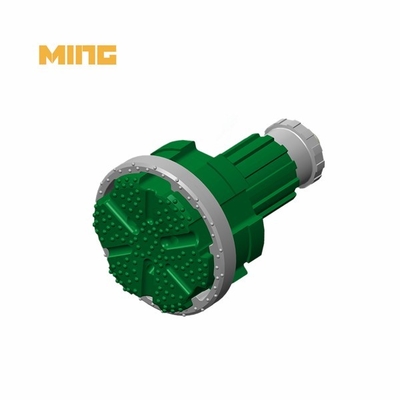

Special profile DTH Bit passes through enough large inner diameter of ring bit.
MRING overburden drilling system bit is a professional-grade tool designed to optimize structural strength and offer unparalleled ease of operation. With its superior performance, high drilling speed, and reliable stability, it is the go-to choice for professionals seeking exceptional results. Upgrade your drilling experience and reach new levels of efficiency with the MRING Bit.
Kingdrilling MRING Casing bit technical parameters:
| Model | External Dia.(mm) | Casing Dia.(OD*ID) | Spline |
| MK-MRING90 | 125 | 114*102 | MACH33, DHD3.5 |
| MK-MRING115 | 155 | 139*127 | DHD340, SD4, QL4 |
| MK-MRING140 | 188 | 168*153 | DHD350, SD5, QL5 |
| MK-MRING165 | 215 | 194*181 | DHD360, SD6, QL6 |
| MK-MRING190 | 238 | 219*206 | DHD360, SD6, QL6 |
| MK-MRING215 | 276 | 254*240 | DHD380, SD8, QL8 |
| MK-MRING235 | 293 | 273*254 | DHD380, SD8, QL8 |
| MK-MRING240 | 293 | 273*260 | DHD380, SD8, QL8 |
| MK-MRING280 | 345 | 323*303 | SD10 |
| MK-MRING315 | 375 | 355*335 | SD10 |
| MK-MRING365 | 432 | 406*387 | N120, N125, SD12 |
| MK-MRING460 | 530 | 508*483 | N125, N180 |
| MK-MRING510 | 580 | 559*533 | N180 |
| MK-MRING560 | 635 | 610*584 | N180 |
| MK-MRING610 | 695 | 660*632 | N240 |
| MK-MRING660 | 735 | 711*685 | N240 |
| MK-MRING710 | 785 | 762*736 | N240 |
| MK-MRING745 | 838 | 813*780 | N240 |
| MK-MRING810 | 886 | 864*838 | N240, N240S |
| MK-MRING860 | 935 | 914*884 | N240S |
| MK-MRING910 | 980 | 965*935 | N240S |
| MK-MRING960 | 1038 | 1016*986 | N240S, M330 |
| MK-MRING1010 | 1090 | 1067*1041 | M330 |
How to order:
Casing Tube OD & ID + Ring Bit Diameter + Hammer Shank + Maximal Normal Bit Diameter +
Casings and Casing Shoes Installation Method (if by threads, threads standard must be offered)
Other size of MRING system is available upon customer's request
FAQ:
1. What is total overburden pressure?
Overburden pressure is a geology term that denotes the pressure caused by the weight of the overlying layers of material at a specific depth under the earth's surface. Overburden pressure is also called lithostatic pressure, or vertical stress.
2. What is overburden removal in mining?
In mining, overburden (also called waste or spoil) is the material that lies above an area that lends itself to economical exploitation, such as the rock, soil, and ecosystem that lies above a coal seam or ore body.
3. Why is percussion drilling used?
Cable percussion drilling is a tried and tested method of site investigation. The drilling technique allows the installation of casing inside the borehole to prevent loose soils collapsing into the hole, allowing the borehole to be advanced to considerable depths while maintaining good progress.
