Product Details:
|
| Material: | Steel, Alloy | Procession: | Forging |
|---|---|---|---|
| Usage: | Drilling | Matched: | Drilling Rig |
| Color: | Green, Red, Blue, Black | Application: | Construction,water Well Drilling |
| Type: | Concentric Casing System | ||
| High Light: | Casing Drilling System Odex Bit,MNX Casing Drilling System |
||

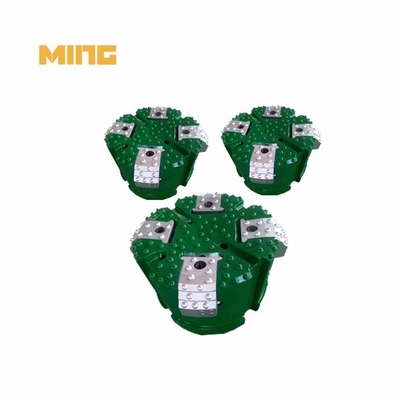

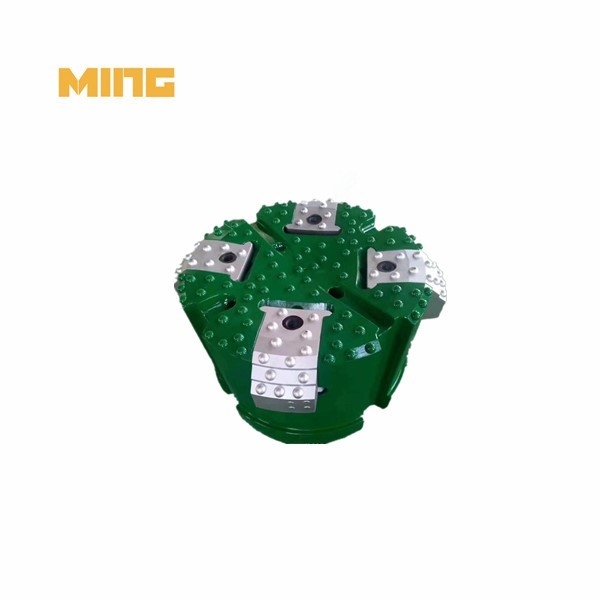

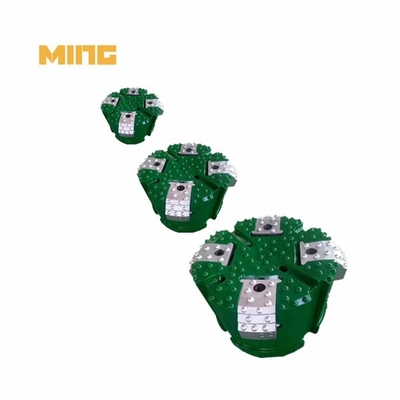

Product name: MNX Overburden Concentric Under Reaming Casing Drilling System Odex Bit With 4 Reamers For Rock Drilling
Product model: MNX Slide block wings casing bit
Materials: Alloy steel, Carbide alloy
Color: Green, Blue, Red, Gold, Black, Custom Colors.
Price term: EXW, FOB, CFR, CIF, DDU
Original: Wuxue, Made in china
Port of shipment: Wuxue, Shanghai, Yiwu, Shenzhen.
MNX Concentric Casing Drilling Bit has been meticulously crafted from high-quality raw materials to ensure superior durability and longevity. Premium hardened procedures have been implemented to enhance the bit's lifespan, making it a reliable choice for professionals.
Our full production chain guarantees a stable and prompt production lead-time, ensuring you receive your order quickly and efficiently. With our experienced senior technicians and a team of skilled workers and engineers, you can trust in the precision and high performance of our MNX Bit.
Moreover, customization is not only accepted but encouraged. We understand that every project is unique, and we are dedicated to providing tailored solutions to meet your specific requirements. Our quick and efficient service aims to exceed your expectations, ensuring a seamless experience from start to finish.
Product components:

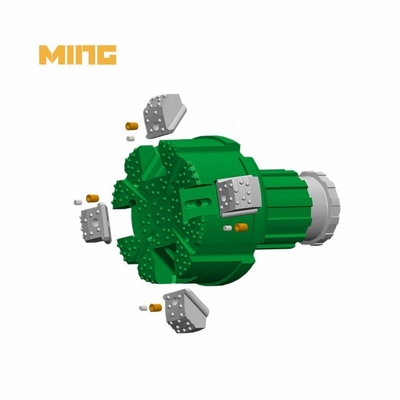

Pilot bit+4PCS Slide blocks+casing shoe
| Model | Hole dia(mm) | Weight(KG) | Closed dia(mm) | Pilot dia(mm) | Total length (mm) | Case dia(OD*ID) | Spline |
| MK-MNX365 | 432 | 350 | 365 | 381 | 1100 | 406*387 | N120,N125 |
| MK-MNX410 | 478 | 450 | 412 | 430 | 1100 | 457*435 | N125 |
| MK-MNX460 | 530 | 580 | 460 | 475 | 1100 | 508*483 | N125,SD18 |
| MK-MNX510 | 580 | 760 | 509 | 527 | 1180 | 559*533 | N180,SD18 |
| MK-MNX560 | 635 | 830 | 560 | 581 | 1180 | 610*584 | N180,SD18 |
| MK-MNX610 | 695 | 960 | 600 | 630 | 1200 | 660*632 | N240 |
| MK-MNX660 | 735 | 1180 | 656 | 681 | 1207 | 711*685 | N240 |
| MK-MNX710 | 785 | 1400 | 710 | 730 | 1207 | 762*736 | N240 |
| MK-MNX745 | 838 | 1600 | 745 | 776 | 1207 | 813*780 | N240 |
Order Guide: Casing Tube OD + Casing Tube ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Products application:
Mining, Quarrying, Tunneling, Construction, Geological Exploration, Water-well Drilling, Oilfield & Gas Industries.
Product features:
1.High quality steels materials. Steel is from TIMKEN and Tungsten carbide are YK05, or T6 from Element Six in Germany
2.Kingdrilling DTH tools are forged by advanced electron-hydraulic forging hammer.
3.Advanced heat-treatment equipment: multipurpose furnace heat treatment.
4.Completed moulding (tooling ) departments with many molds available.
5.Professional R&D team,completed quality system.
Strict Quality-Check Systems.
