Product Details:
|
| Application: | Ground Engineering | Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization |
|---|---|---|---|
| Product Name: | Rical Engineering Low Pressure Dth Hammers Down The Hole Drill Pdc Bit | Hammer Material: | High Carbon Steel |
| Hammer Type: | DTH HAMMER | After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available |
| Warranty: | 1 Year | Material: | Carbon Steel |
| Type: | Down The Hole Hammers /DTH Hammers For Sale | Certification: | ISO9001 |
| Processing Type: | Forging | Usage: | Ore Mine |
| Quality: | Top Brand China | Air Consumption: | 0.5-2.5Mpa |
| Oem: | YES | ||
| High Light: | Quarrying DTH Button Bits,CIR110 DTH Hammer Bits |
||

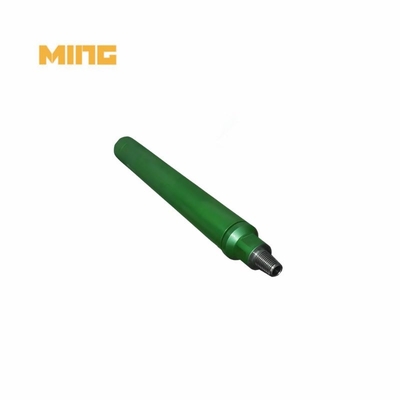

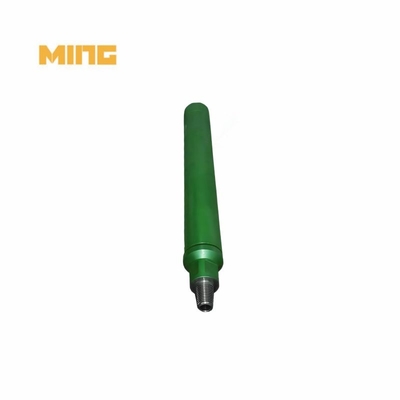

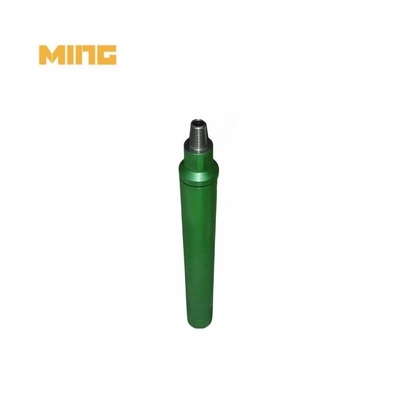

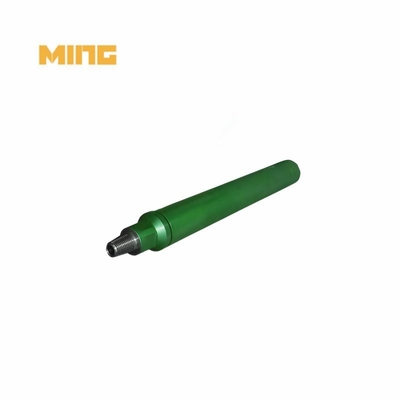

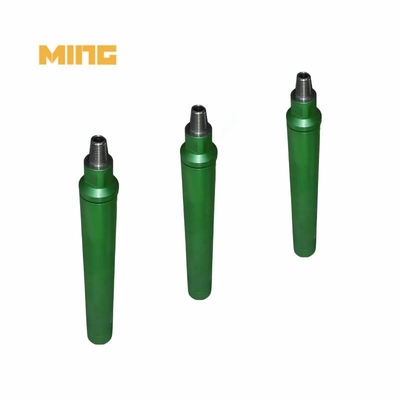

Product name: CIR110 Low Air Pressure Down The Hole Drill Hammer DTH Button Bits For Quarrying
Product category: drilling rig accessories
Matched hammer: Hammer CIR110
Connection thread: PIN 2 3/8 REG BOX
Working pressure(bar):6-12
Hole range(mm): 110-150
Outer diameter: 98
Weight(KGS): 33
At our facility, we have a team of experienced senior technicians, who are backed by years of expertise in the industry. Our skilled workers and engineers have the know-how to produce top-notch CIR110 shank DTH hammer that deliver exceptional results. We take pride in our commitment to quality and ensure that only the best products leave our factory.
Whether you require standard designs or customizations, we have you covered. Our team is dedicated to providing quick, efficient, and personalized services tailored to your unique requirements. We understand that every project is different, and we strive to meet and exceed your expectations with our attention to detail and customization options.
CIR110 shank DTH rock hammer details:
For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mining, DTH, Piling, water well drilling and blasting operations.
| Model | OD (mm) | Hole range (mm) | Length (mm) | Connection Thread | Working pressure (Bar) | Air Consumption (CFM) | Weight(KG) |
| MHCIR65 | 61 | 70 | 745 | F42*10PIN | 4~10 | 212~353 | 13 |
| MHCIR70 | 65 | 76 | 750 | F48*10PIN | 4~10 | 212~353 | 13.5 |
| MHCIR90 | 80 | 90~120 | 460 | F48*10PIN | 4~12 | 282~424 | 21 |
| MHCIR110 | 98 | 110~150 | 870 | PIN2-3/8"REG BOX | 6~12 | 282~424 | 33 |
| MHCIR130 | 112 | 130~175 | 890 | PIN2-3/8"REG BOX | 6~12 | 282~424 | 46 |
| MHCIR150 | 136 | 150~200 | 904 | F70*10BOX | 6~12 | 353~565 | 70 |
| MHCIR170 | 156 | 170~250 | 1030 | F100*28PIN | 8~14 | 424~635 | 96 |
| MHCIR200 | 182 | 200~250 | 1058 | F100*28PIN | 8~14 | 565~706 | 130 |
How to order:
Shank Type + Top Sub Thread
FAQ:
1. What is hole hammer?
Pneumatic down-the-hole (DTH) hammer is a pneumatic drilling tool using compressed air as a power source. It is suitable for drilling in pebble, gravel, and hard rock strata. It is often used in building pile foundation construction, bridge, mining, geological exploration, hydrological wells, and other fields.
2. What is percussion drilling method?
Percussion drilling is the manual drilling technique that was used in the first well drilled. In this drilling technique, a hammering bit is attached to a long cable that is then lowered into a wide open hole.
3. How does DTH system work?
DTH is an encrypted broadcast that is delivered to the consumer directly via satellite. DTH transmissions are received directly by the consumer via the tiny dish antenna. Unlike a typical cable connection, a set-top box decodes the encrypted transmission.
